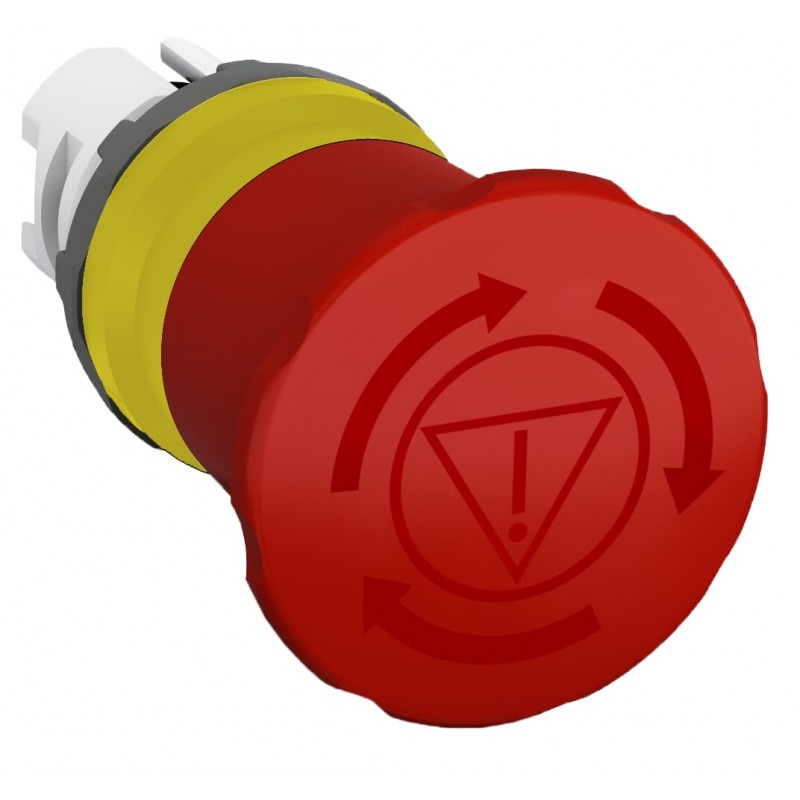

1SFA611599R1018 ABB MPET4-1018 red emergency stop button
1SFA611599R1018
ABB
MPET4-1018 red emergency stop button
MPET4-1018 Emergency stop
Command and signaling
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536900190 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimension Diagram | 1SFC151567F0001 |
| Marketing Video | 1SFC151037V0001 |
| Dimensions | |
| Product Net Width | 0.04 m |
| Product Net Height | 0.04 m |
| Product Net Depth / Length | 0.068 m |
| Product Net Weight | 0.036 kg |
| Technical | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Color | Red |
| Actuator Type | Mushroom 40 mm |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Twist release |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Mechanical Durability | 100000 cycle |
| Environmental | |
| Degree of Protection | Front IP66 |
| Terminals IP20 | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 31a33585-8f03-4ce8-bc8c-3a3925b40353 Sweden |
| Simplified SCIP | 1889c2df-0b88-4159-8653-7bc3d0947f1d Germany |
| d29b2a5f-551d-43d4-88d2-380391e944af Croatia | |
| 8749e3c6-aa2e-4e4e-a020-60ba25eee46c Hungary | |
| 5ae9827f-ee06-42a6-abf8-89865154f385 Germany | |
| 3176fb25-8df1-48cb-b067-5f8aa649cb59 Germany | |
| b98dc8e6-8780-41e3-b41f-19ee0f0578c0 France | |
| ae81fa0f-5ef5-479b-9252-efb3c730c1e8 Spain | |
| 6df5cd06-f114-4d77-bc7e-9b5840d0dd1b Belgium | |
| 9024b694-19d0-4a30-9a50-9752d9ddb941 Poland | |
| 12051efb-2379-46cb-9f37-10635f06c532 Czech Republic | |
| 4b4b7315-417b-4880-a2fd-13dac6227b86 Estonia | |
| 9a8a0174-7130-4572-96cf-c9de92a255a0 Netherlands | |
| d9dd6412-8058-4223-9714-f80df0953113 Hungary | |
| 2c2d633c-a711-43b6-a041-3be8449db3a6 Greece | |
| e28562e3-6fde-40ec-b1fa-26229f9242d2 Portugal | |
| 26f5661f-a2a7-438c-a7a8-7f2d4e8f8e78 Bulgaria | |
| 304fe069-f014-44f2-a3e4-35b4dc2a41c7 Sweden | |
| d4ee6da1-eb2b-467e-9872-8ff3fe160923 Poland | |
| b5020c22-6523-4197-97fc-bdc6b2a5a39f France | |
| b7d864af-7862-4dbc-92f3-ee9fa69c85da Poland | |
| 4bc9de68-0654-4672-a3e7-e6917817be36 Belgium | |
| af0391e3-60dd-44a6-a3ac-305191840df2 Germany | |
| 85777e63-c7d9-4415-b3d5-89c122feac63 Denmark | |
| db6c8089-b2f2-4e58-b252-72ae87f21c35 Finland | |
| bbb76438-3f45-44af-880a-07d96fad38d5 Italy | |
| b467c05f-bd7b-4440-9634-ca7dd193ff57 Norway | |
| dfbb1dd8-d542-4359-8adb-312e37da66ba Germany | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cULus Certificate | 9AKK108470A5430 |
| Declaration of Conformity - CE | 2CMT2015-005452 |
| Declaration of Conformity - UKCA | 2CMT2020-006122 |
| DNV GL Certificate | E-14107 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.135 m |
| Package Level 1 Depth / Length | 0.145 m |
| Package Level 1 Height | 0.045 m |
| Package Level 1 Gross Weight | 0.039 kg |
| Package Level 1 EAN | 7320500474181 |
| External Classifications and Standards | |
| ETIM 6 | EC001038 - Front element for mushroom push-button |
| ETIM 7 | EC001038 - Front element for mushroom push-button |
| ETIM 8 | EC001038 - Front element for mushroom push-button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39121545 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PILOT DEVICES EN.pdf | 40 Mbytes |
|
