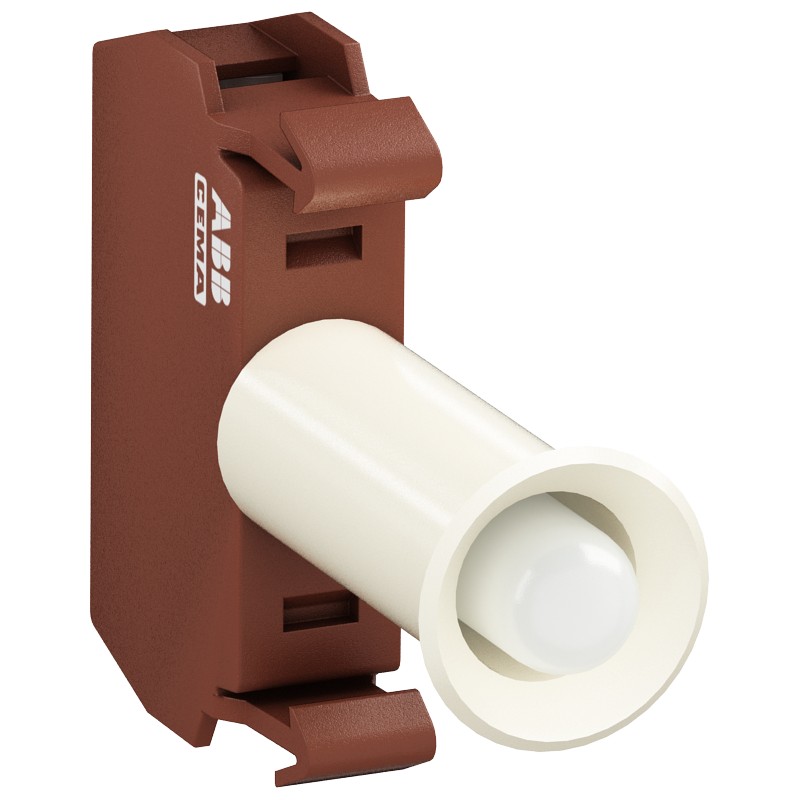

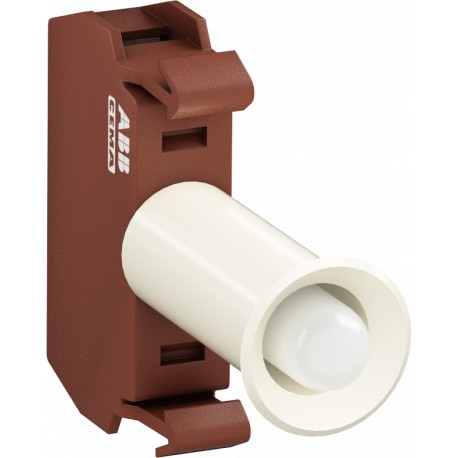

1SFA197022R1011 ABB Led Block flashing P9PLFVDR
1SFA197022R1011
ABB
Led Block flashing P9PLFVDR
P9PLFVDR LED block
Command and signaling
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8539520000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 9.8 mm |
| Product Net Height | 39.5 mm |
| Product Net Depth / Length | 56 mm |
| Product Net Weight | 0.002 kg |
| Technical | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Color | Red |
| Illumination | Illuminated |
| Lamp Type | 24 VACDC, Integrated LED |
| Function | Flashing |
| Mounting Type | Front mounting |
| Pollution Degree | 3 |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 24 V ACDC V |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm² |
| Flexible with Ferrule 2 x 0.75...2.5 mm² | |
| Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | |
| Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | |
| Flexible 1 x 0.75 ... 2.5 mm² | |
| Flexible 2 x 0.75 ... 2.5 mm² | |
| Solid 1 x 0.75...2.5 mm² | |
| Solid 2 x 0.75...2.5 mm² | |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | 1x 18...14 AWG |
| 2x 18...14 AWG | |
| Environmental | |
| Degree of Protection | Terminals IP20 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005874 |
| CQC Certificate | CQC2019010304237361 |
| CSA Certificate | 2CMT2019-005868 |
| cULus Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CCC | 2020980304001528 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 180 mm |
| Package Level 1 Gross Weight | 0.002 kg |
| Package Level 1 EAN | 7320500523919 |
| External Classifications and Standards | |
| ETIM 7 | EC000204 - Lamp holder block for control circuit devices |
| ETIM 8 | EC000204 - Lamp holder block for control circuit devices |
| eClass | V11.0 : 27371209 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 2314837 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PILOT DEVICES EN.pdf | 40 Mbytes |
|
