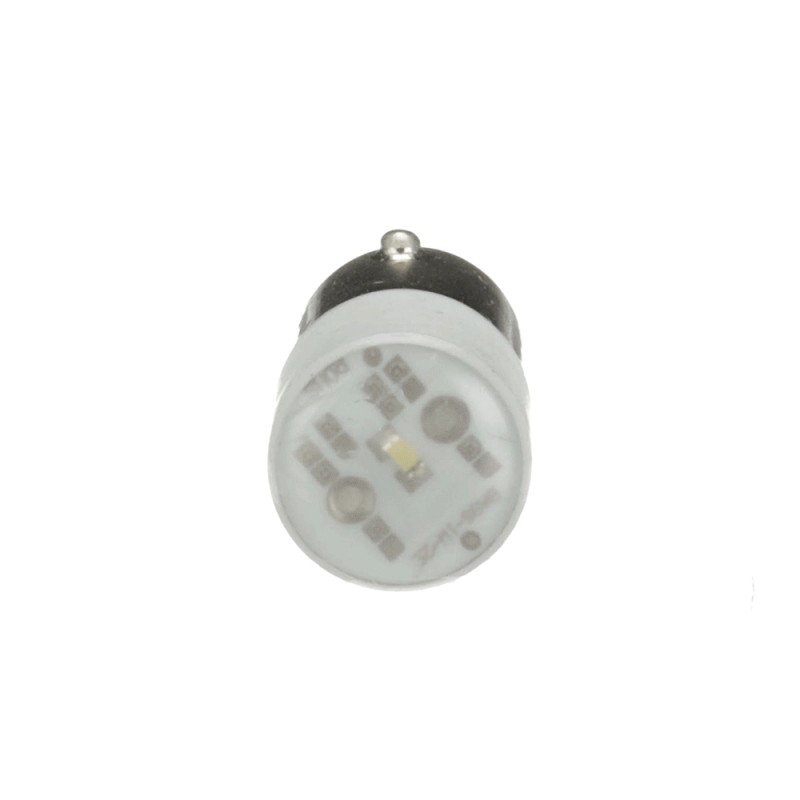

1SFA187175R1035 ABB 48V LED LAMP White
1SFA187175R1035
ABB
48V LED LAMP - White
BA9S48LEDB LED bulb
Lamps > Indication- and signalling lamp
Command and signaling
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8539520000 |
| Product Main Type | BA9S |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 11 mm |
| Product Net Depth / Length | 25.5 mm |
| Product Net Height | 11 mm |
| Product Net Weight | 0.002 kg |
| Technical | |
| Color | White |
| Function | BA9S socket |
| Illumination | Illuminated |
| Lamp Type | LED 48 V ACDC |
| Rated Current (In) | 15 mA |
| Rated Operational Voltage | 48 V AC/DC |
| Service Life | 100000 HUR |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508 |
| Environmental | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005872 |
| CQC Certificate | CQC2013010304650811 |
| CSA Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CCC | 2020980304001860 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | bag 5 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Gross Weight | 0.01 kg |
| Package Level 1 EAN | 7320500518144 |
| External Classifications and Standards | |
| eClass | V11.0 : 27110631 |
| E-Number (Finland) | 2307577 |
| ETIM 6 | EC000399 - Indication- and signalling lamp |
| ETIM 7 | EC000399 - Indication- and signalling lamp |
| ETIM 8 | EC000399 - Indication- and signalling lamp |
| ETIM 9 | EC000399 - Indication- and signalling lamp |
| IDEA Granular Category Code (IGCC) | 3058 >> Light emitting diode LED lamp |
| UNSPSC | 39101628 |
| Feature Name | Feature Value |
|---|---|
| Lamp voltage (EF008856) | 48 V |
| Socket (EF000042) | BA9s |
| Technology (EF002370) | LED |
| Halogen (EF002365) | No |
| Krypton (EF002329) | No |
| Xenon (EF008331) | No |
| Colour (EF000007) | White |
| Colour temperature (EF000103) | 0 K |
| Diameter (EF000551) | 0 mm |
| Total length (EF000369) | 0 mm |
| Suitable for torches (EF002359) | Yes |
| Suitable for pointer (EF002360) | Yes |
| Suitable for round flashing luminaire (EF012517) | Yes |
| Nominal current (EF000001) | 15 mA |
| Average nominal lifespan (EF008342) | 100000 h |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PILOT DEVICES EN.pdf | 40 Mbytes |
|
| 1SFA187175R1035 1SFA187175R1035 EN_1SFA187175R1035.pdf | 145 Kbytes |
|
