ABBCommand and signaling1SFA184740R9006 ABB JOYSTICK P9MMB4F

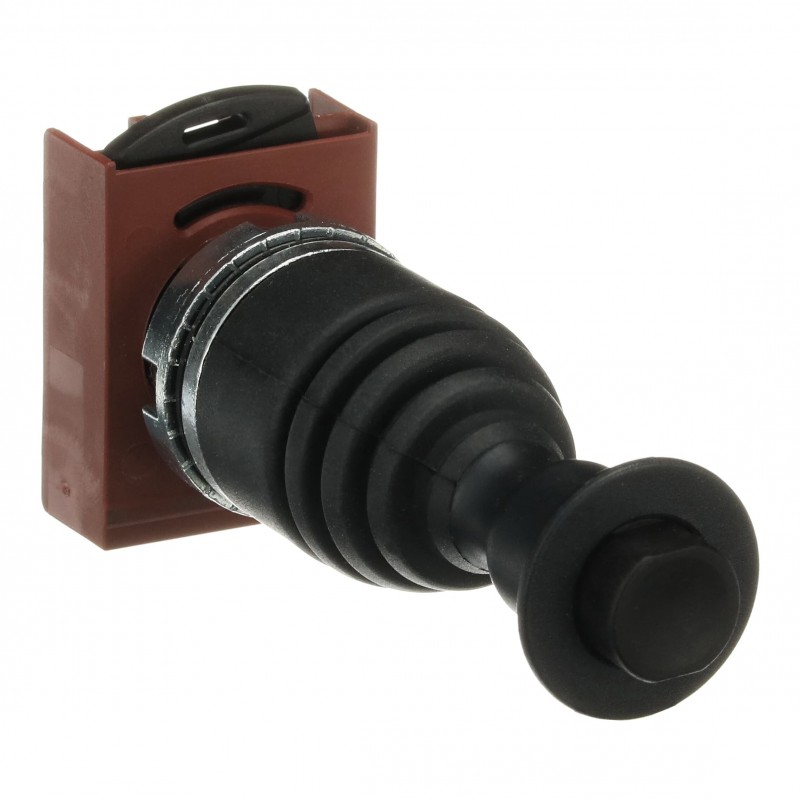

ABB 1SFA184740R9006 1SFA184740R9006 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SFA184740R9006 ABB JOYSTICK P9MMB4F

Reference: 1SFA184740R9006

Manufacturer: ABB

Description:

JOYSTICK#P9MMB4F
P9MMB4F Joystick

Categories:

  • Low-voltage industrial components > Control switch, Joystick
  • ABB > Command and signaling

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 112,42 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536501990
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width29.7 mm
Product Net Height44.5 mm
Product Net Depth / Length98.6 mm
Product Net Weight0.089 kg
Technical
Ambient Air TemperatureOperation -30 ... 70 °C
Storage -40 ... +70 °C
ColorBlack
Actuator TypeJoystick with latching function
Bezel MaterialMetal
IlluminationNon-illuminated
FunctionMaintained
Sub-Function4-position
Maintained PositionsA, B, C, D, E
Enclosure Type NEMAType1
Type12
Type13
Type3
Type3R
Type3S
Type4
Type4X
Mechanical Durability0.5 million
Environmental
Degree of ProtectionFront IP66
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV Certificate2CMT2019-005867
CB Certificate2CMT2019-005872
CSA Certificate2CMT2019-005868
Declaration of Conformity - CE2CMT2019-005862
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate2CMT2019-005876
RINA Certificate2CMT2019-005866
UL Certificate2CMT2019-005868
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width41 mm
Package Level 1 Depth / Length113 mm
Package Level 1 Height41 mm
Package Level 1 Gross Weight0.089 kg
Package Level 1 EAN7320500522714
External Classifications and Standards
ETIM 7EC000632 - Control switch, Joystick
ETIM 8EC000632 - Control switch, Joystick
eClassV11.0 : 27371404
UNSPSC39122227
IDEA Granular Category Code (IGCC)5280 >> Joystick switch or control
E-Number (Finland)2314789
E-Number (Sweden)3705889

ETIM for 1SFA184740R9006 Low-voltage industrial controls and switchgear (EC000632)

Feature nameCentre mounting, hole diameter (EF002424)
Feature value22 mm
Feature nameJoy stick length (EF006524)
Feature value72.6 mm
Feature nameNumber of actuation directions (EF002425)
Feature value4
Feature nameNumber of normally open contacts per actuation direction (EF002427)
Feature value0
Feature nameNumber of normally closed contacts per actuation direction (EF008263)
Feature value0
Feature nameNumber of make-and-break contacts per direction (EF005599)
Feature value0
Feature nameWith retraction in 0-position (EF002428)
Feature valueNo
Feature nameLocking in 0-position (EF006283)
Feature valueYes
Feature nameWith front ring (EF006014)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66

DATASHEET - PDF

Title
Size
Type
1SFA184740R9006 1SFA184740R9006 EN_1SFA184740R9006.pdf
247 Kbytes
PDF CATALOG PILOT DEVICES EN
40 Mbytes
