ABBCommand and signaling1SFA184635R9109 ABB SWITCH SELECTOR P9MSLZ3A

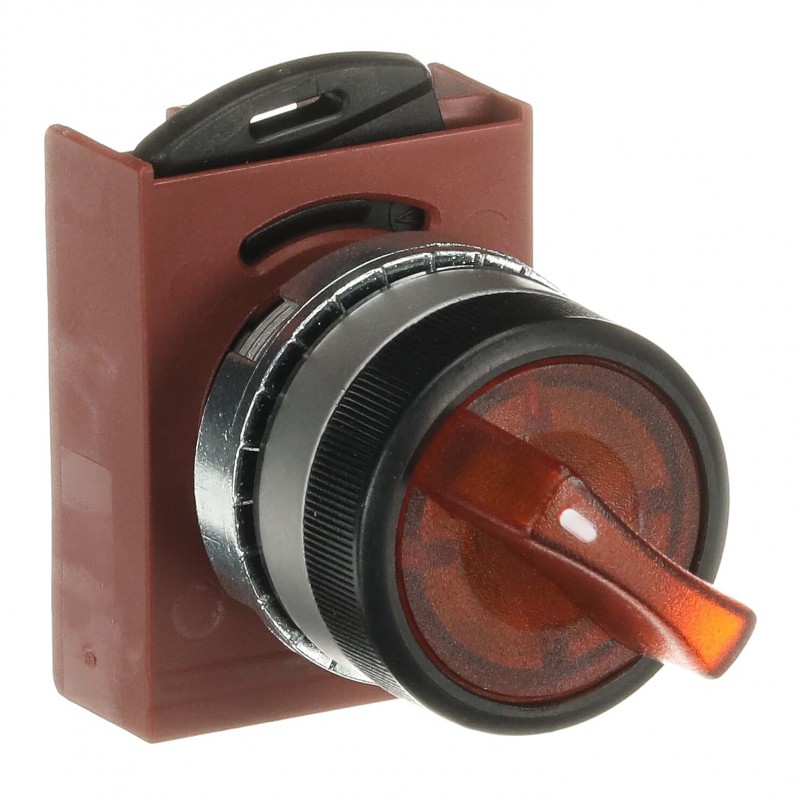

ABB 1SFA184635R9109 1SFA184635R9109 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

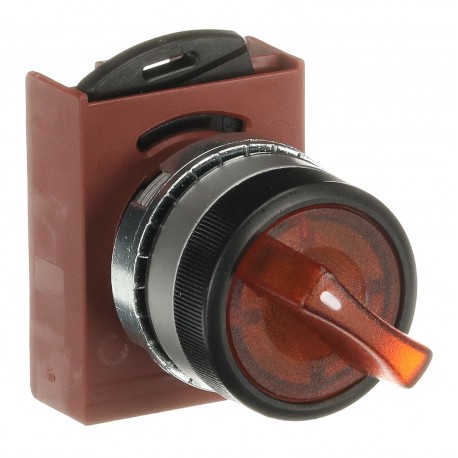

1SFA184635R9109 ABB SWITCH SELECTOR P9MSLZ3A

Reference: 1SFA184635R9109

Manufacturer: ABB

Description:

SWITCH SELECTOR#P9MSLZ3A
SELECTOR SWITCH 3-POS ILLUMINATED SHORT HANDLE ORANGE MOMENTARY

Categories:

  • Low-voltage industrial components > Front element for selector switch
  • ABB > Command and signaling

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 16,85 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

b'

General Information

Extended Product Type:
P9MSLZ3A
Product ID:
1SFA184635R9109
EAN:
7320500522400
Catalog Description:
SELECTOR SWITCH P9MSLZ3A
Long Description:
SELECTOR SWITCH 3-POS ILLUMINATED SHORT HANDLE ORANGE MOMENTARY
\n

Ordering

EAN:
7320500522400
Minimum Order Quantity:
10 piece
Customs Tariff Number:
8536501990

Dimensions

Product Net Width:
29.7 mm
Product Net Height:
44.5 mm
Product Net Depth / Length:
80.7 mm
Product Net Weight:
0.059 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
41 mm
Package Level 1 Height:
41 mm
Package Level 1 Depth / Length:
80 mm
Package Level 1 Gross Weight:
0.059 kg
Package Level 1 EAN:
7320500519660
Package Level 2 Units:
box 10 piece
Package Level 2 Width:
90 mm
Package Level 2 Height:
85 mm
Package Level 2 Depth / Length:
220 mm

Environmental

RoHS Status:
Following EU Directive 2015/863 July 22, 2019 (RoHS 3)

Additional Information

Actuator Type:
Short handle
Bezel Material:
Satin Chrome Metal
Color:
Orange
Degree of Protection:
Front IP66
Function:
Momentary
Illumination:
Illuminated
Maintained Positions:
B
Product Main Type:
P9MS
Product Name:
Selector Switch
Spring Return From:
A and C to B
Sub-Function:
3-position
Sub-Function 2:
CAM Z

Certificates and Declarations (Document Number)

BV Certificate:\n2CMT2019-005867
CB Certificate:\n2CMT2019-005872
CCC Certificate:\n2CMT2019-005869
CSA Certificate:\n2CMT2019-005868
Data Sheet, Technical Information:\n1SFC151007C02__
Declaration of Conformity - CE:\n2CMT2019-005862
DNV GL Certificate:\n2CMT2019-005876
Instructions and Manuals:\n1SFC151011M0201
RINA Certificate:\n2CMT2019-005866
RoHS Information:\n2CMT2019-005862
UL Certificate:\n2CMT2019-005868

Classifications

ETIM 7:
EC000222 - Front element for selector switch
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

ETIM for 1SFA184635R9109 Low-voltage industrial controls and switchgear (EC000222)

Feature nameNumber of switch positions (EF000231)
Feature value3
Feature nameType of control element (EF006976)
Feature valueShort thumb-grip
Feature nameSuitable for lighting (EF001142)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueOrange
Feature nameColour indicator light cap (EF007165)
Feature valueOther
Feature nameHole diameter (EF000079)
Feature value22 mm
Feature nameSwitching function latching (EF007447)
Feature valueNo
Feature nameSpring-return (EF001407)
Feature valueYes
Feature nameWith front ring (EF006014)
Feature valueYes
Feature nameMaterial front ring (EF005972)
Feature valueMetal
Feature nameColour front ring (EF002429)
Feature valueChrome
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP66
Feature nameDegree of protection (NEMA) (EF011959)
Feature value4X

DATASHEET - PDF

Title
Size
Type
PDF CATALOG PILOT DEVICES EN
40 Mbytes
