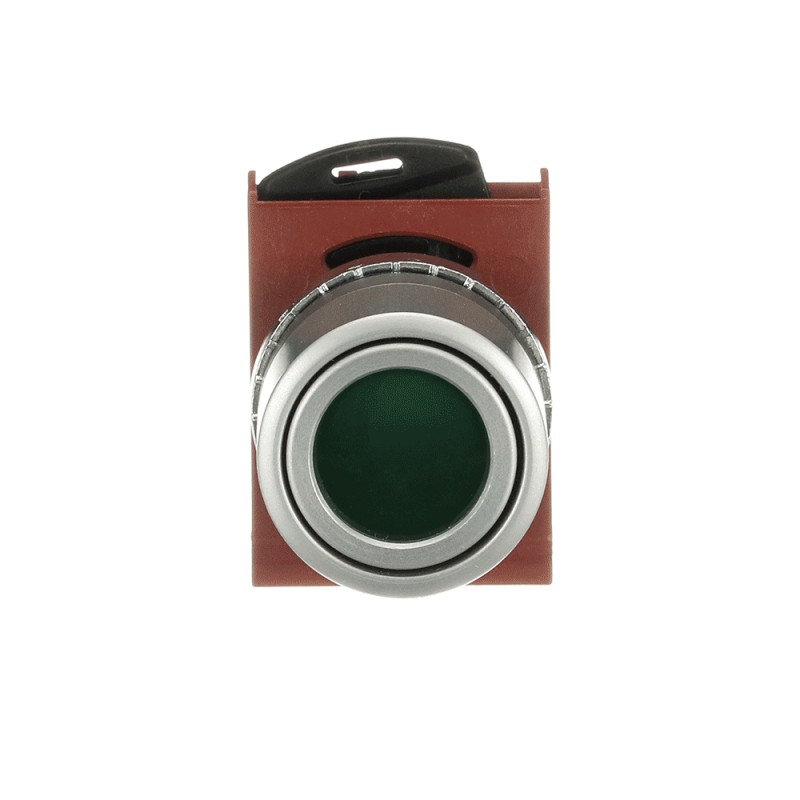

1SFA184522R9102 ABB Push button P9MPLVGV
1SFA184522R9102
ABB
Push button P9MPLVGV
P9MPLVGV Pushbutton
Low-voltage industrial components > Front element for push button
Command and signaling
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 29.7 mm |
| Product Net Height | 44.5 mm |
| Product Net Depth / Length | 46.2 mm |
| Product Net Weight | 0.055 kg |
| Technical | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Color | Green |
| Actuator Type | Flush |
| Bezel Material | Metal |
| Illumination | Illuminated |
| Function | Momentary |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3 | |
| Type3R | |
| Type3S | |
| Type4 | |
| Type4X | |
| Environmental | |
| Degree of Protection | Front IP66 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005872 |
| CSA Certificate | 2CMT2019-005868 |
| cULus Certificate | 1SAC200090H0001 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 41 mm |
| Package Level 1 Depth / Length | 80 mm |
| Package Level 1 Height | 41 mm |
| Package Level 1 Gross Weight | 0.055 kg |
| Package Level 1 EAN | 7320500522042 |
| External Classifications and Standards | |
| ETIM 7 | EC000221 - Front element for push button |
| ETIM 8 | EC000221 - Front element for push button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| IDEA Granular Category Code (IGCC) | 5212 >> Push button for distribution board |
| E-Number (Finland) | 2314736 |
| E-Number (Sweden) | 3705881 |
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Green |
| Number of command positions (EF001372) | 1 |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22 mm |
| Type of button (EF001546) | Flat |
| Suitable for lighting (EF001142) | Yes |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP), front side (EF003118) | IP66 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PILOT DEVICES EN.pdf | 40 Mbytes |
|
