ABBCommand and signaling1SFA184521R9101 ABB Push button P9MPLRGV

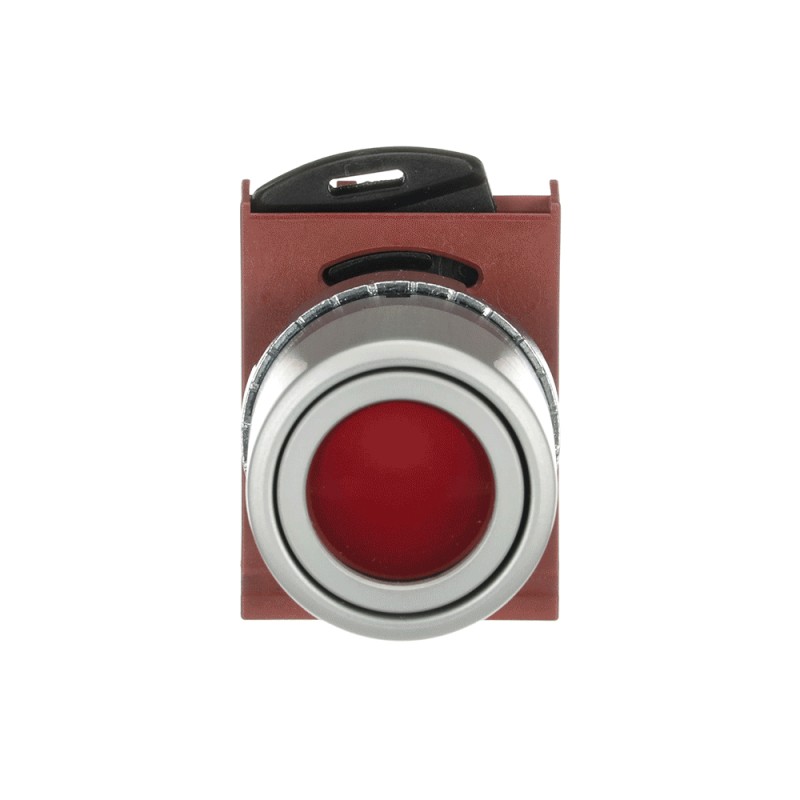

ABB 1SFA184521R9101 1SFA184521R9101 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

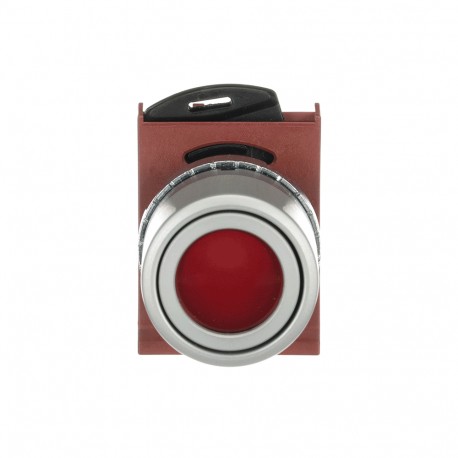

1SFA184521R9101 ABB Push button P9MPLRGV

Reference: 1SFA184521R9101

Manufacturer: ABB

Description:

Push button P9MPLRGV
P9MPLRGV Pushbutton

Categories:

  • Low-voltage industrial components > Front element for push button
  • ABB > Command and signaling

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 55,49 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width29.7 mm
Product Net Height44.5 mm
Product Net Depth / Length46.2 mm
Product Net Weight0.067 kg
Technical
Ambient Air TemperatureOperation -30 ... 70 °C
Storage -40 ... +70 °C
ColorRed
Actuator TypeFlush
Bezel MaterialMetal
IlluminationIlluminated
FunctionMomentary
Enclosure Type NEMAType1
Type12
Type13
Type3
Type3R
Type3S
Type4
Type4X
Environmental
Degree of ProtectionFront IP66
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV Certificate2CMT2019-005867
CB Certificate2CMT2019-005872
CSA Certificate2CMT2019-005868
cULus Certificate1SAC200090H0001
Declaration of Conformity - CE2CMT2019-005862
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate2CMT2019-005876
RINA Certificate2CMT2019-005866
UL Certificate2CMT2019-005868
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width41 mm
Package Level 1 Depth / Length80 mm
Package Level 1 Height41 mm
Package Level 1 Gross Weight0.067 kg
Package Level 1 EAN7320500522035
External Classifications and Standards
ETIM 7EC000221 - Front element for push button
ETIM 8EC000221 - Front element for push button
eClassV11.0 : 27371210
UNSPSC39122216
IDEA Granular Category Code (IGCC)5212 >> Push button for distribution board
E-Number (Finland)2314735
E-Number (Sweden)3705888

ETIM for 1SFA184521R9101 Low-voltage industrial controls and switchgear (EC000221)

Feature nameColour button (EF000190)
Feature valueRed
Feature nameNumber of command positions (EF001372)
Feature value1
Feature nameConstruction type lens (EF006253)
Feature valueRound
Feature nameHole diameter (EF000079)
Feature value22 mm
Feature nameType of button (EF001546)
Feature valueFlat
Feature nameSuitable for lighting (EF001142)
Feature valueYes
Feature nameWith protective cover (EF005500)
Feature valueNo
Feature nameLabelled (EF001537)
Feature valueNo
Feature nameSwitching function latching (EF007447)
Feature valueNo
Feature nameSpring-return (EF001407)
Feature valueYes
Feature nameWith front ring (EF006014)
Feature valueYes
Feature nameMaterial front ring (EF005972)
Feature valueMetal
Feature nameColour front ring (EF002429)
Feature valueChrome
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP66
