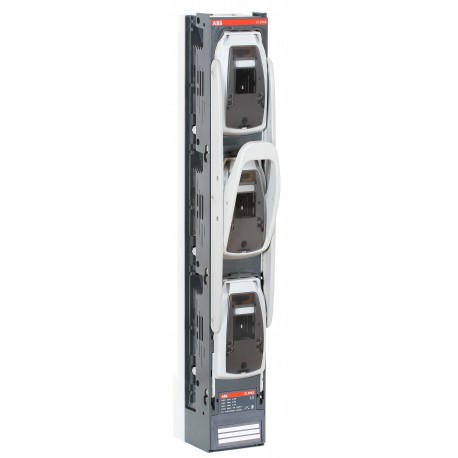

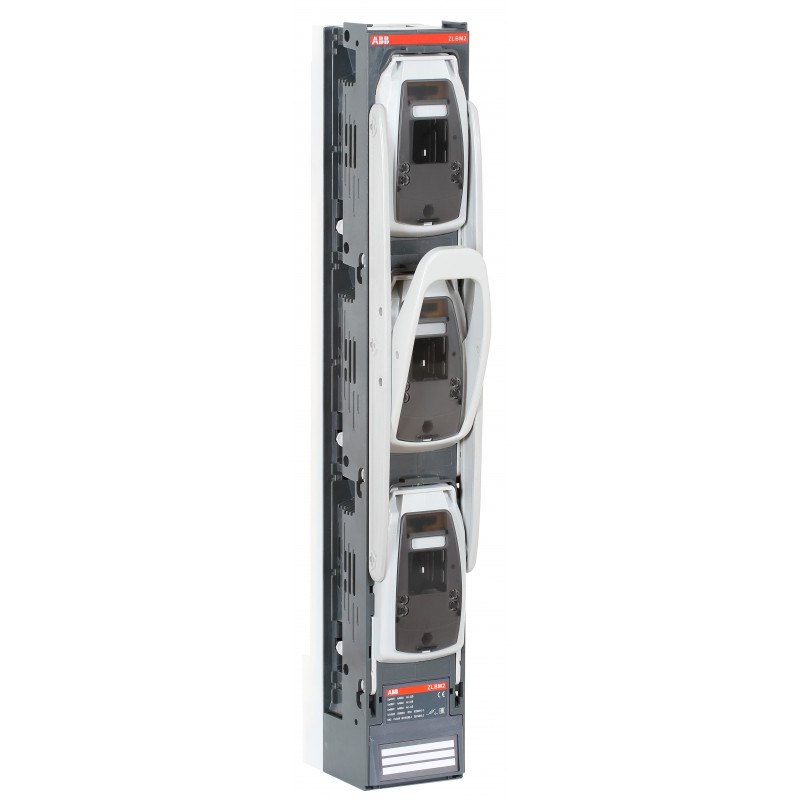

1SEP620023R3000 ABB ZHBM3-3P-M12 fuse disconnect
1SEP620023R3000
ABB
ZHBM3-3P-M12 fuse disconnect
ZHBM3-3P-M12 Fuse switch disconnector
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB site meets waste-to-landfill target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste to Landfill Validation Available | |
| End-of-life disassembly instructions | 9AKK108470A6421 |
| Environmental Product Declaration - EPD | 9AKK108469A4930 |
| Product recyclability rate according to EN45555 | 76,90 % |
| Material Compliance | |
| Conflict Minerals Notification Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 22 July 2019 |
| Popular Downloads | |
| Technical data, technical information | 1SEC312023D0201 |
| Instructions and manuals | 9AKK107991A1277 |
| Mechanical drawings | 9AKK108466A1514 |
| Electrical Plans | 9AKK108466A4607 |
| 9AKK108466A4606 | |
| Environmental Product Declaration - EPD | 9AKK108469A4930 |
| Environment | |
| Degree of protection | Front IP30 |
| classification | |
| Minimum order quantity | 1 piece |
| Tariff code | 85389099 |
| Country of origin | Bulgaria |
| Dimensions | |
| Product Frame Size | High |
| Product Width | 99 mm |
| Product height | 662 mm |
| Product length | 218 mm |
| Product Weight | 5 kg |
| Packaging Information | |
| Packaging Level 1 Units | 1 piece |
| Packaging Level 1 Width | 99 mm |
| Level 1 Long Packaging | 218 mm |
| Packaging Level 1 High | 662 mm |
| Packaging Level 1 Weight | 5.2 kg |
| EAN Level 1 Packaging | 7025840088417 |
| Technique | |
| Degree of protection | Front IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Distance between phases | 185 mm |
| Electronic Fuse Control | No |
| Fuse Size | NH3 |
| Fuse System | DIN |
| Handle Type | 3P |
| Number of poles | 3P |
| Power loss | at Rated Load 97.2 W |
| Rated current (In) | Main Circuit 630 A |
| Nominal impulse-supported voltage (Uimp) | Main Circuit 8 kV |
| Rated insulation voltage (Ui) | 1000 V |
| Rated Operating Current AC-20B | (690 V) 630 A |
| (500 V) 630 A | |
| (400 V) 630 A | |
| (800 V) 400 A | |
| Rated Operating Current AC-21B (Iand) | (690 V) 630 A |
| (500 V) 630 A | |
| (400 V) 630 A | |
| (800 V) 400 A | |
| Rated Operating Current AC-22B (Iand) | (400 V) 630 A |
| (500 V) 630 A | |
| (690 V) 630 A | |
| (800 V) 400 A | |
| (1000 V) 630 A | |
| Rated Operating Current AC-23B (Iand) | (400V) 630 A |
| Nominal operating voltage | Main Circuit 1000 V AC |
| Standards | IEC60947-3 |
| Terminal Type | Bolt |
| Tightening torque | 25 N·m |
| UL/CSA Technique | |
| Tightening torque | 25 N·m |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE | 1SEP500046P0001 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| E-class | V11.1 : 27371401 |
| WEEE Category | 4. Large equipment (any external dimension more than 50cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | No |
| Version as safety switch (EF006985) | No |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 630 A |
| Conditioned rated short-circuit current Iq (EF001444) | 120 kA |
| Suitable for fuses (EF006692) | NH3 |
| Number of poles (EF001391) | 3 |
| With error protection (EF007384) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Below |
| Equipped with connectors (EF011696) | No |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Other |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
| Degree of protection (IP), front side (EF003118) | IP30 |
