1SEP620010R3020 ABB ZLBM00-3P-V
1SEP620010R3020
ABB
ZLBM00-3P-V

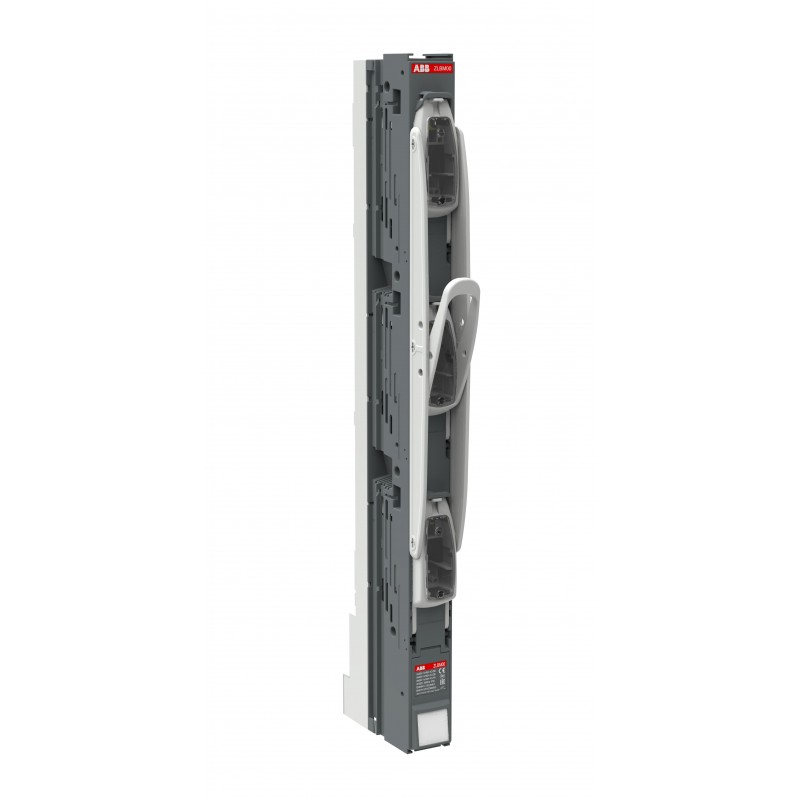

ZLBM00-3P-V Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| End Of Life Disassembling Instructions | 9AKK108470A6421 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SEC312023D0201 |
| Instructions and Manuals | 9AKK107991A6133 |
| Mechanical Drawings | 9AKK108466A1529 |
| Electrical Drawings | 9AKK108466A4607 |
| 9AKK108466A4606 | |
| Environmental | |
| Degree of Protection | Front IP30 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Frame Size | Low |
| Product Net Width | 48.5 mm |
| Product Net Height | 662 mm |
| Product Net Depth / Length | 181 mm |
| Product Net Weight | 1.97 kg |
| Container Information | |
| Package Level 1 Units | shrink-wrap 1 piece |
| Package Level 1 Width | 48.5 mm |
| Package Level 1 Depth / Length | 181 mm |
| Package Level 1 Height | 662 mm |
| Package Level 1 Gross Weight | 2.1 kg |
| Package Level 1 EAN | 7025840088165 |
| Technical | |
| Degree of Protection | Front IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Distance Between Phases | 185 mm |
| Electronic Fuse Monitoring | No |
| Fuse Size | NH00 |
| Fuse System | DIN |
| Handle Type | 3P |
| Number of Poles | 3P |
| Power Loss | at Rated Load 33.6 W |
| Rated Current (In) | Main Circuit 160 A |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-20B | (690 V) 125 A |
| (500 V) 160 A | |
| (400 V) 160 A | |
| Rated Operational Current AC-21B (Ie) | (690 V) 125 A |
| (500 V) 160 A | |
| (400 V) 160 A | |
| Rated Operational Current AC-22B (Ie) | (400 V) 160 A |
| (500 V) 160 A | |
| (1000 V) 125 A | |
| Rated Operational Current AC-23B (Ie) | (400V) 160 A |
| Rated Operational Voltage | Main Circuit 1000 V AC |
| Standards | IEC60947-3 |
| Terminal Type | V-Clamp |
| Tightening Torque | 10 N·m |
| Wire Stripping Length | 22 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 22 mm |
| Tightening Torque | 10 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SEP500046P0001 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001041 - End bracket for terminal block |
| eClass | V11.1 : 27371401 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660411 |
