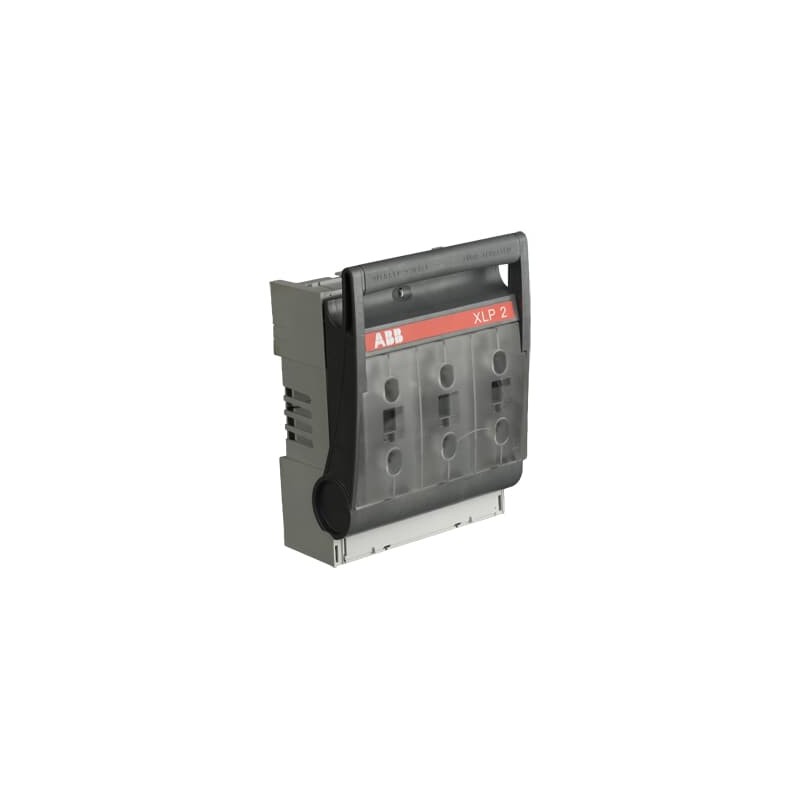

ABB 1SEP101892R0001 1SEP101892R0001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

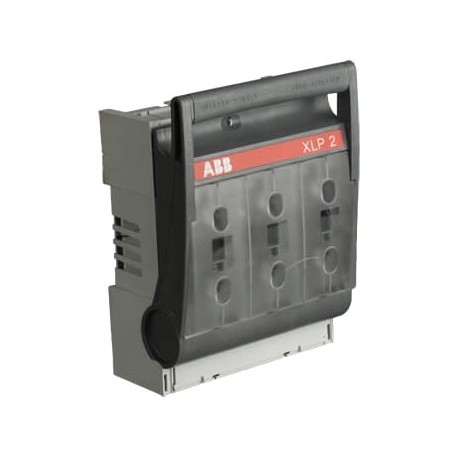

1SEP101892R0001 ABB XLP DESC. 2 3P 400A WITHOUT TERM.

Reference: 1SEP101892R0001

Manufacturer: ABB

Description:

XLP DESC. 2 3P 400A WITHOUT TERM.

XLP2 Fuse Switch Disconnector

Categories:

Low-voltage industrial components > Fuse switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 329,63 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 7-8 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

ABB EcoSolutions
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	No non-hazardous waste is sent to a landfill
	UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions	9AKK108469A3432
Environmental Product Declaration - EPD	9AKK108468A2201
	9AKK108468A2281
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 94.1 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information	1SEC312012D0201
Instructions and Manuals	No Instructions and Manuals needed
Environmental Product Declaration - EPD	9AKK108468A2201
	9AKK108468A2281
Environmental
Degree of Protection	IP30
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85389099
Country or Territory of Origin	Bulgaria
	China
Dimensions
Product Net Width	210 mm
Product Net Height	290 mm
Product Net Depth / Length	130 mm
Product Net Weight	2.3 kg
Container Information
Package Level 1 Units	shrink-wrap 1 piece
Package Level 1 Width	210 mm
Package Level 1 Depth / Length	130 mm
Package Level 1 Height	290 mm
Package Level 1 Gross Weight	2.5 kg
Package Level 1 EAN	7025840016861
Package Level 2 EAN	7025840016861
Technical
Degree of Protection	IP30
Device Type Manager (DTM)	Fuseswitchdisconnector
Electronic Fuse Monitoring	No
Fuse Size	NH2
Fuse System	DIN
Handle Type	Front cover 3P
Mounting Type	Baseplate
Number of Poles	3P
Power Loss	at Rated Load 13 W
Rated Conditional Short-Circuit Current (I_nc)	(690 V) 50 kiloampere rms
Rated Current (I_n)	400 A
Rated Frequency (f)	Main Circuit 50/60 Hz
Rated Impulse Withstand Voltage (U_imp)	Main Circuit 8 kV
Rated Operational Current AC-21B (I_e)	(690 V) 315 A
Rated Operational Current AC-22B (I_e)	(500 V) 400 A
	(800 V) 400 A
Rated Operational Voltage	500 V AC
	690 V AC
Rated Voltage (U_r)	500 V AC
	690 V AC
Special Functions	Not Included
Standards	IEC60947-3
	GB/T14048.3
Terminal Type	Lug terminals
Certificates and Declarations
Declaration of Conformity - CE	1SEP500050P0001
External Classifications and Standards
Object Classification Code	S
ETIM 9	EC001040 - Fuse switch disconnector
ETIM 10	EC001040 - Fuse switch disconnector
eClass	V11.1 : 27371401
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden)	3171956

ETIM for 1SEP101892R0001 Low-voltage industrial controls and switchgear (EC001040)

Feature nameVersion as main switch (EF006981)

Feature valueYes

Feature nameVersion as safety switch (EF006985)

Feature valueYes

Feature nameMax. rated operation voltage Ue AC (EF007355)

Feature value690 V

Feature nameRated permanent current Iu (EF001389)

Feature value315 A

Feature nameConditioned rated short-circuit current Iq (EF001444)

Feature value50 kA

Feature nameSuitable for fuses (EF006692)

Feature valueNH2

Feature nameNumber of poles (EF001391)

Feature value3

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameEquipped with connectors (EF011696)

Feature valueYes

Feature nameSuitable for floor mounting (EF007243)

Feature valueNo

Feature nameSuitable for front mounting (EF007246)

Feature valueNo

Feature nameSuitable for busbar mounting (EF007259)

Feature valueYes

Feature nameType of control element (EF006976)

Feature valueOther

Feature namePosition control element (EF009410)

Feature valueFront

Feature nameMotor drive optional (EF007386)

Feature valueNo

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo

Feature nameDegree of protection (IP), front side (EF003118)

Feature valueIP30
