> ABB>Molded Case Circuit Breakers ≤ 250 A Xtmax>1SDA107708R1 ABB XT4X 160 MA 32 Im 160...320 3p F F
ANUNCIAR
Previous Product Next Product
1SDA107708R1 ABB XT4X 160 MA 32 Im 160...320 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

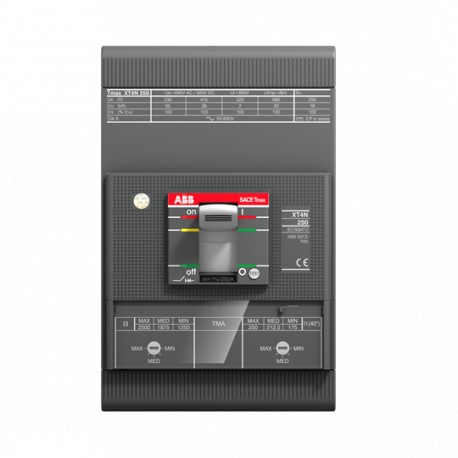

1SDA107708R1 ABB XT4X 160 MA 32 Im 160...320 3p F F

1SDA107708R1

ABB

XT4X 160 MA 32 Im=160...320 3p F F

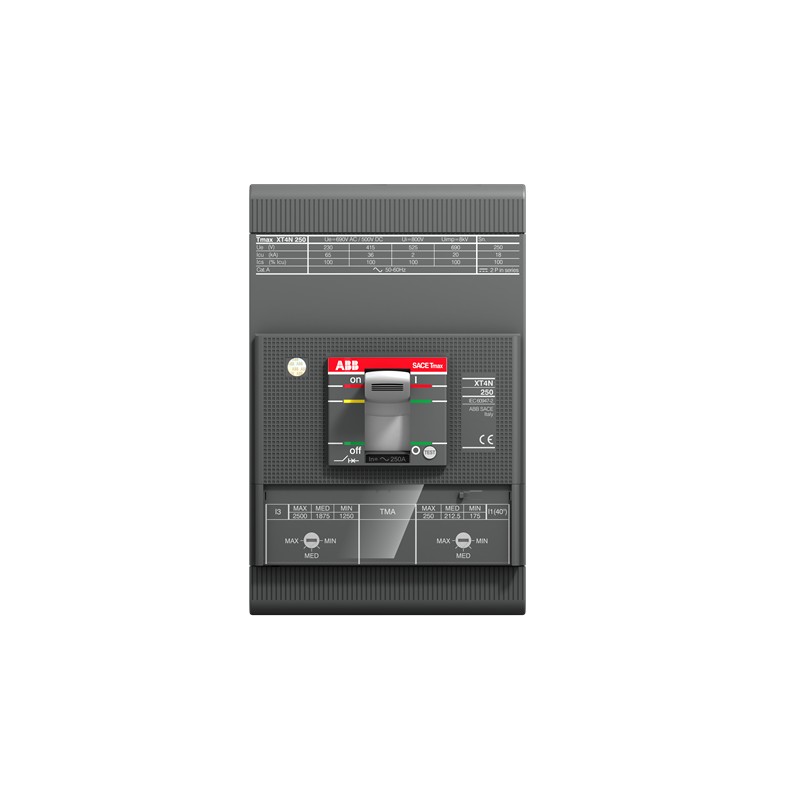

C.BREAKER TMAX XT4X 160 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MA Iu 10 A I3=160...320 A

More details


Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection

Molded Case Circuit Breakers ≤ 250 A Xtmax

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $1,033.45
Unit price: $1,033.45
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
XT4X 160 MA 32 Im=160...320 3p F F
Product ID:
1SDA107708R1
EAN:
8056221028509
Catalog Description:
XT4X 160 MA 32 Im=160...320 3p F F
Long Description:
C.BREAKER TMAX XT4X 160 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MA Iu 10 A I3=160...320 A
\n

Additional Information

CN8:
85362090
Circuit Breaker Type to be Associated:
Motor Protection
Country of Origin:
Italy (IT)
Current Type:
AC/DC
Customs Tariff Number:
85362090
Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210099D0205
Declaration of Conformity - CE:\n9AKK106713A5529
EAN:
8056221028509
ETIM 6:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 7:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Electrical Durability:
120 cycles per hour

10000 cycle
Instructions and Manuals:\n1SDH000722R0001
1SDH000721R0505
Invoice Description:
XT4X 160 MA 32 Im=160...320 3p F F
Mechanical Durability:
240 cycles per hour

25000 cycle
Minimum Order Quantity:
1 piece
Number of Poles:
3
Object Classification Code:
Q
Order Multiple:
1 piece
Package Level 1 Depth / Length:
168 mm
Package Level 1 EAN:
8056221028509
Package Level 1 Gross Weight:
2.5 kg
Package Level 1 Height:
210 mm
Package Level 1 Units:
1 piece
Package Level 1 Width:
145 mm
Power Loss:
at Rated Operating Conditions per Pole 4.4 W
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Net Depth / Length:
82.5 mm
Product Net Height:
160 mm
Product Net Weight:
2.05 kg
Product Net Width:
105 mm
Product Type:
CB
Rated Current (In):
32 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
160…3200 A
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC

750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 200 kA

(230 V AC) 200 kA

(240 V AC) 200 kA

(380 V AC) 200 kA

(415 V AC) 200 kA

(440 V AC) 200 kA

(500 V AC) 100 kA

(525 V AC) 100 kA

(690 V AC) 100 kA
Rated Short-Circuit Making Capacity (Icm):
(220 V AC) 420 kA

(230 V AC) 420 kA

(240 V AC) 420 kA

(389 V AC)  315 kA

(415 V AC) 315 kA

(440 V AC) 315 kA

(500 V AC) 147 kA

(525 V AC) 105 kA

(690 V AC) 52.5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 200 kA

(230 V AC) 200 kA

(240 V AC) 200 kA

(380 V AC) 200 kA

(415 V AC) 200 kA

(440 V AC) 200 kA

(500 V AC) 100 kA

(525 V AC) 100 kA

(690 V AC) 100 kA

(250 V DC) 2 Poles in Series 100 kA

(500 V DC) 2 Poles in Series 100 kA

(500 V DC) 3 Poles in Series 100 kA

(750 V DC) 3 Poles in Series 70 kA
Rated Uninterrupted Current (Iu):
160 A
Release:
MA
Release Type:
M
Selling Unit of Measure:
piece
Short Description:
XT4X 160 MA 32 Im=160...320 3p F F
Short-Circuit Performance Level:
X
Standards:
IEC 60947
Sub-type:
XT4
Terminal Connection Type:
Fixed Circuit-Breakers
Version:
F
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'
