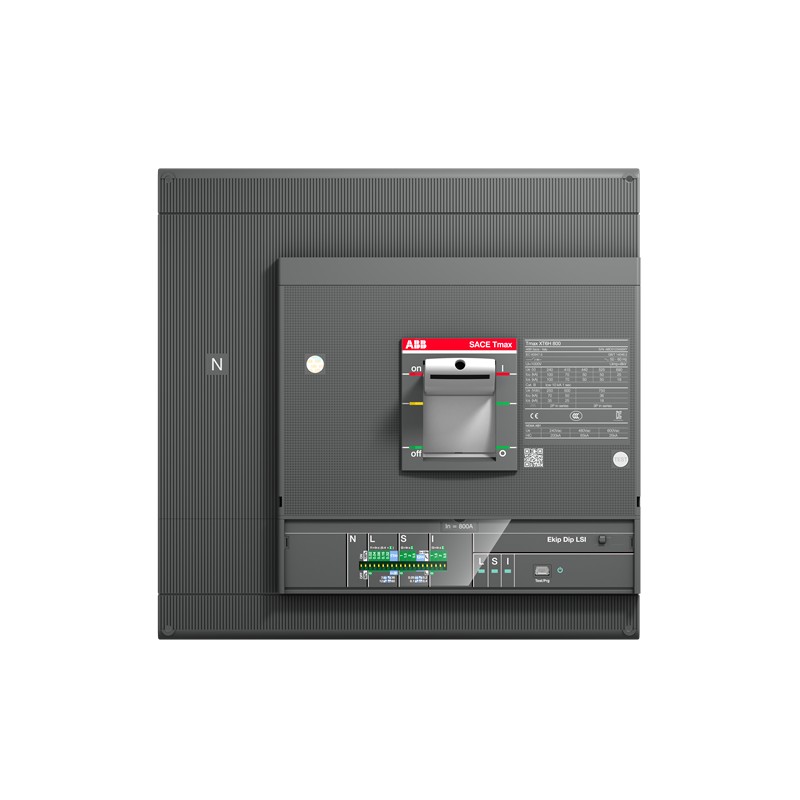

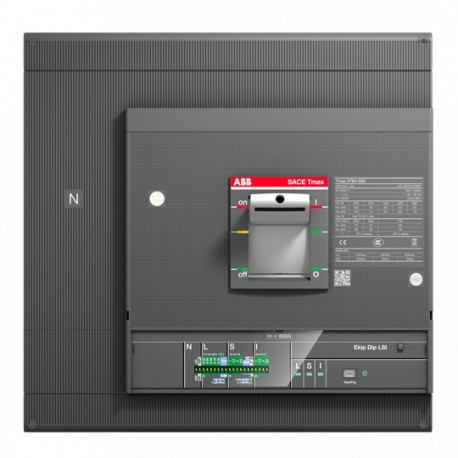

1SDA107583R1 ABB XT6S 800 Ekip Dip LS/I In 630 4p F F
1SDA107583R1
ABB
XT6S 800 Ekip Dip LS/I In=630 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2356 |
| Environmental Product Declaration - EPD | 9AKK108468A9752 |
| 9AKK108468A2295 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 60 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c7536c1d-6485-4a72-8a6e-4cebcb2e4a7a China |
| Simplified SCIP | 2b16368e-a92a-49b8-b3f2-f75a9d3e1bae Croatia |
| 155b06a2-4c9d-418d-af58-ed471cae08ed Poland | |
| da6613c6-afa7-48ac-a1a7-cc5d6afa39ca Sweden | |
| db7d7bcb-6f66-4d1b-adb9-ea5dadecc5ed Bulgaria | |
| 53a54f9e-8b6d-4759-829a-3d8de97bf0bb Portugal | |
| ebf8d28b-b198-4f21-9b2e-9eeb7217816c Finland | |
| ef734bec-1b4d-4518-8be7-d14875c02c8a Czech Republic | |
| a48029b6-524c-430a-a8c0-a690ecec83ca Germany | |
| 0ed41386-c8a1-4eb6-b321-ef70996058ef Poland | |
| 4bd3397f-1fbe-4f8f-b29b-bab4528ff8a2 France | |
| 8f8ea69a-e871-4048-97c4-4fa1b8ae4c40 Norway | |
| 53897cb8-c137-4f7e-82da-845c67962490 Germany | |
| 7e47314d-55b5-47bd-a967-4b2d2adb652d Netherlands | |
| 6c53ed93-dec6-4c98-ad05-521be8cb7536 Hungary | |
| df693b87-5523-4b6c-a83c-8a14241d86cb Greece | |
| 68c3cf75-a3bc-4b81-89e0-669e9151288c Sweden | |
| d92fcece-5e58-45f5-8d62-8102ca9e87d6 Poland | |
| 06af8e27-c884-4e25-9553-7cd70dc3899c Estonia | |
| d75a4fb2-5334-4093-97aa-687490e38ad7 Germany | |
| bebeb222-5105-4e8a-b2fb-c78d94d3902c France | |
| ca3c3bba-3851-42fe-85f3-c1f091d9ef87 Germany | |
| 060e893e-1622-4dc0-bf03-57ea24c40957 Germany | |
| d040afd6-0cb9-4112-aaa5-e9c6981e06a9 Spain | |
| 2554e11e-3c35-46a5-8ec9-c0f8081e280f Hungary | |
| a8afc1f4-fc06-453c-bac5-1465f052cf9a Denmark | |
| 07eba17c-2991-43d3-9dc3-3f95eb20f321 Belgium | |
| 097e79a0-f109-4dd7-90b7-774eea5286ae Belgium | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT6SE4630EFF000XXX |
| E-Number (Finland) | 3641880 |
| E-Number (Norway) | 4380587 |
| EAN | 8015644102364 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 12 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8015644102364 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable for Product Class | SACE Tmax XT |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1214 |
| 1SDH002065A1245 | |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | 33.2 W |
| Rated Current (In) | 630 A |
| Rated Frequency (f) | 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 45 kA | |
| (500 V AC) 35 kA | |
| (525 V AC) 35 kA | |
| (690 V AC) 22 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 45 kA | |
| (500 V AC) 35 kA | |
| (525 V AC) 35 kA | |
| (690 V AC) 22 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 35 kA | |
| (750 V DC) 3 Poles in Series 24 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT6 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2825 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002012A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002012A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 630 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 252.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 630 A |
| Adjustment range undelayed short-circuit release (EF007131) | 630 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
