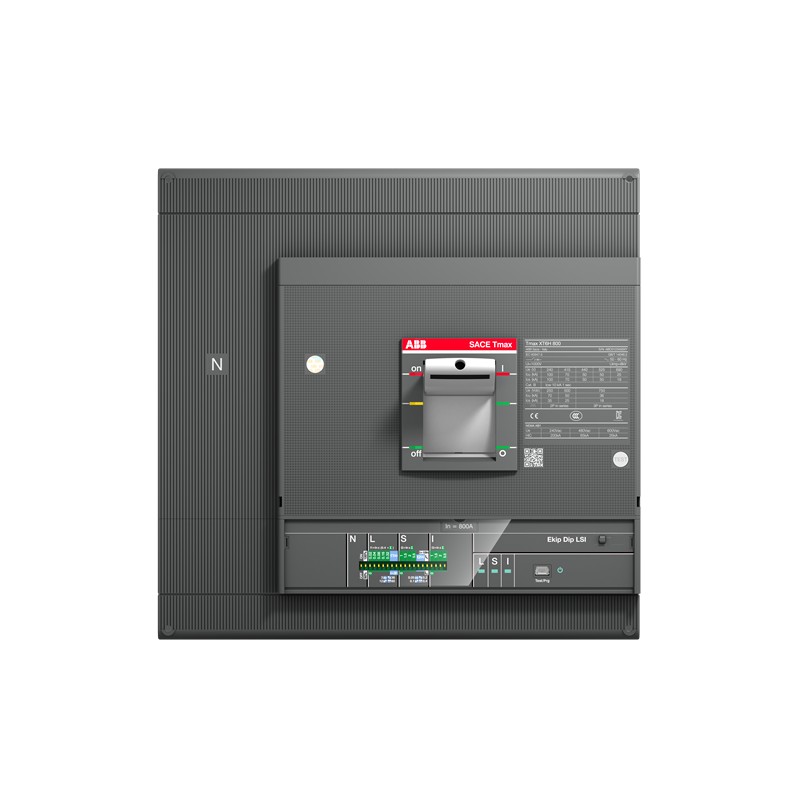

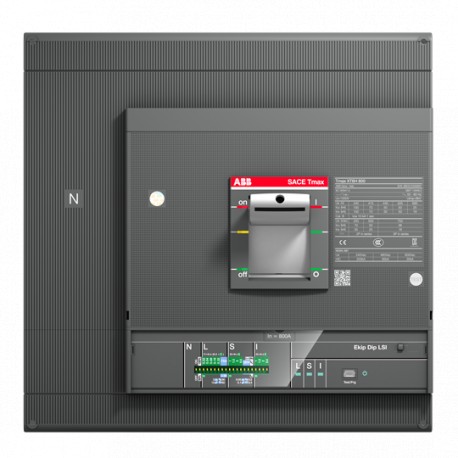

1SDA107571R1 ABB XT6N 800 Ekip Dip LSI In 630 4p F F

Reference: 1SDA107571R1

Manufacturer: ABB

Description:

XT6N 800 Ekip Dip LSI In=630 4p F F

Categories:

Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
ABB > Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
PDF
Reviews

Guarantee, repair and return.

Unit Price: 3.256,15 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions	9AKK108468A2356
Environmental Product Declaration - EPD	9AKK108468A9752
	9AKK108468A2295
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 60 %
Material Compliance
REACH Declaration	9AKK108466A1425
RoHS Declaration	9AKK108466A1424
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
Toxic Substances Control Act - TSCA	9AKK108467A8326
SCIP	2c78b548-797e-4a20-844a-31ed9f16913d Italy
Simplified SCIP	6382aa36-67bc-4ef2-ac2c-27a93d6c460f Poland
	4db6fe9a-5f33-4020-b47e-70bb15f5c4b6 Germany
	b46d36eb-4c9b-4f21-a825-e3fc9b68bc9f Denmark
	97566b7f-f8d4-4bda-b67a-f900b0bf8491 Germany
	d01ea7ec-04b8-4fc3-a54a-71adb3f8c9b7 Croatia
	89917123-ef0d-455f-b26d-ffb5dd5e5ce2 Czech Republic
	4b4b22d5-d15c-4cb0-bbd5-34ec18a326da Belgium
	fc473a2b-9a22-4a46-b654-3de59cd6b100 Finland
	9f279914-f108-4dce-8e90-7e3a729ee7bd Poland
	94c6cdbb-2ef7-48be-b4a5-b6b695dee207 Germany
	555b23f3-88b5-4b26-b72d-dd0f050077d0 Norway
	8472fe6a-6cbd-4085-a2f9-ac0a99b5b6d7 Germany
	e08d5737-1a91-4046-8ccc-ecb9b234e750 Hungary
	4bcc6987-b05d-466f-89ae-107cb3d1ceff Estonia
	e4602ce4-adb4-4625-95d4-4fc64984814c Greece
	d35294ae-4593-4dbc-8939-241fc482ed15 Portugal
	a9362b61-7e5a-47a3-a40f-0f19b9356f1e Bulgaria
	dd5631b1-3371-4a59-b99a-cdc3a2acb44a Sweden
	481c5a4f-abda-406d-a2f2-0c674211339c Poland
	f33f87c5-a668-4944-b886-50653f40f263 France
	c1e1c5f9-d7fa-47b6-9458-59f97ec82ce5 Sweden
	3c05682d-4b30-4455-a49c-34d393d1234b Netherlands
	551c32a2-430c-4b6a-ac63-5120e5c6ca13 Hungary
	17f8c744-1984-4733-8e6a-2554ba897547 Germany
	984e5605-66b9-4da4-941a-8fe7bbbb618a France
	1733e908-a966-4e52-bfd1-e8fb8f97b707 Belgium
	b0ec5fc9-712e-4f5a-bd85-7da3df6d0bd6 Spain
Environmental
Environmental Information	9AKK108467A6707
Ordering
Order Code US and Canada	XT6NE4630FFF000XXX
E-Number (Finland)	3641876
E-Number (Norway)	4380582
EAN	8015644102241
Minimum Order Quantity	1 piece
Customs Tariff Number	85362090
Dimensions
Product Net Width	280 mm
Product Net Height	268 mm
Product Net Depth / Length	103.5 mm
Product Net Weight	12 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	305 mm
Package Level 1 Height	285 mm
Package Level 1 Depth / Length	370 mm
Package Level 1 Gross Weight	14 kg
Package Level 1 EAN	8015644102241
Additional Information
Circuit Breaker Type to be Associated	Power Distribution
Product Main Type	SACE Tmax XT
Product Name	Moulded Case Circuit Breaker
Product Type	Automatic Circuit Breaker
Suitable for Product Class	SACE Tmax XT
Version	F
CAD Dimensional Drawing	1SDH002065A1214
	1SDH002065A1245
Technical
Configuration Type	Loose or configurable
Current Type	AC
Electrical Durability	5000 cycle
	60 cycles per hour
Mechanical Durability	20000 cycle
	120 cycles per hour
Number of Poles	4P
Order Multiple	1 piece
Power Loss	33.2 W
Rated Current (I_n)	630 A
Rated Frequency (f)	50/60 Hz
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Voltage	690 V AC
Rated Service Short-Circuit Breaking Capacity (I_cs)	(220 V AC) 70 kA
	(230 V AC) 70 kA
	(240 V AC) 70 kA
	(380 V AC) 36 kA
	(415 V AC) 36 kA
	(440 V AC) 30 kA
	(500 V AC) 25 kA
	(525 V AC) 25 kA
	(690 V AC) 20 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	10 kA
Rated Ultimate Short-Circuit Breaking Capacity (I_cu)	(220 V AC) 70 kA
	(230 V AC) 70 kA
	(240 V AC) 70 kA
	(380 V AC) 36 kA
	(415 V AC) 36 kA
	(440 V AC) 30 kA
	(500 V AC) 25 kA
	(525 V AC) 25 kA
	(690 V AC) 20 kA
	(250 V DC) 2 Poles in Series 36 kA
	(500 V DC) 2 Poles in Series 20 kA
	(750 V DC) 3 Poles in Series 18 kA
Rated Uninterrupted Current (I_u)	800 A
Release	Ekip Dip LSI
Release Type	EL
Short-Circuit Performance Level	N
Standards	IEC60947-2
Sub-type	XT6
Terminal Connection Type	Front
Certificates and Declarations
Data Sheet, Technical Information	1SDC210100D0206
	1SDC210099D0206
Declaration of Conformity - CE	9AKK107680A2825
Mechanical Drawings	1SDH002012A1101
Wiring Diagram	1SDM000005A1001
Instructions and Manuals	1SDH002012A1001
External Classifications and Standards
ETIM 9	EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10	EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
eClass	V11.1 : 27370409

ETIM for 1SDA107571R1 Low-voltage industrial controls and switchgear (EC000228)
