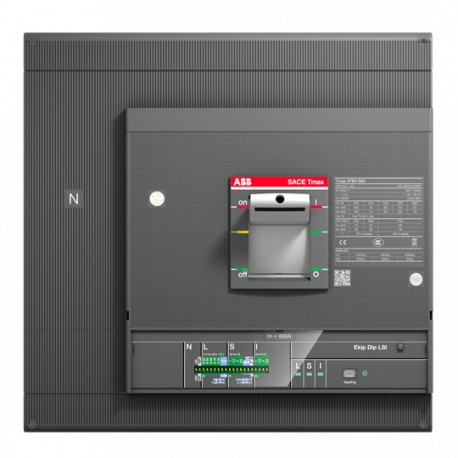

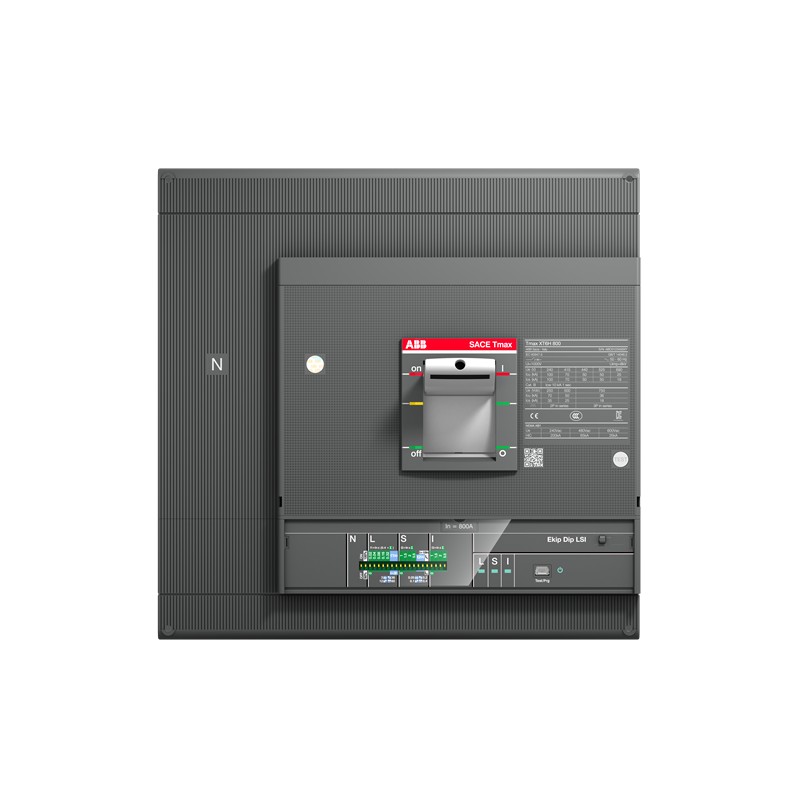

1SDA107570R1 ABB XT6N 800 Ekip Dip LS/I In 630 4p F F
1SDA107570R1
ABB
XT6N 800 Ekip Dip LS/I In=630 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2356 |
| Environmental Product Declaration - EPD | 9AKK108468A9752 |
| 9AKK108468A2295 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 60 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | a71d033d-e854-4d10-8450-17d6a50d7331 China |
| Simplified SCIP | 49ed447b-7b4d-48b9-850c-54a06d50bb3a Poland |
| 97649693-22a2-4790-8bc4-94e8f11014e4 Czech Republic | |
| b1298c7c-5753-42d7-bfde-531023b43ee3 Finland | |
| 0a3446f6-d544-43f9-92a9-2aefba6afeab Bulgaria | |
| 2a4bb6b5-c6e5-4e06-ba2e-65b39b1f13c6 Poland | |
| 79408853-96f0-4efc-80b2-5ab403dccb39 Sweden | |
| 0b1e23ab-7ac7-4a23-99eb-5c2d0b119e2b Portugal | |
| a2bf54a1-0a47-4f96-8714-36f0835ad25c Germany | |
| 787ce9e2-faaf-4e4f-823e-fcf88a654c6d Denmark | |
| 8c8e8659-74de-4f94-aa57-b71032a15252 Spain | |
| 0972a5f4-8025-4044-9854-930775d278bc Croatia | |
| 8deac034-1f38-4c2b-b0a0-1b75ee9f03ef Belgium | |
| b7843705-3c10-4d00-8525-01c48b4cb809 Hungary | |
| 9db540e4-7691-475c-b18a-157daa374ef5 Poland | |
| b1177d0a-cb3b-4838-9fe1-2160ff14ee25 Germany | |
| 3fd80256-6ef1-493a-afe7-5b224ecd6aa0 Hungary | |
| 791f8be5-7380-48d3-9fd5-6fe31017407a Greece | |
| 47818ec8-d913-44b0-a7a4-c7c62950ef2e France | |
| 80813194-595b-43da-b660-9334b75750bc Germany | |
| 22b8af7c-6e3d-490e-a9a1-f07e48db483c Netherlands | |
| a7d78566-7704-4468-a7f5-7125a14f5bc2 Sweden | |
| 386b4a78-7a69-4c63-bc1a-e1646976adb8 Germany | |
| 309ea136-231a-4f7d-b76b-92836d76daa0 France | |
| 7579e661-890c-4d6a-ba1d-f65a232ef448 Belgium | |
| 9da935fd-ad83-4e39-9d4d-e317a505429e Estonia | |
| 41857d31-99fe-47d7-b53f-55e386d8ffe4 Germany | |
| 532372f2-47b0-4631-a34c-0af193c9f7ac Norway | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT6NE4630EFF000XXX |
| E-Number (Finland) | 3641599 |
| E-Number (Norway) | 4380581 |
| EAN | 8015644102234 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 12 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8015644102234 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable for Product Class | SACE Tmax XT |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1214 |
| 1SDH002065A1245 | |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | 33.2 W |
| Rated Current (In) | 630 A |
| Rated Frequency (f) | 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 20 kA | |
| (750 V DC) 3 Poles in Series 18 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT6 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2825 |
| Mechanical Drawings | 1SDH002012A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002012A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 630 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 252.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 630 A |
| Adjustment range undelayed short-circuit release (EF007131) | 630 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
