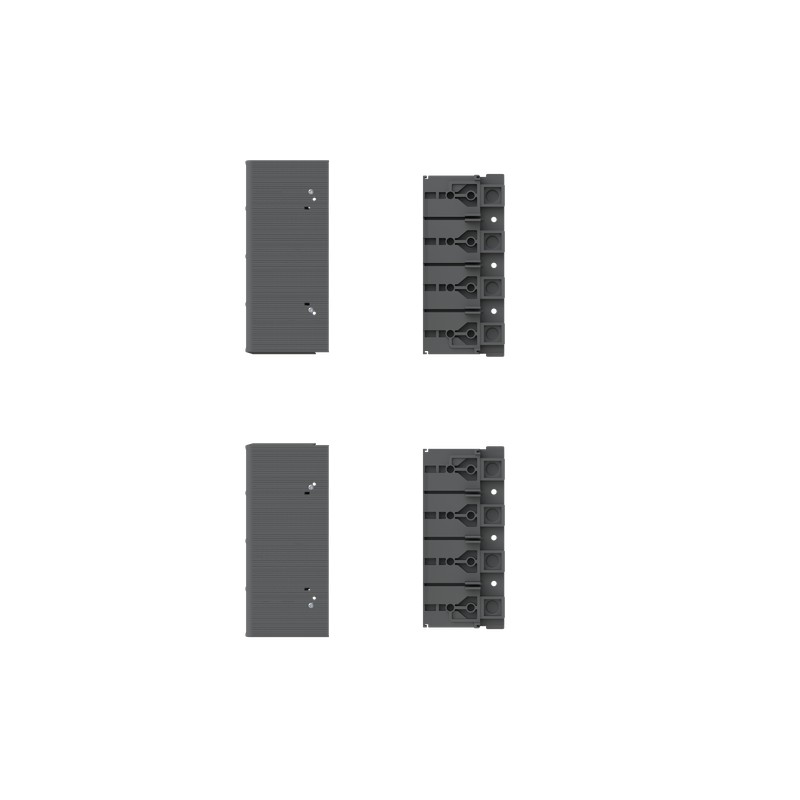

1SDA105044R1 ABB HTC BS cover with insulation. Tra. XT5 4p
1SDA105044R1
ABB
HTC_BS cover with insulation. Tra. XT5 4p
HTC_BS with back shield XT5 4p
Energy distribution systems > Cover cap for rail terminal bar
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5HTCBS-4 |
| E-Number (Norway) | 4381463 |
| EAN | 8015644071363 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.29 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Height | 135 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Gross Weight | 0.305 kg |
| Package Level 1 EAN | 8015644071363 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tamx XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002011A1617 |
| External Classifications and Standards | |
| ETIM 9 | EC002268 - Cover cap for rail terminal bar |
| ETIM 10 | EC002268 - Cover cap for rail terminal bar |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27400635 |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Plastic |
| Suitable for number of poles (EF001589) | 4 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA105044R1 1SDA105044R1 EN_1SDA105044R1.pdf | 70 Kbytes |
|
