ABBMolded case "Isomax-Tmax"1SDA104940R1 ABB YU XT5-XT6 12 Vdc

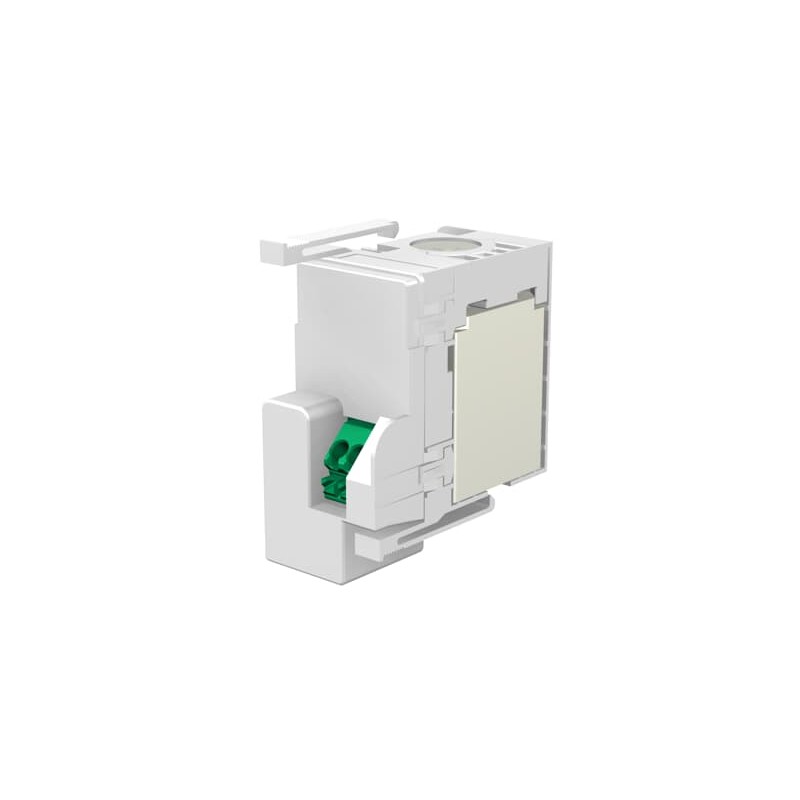

ABB 1SDA104940R1 1SDA104940R1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA104940R1 ABB YU XT5-XT6 12 Vdc

Reference: 1SDA104940R1

Manufacturer: ABB

Description:

YU XT5-XT6 12 Vdc
UNDERVOLTAGE RELEASE 12V DC XT5-XT6

Categories:

  • Low-voltage industrial components > Under voltage coil
  • ABB > Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 100,90 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

b'

General Information

Extended Product Type:
YU XT5-XT6 12 Vdc
Product ID:
1SDA104940R1
EAN:
8015644070328
Catalog Description:
YU XT5-XT6 12 Vdc
Long Description:
UNDERVOLTAGE RELEASE 12V DC XT5-XT6
\n

Ordering

EAN:
8015644070328
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
110 mm
Product Net Height:
60 mm
Product Net Depth / Length:
140 mm
Product Net Weight:
0.109 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.115 kg
Package Level 1 EAN:
8015644070328

Additional Information

Configuration Type:
Loose or configurable
Current Type:
DC
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Rated Voltage (Ur):
12 V DC
Standards:
IEC, UL
Suitable For:
XT5

XT6
Suitable for Product Class:
SACE Tamx XT

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210200D0205
Instructions and Manuals:\n1SDH002011A1512

Classifications

ETIM 6:
EC001022 - Under voltage coil
ETIM 7:
EC001022 - Under voltage coil
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

ETIM for 1SDA104940R1 Low-voltage industrial controls and switchgear (EC001022)

Feature nameRated control supply voltage DC (EF003980)
Feature value12 V
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameType of electric connection (EF003961)
Feature valueOther
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameDelayed (EF001541)
Feature valueNo
Feature nameSuitable for power circuit breaker (EF005863)
Feature valueYes
Feature nameSuitable for off-load switch (EF001543)
Feature valueNo
Feature nameSuitable for motor safety switch (EF005826)
Feature valueNo
Feature nameSuitable for overload relay (EF001545)
Feature valueNo
