ABBMolded case "Isomax-Tmax"1SDA104846R1 ABB RHE B XT5 F/PBASE R.DIST. ADJ. ROT.HA+2PLL

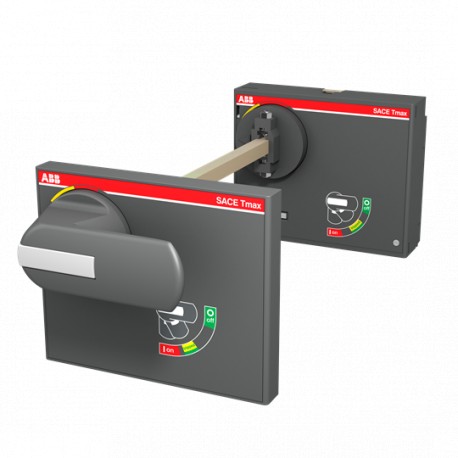

ABB 1SDA104846R1 1SDA104846R1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA104846R1 ABB RHE B XT5 F/PBASE R.DIST. ADJ. ROT.HA+2PLL

Reference: 1SDA104846R1

Manufacturer: ABB

Description:

RHE_B XT5 F/PBASE R.DIST. ADJ. ROT.HA+2PLL
BASE FOR ADJUSTABLE DEPTH ROTARY HANDLE FOR C.BREAKER FIXED-PLUG-IN XT5 WITH DOUBLE PADLOCK

Categories:

  • Low-voltage industrial components > Handle for power circuit breaker
  • ABB > Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 44,71 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

b'

General Information

Extended Product Type:
RHE_B XT5 F/PBASE R.DIST.ADJ.ROT.HA+2PLL
Product ID:
1SDA104846R1
EAN:
8056221027083
Catalog Description:
RHE_B XT5 F/PBASE R.DIST.ADJ.ROT.HA+2PLL
Long Description:
BASE FOR ADJUSTABLE DEPTH ROTARY HANDLE FOR C.BREAKER FIXED-PLUG-IN XT5 WITH DOUBLE PADLOCK
\n

Ordering

EAN:
8056221027083
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.331 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
130 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
145 mm
Package Level 1 Gross Weight:
0.348 kg
Package Level 1 EAN:
8056221027083

Additional Information

Configuration Type:
Loose or configurable
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Standards:
IEC, UL
Suitable For:
XT5
Suitable for Product Class:
SACE Tamx XT

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210200D0205
Instructions and Manuals:\n2TFH000010A1001

Classifications

ETIM 6:
EC000229 - Handle for power circuit breaker
ETIM 7:
EC000229 - Handle for power circuit breaker
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

DATASHEET - PDF

Title
Size
Type
1SDA104846R1 1SDA104846R1 EN_1SDA104846R1.pdf
171 Kbytes
PDF CATALOG ABB TMAX XT EN
70 Mbytes
