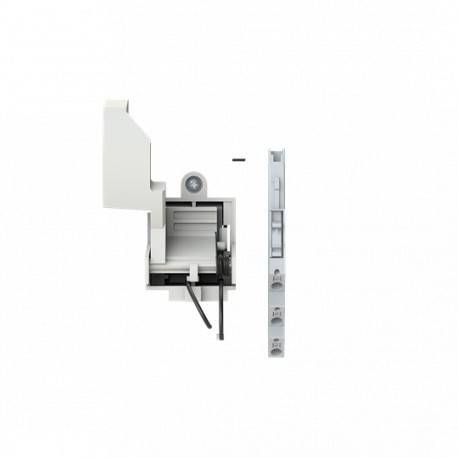

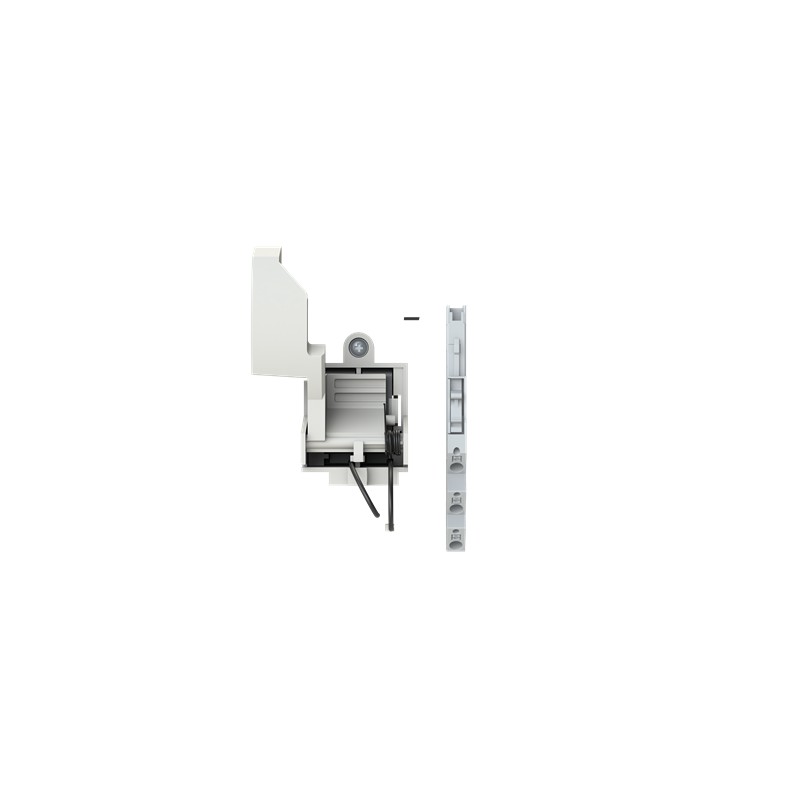

1SDA104823R1 ABB YOUR CONTACTS AHEAD OF CLOSING XT7
1SDA104823R1
ABB
YOUR CONTACTS AHEAD OF CLOSING XT7
AUE XT7 early contacts in closing
Low-voltage industrial components > Auxiliary contact block
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT7AUECL |
| EAN | 8015644069155 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.085 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Depth / Length | 140 mm |
| Package Level 1 Gross Weight | 0.089 kg |
| Package Level 1 EAN | 8015644069155 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT7 |
| Suitable for Product Class | SACE Tmax XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Number of Auxiliary Contacts CO (SPDT) | 2 |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| UL489 | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002013A1614 |
| External Classifications and Standards | |
| ETIM 9 | EC000041 - Auxiliary contact block |
| ETIM 10 | EC000041 - Auxiliary contact block |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| UNSPSC | 39121522 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371302 |
| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Type of electric connection (EF003961) | Spring clamp connection |
| Mounting method (EF000003) | Other |
| Lamp holder (EF000048) | None |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA104823R1 1SDA104823R1 EN_1SDA104823R1.pdf | 84 Kbytes |
|
