ABBMolded case "Isomax-Tmax"1SDA104774R1 ABB HR/VR FP XT5 400A 3pcs Kit (same length)

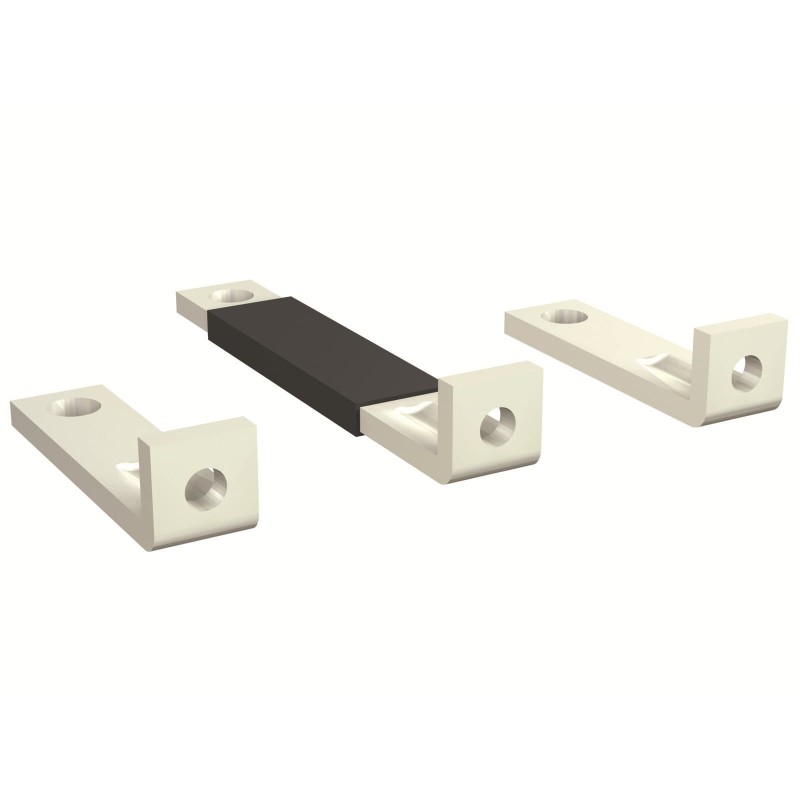

ABB 1SDA104774R1 1SDA104774R1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA104774R1 ABB HR/VR FP XT5 400A 3pcs Kit (same length)

Reference: 1SDA104774R1

Manufacturer: ABB

Description:

HR/VR FP XT5 400A 3pcs Kit (same length)
REAR TERMINALS SAME LENGHT HORIZONTAL/VERTICAL 3pcs FOR FIXED PART XT5 400A IEC

Categories:

  • Low-voltage industrial components > Connection vane/phase spreader
  • ABB > Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 130,45 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

b'

General Information

Extended Product Type:
Kit HR/VR FP XT5 400A 3pcs (same lenght)
Product ID:
1SDA104774R1
EAN:
8015644068660
Catalog Description:
Kit HR/VR FP XT5 400A 3pcs (same lenght)
Long Description:
REAR TERMINALS SAME LENGHT HORIZONTAL/VERTICAL 3pcs FOR FIXED PART XT5 400A IEC
\n

Ordering

EAN:
8015644068660
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
145 mm
Product Net Height:
30 mm
Product Net Depth / Length:
250 mm
Product Net Weight:
0.145 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
145 mm
Package Level 1 Height:
30 mm
Package Level 1 Depth / Length:
250 mm
Package Level 1 Gross Weight:
0.145 kg
Package Level 1 EAN:
8015644068660

Additional Information

Configuration Type:
Loose or configurable
Number of Poles:
3
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Standards:
IEC, UL
Suitable For:
XT5
Suitable for Product Class:
SACE Tamx XT

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210200D0205
Instructions and Manuals:\n2TFH000022A1001

Classifications

ETIM 6:
EC002019 - Connection vane/phase spreader
ETIM 7:
EC002019 - Connection vane/phase spreader
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

ETIM for 1SDA104774R1 Low-voltage industrial controls and switchgear (EC002019)

Feature nameSuitable for number of poles (EF001589)
Feature value3

DATASHEET - PDF

Title
Size
Type
1SDA104774R1 1SDA104774R1 EN_1SDA104774R1.pdf
87 Kbytes
PDF CATALOG ABB TMAX XT EN
70 Mbytes
