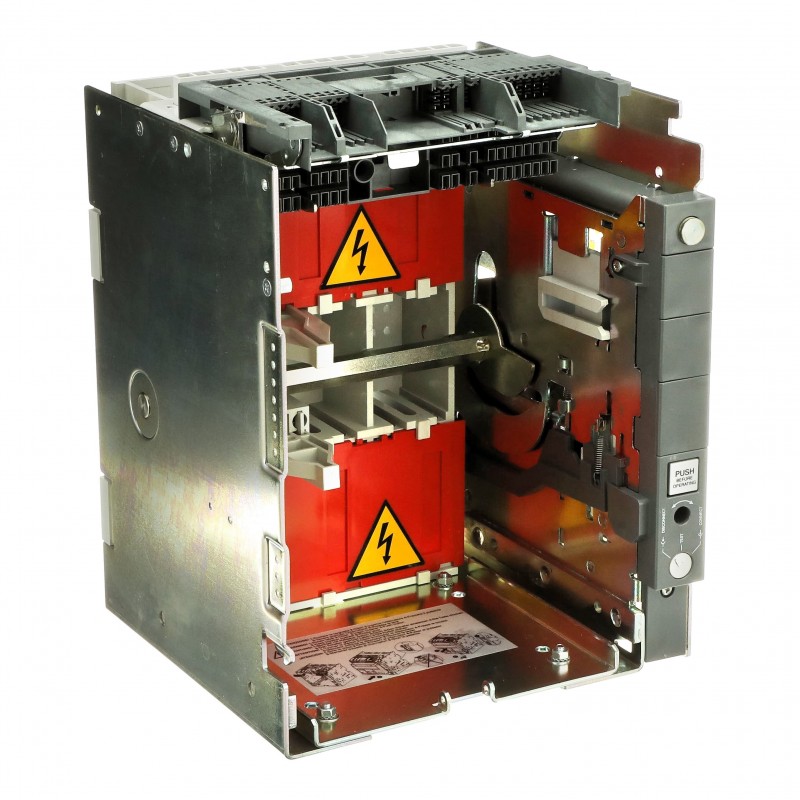

1SDA104702R1 ABB XT7-XT7M W FP 3p EF IEC/UL
1SDA104702R1
ABB
XT7-XT7M W FP 3p EF IEC/UL
Low-voltage industrial components > Chassis part power circuit breaker
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108469A8961 |
| 9AKK108471A0817 | |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT7DWFPEFF-3 |
| E-Number (Norway) | 4381518 |
| EAN | 8015644067946 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 21.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 320 mm |
| Package Level 1 Height | 375 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 21.7 kg |
| Package Level 1 EAN | 8015644067946 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Fixed Part |
| Suitable For | XT7, XT7M |
| Suitable for Product Class | SACE Tmax XT |
| Version | W |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Standards | IEC60947-2 |
| UL489 | |
| Sub-type | XT7, XT7M |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Front Extended | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002013A1803 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA104702R1 1SDA104702R1 EN_1SDA104702R1.pdf | 567 Kbytes |
|
