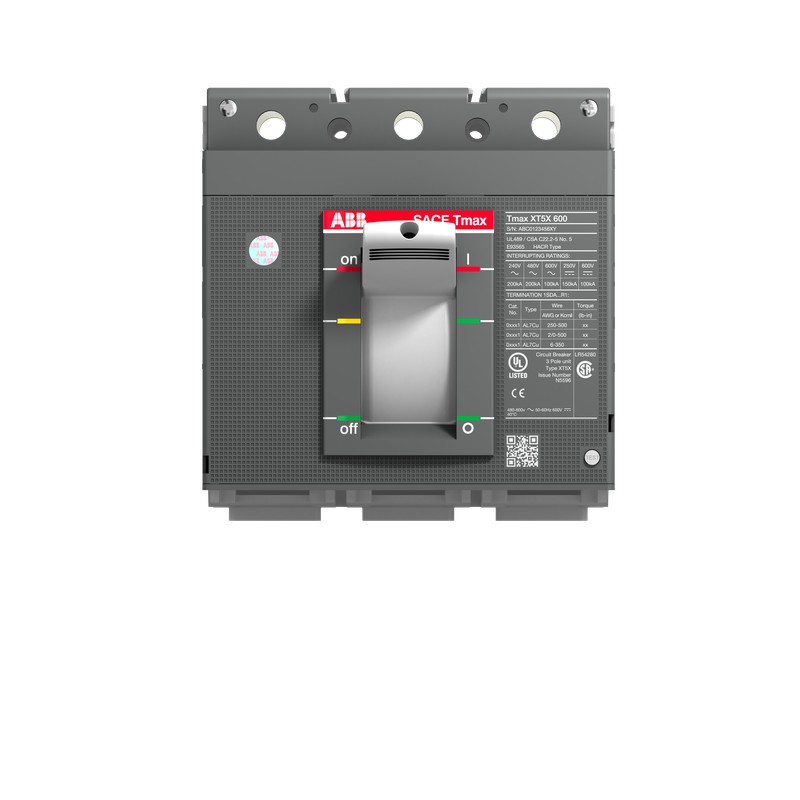

1SDA102686R1 ABB BREAKING PART TMAX XT5L 600 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS
1SDA102686R1
ABB
BREAKING PART TMAX XT5L 600 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS
XT5L 600 BREAKING PART 3p F F UL/CSA
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A1893 |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 4bc23d4e-9287-446a-a022-18178513c65d Italy |
| Simplified SCIP | b93591bd-c159-4c4c-b7c6-44c24f270dfe Germany |
| 93c67751-3cea-4047-beed-e6ad7e35569a Poland | |
| 77d278b7-b6f7-4adf-af59-bdfc723a3000 Norway | |
| e43d1f73-8e51-45c5-84f9-3735fa1280f2 Finland | |
| df65d694-0f70-4a36-a163-cee3d14fa9fc Netherlands | |
| bd57eb8e-849a-4208-a31d-d3529d461b28 Germany | |
| 376f35c5-1dd9-4804-a22f-629c50538000 Denmark | |
| c7bea5a0-5e21-4cc1-9a40-a72c903ba0a6 Germany | |
| f1fad3ba-dcc1-4968-94cb-48a115990001 Croatia | |
| 180321ea-ee8d-407a-9d7a-fc961b2120c9 Czech Republic | |
| 6f818233-182d-4d3b-afa0-05e3a917c3bf Poland | |
| e6613477-8b8c-4813-836d-3480224d5c99 Netherlands | |
| 03b483f1-13c5-42c6-8dbb-6cf5e7a77f7b Netherlands | |
| a33f5cd5-ae50-4e83-b2af-5eac6635bc51 Estonia | |
| 36d858c4-4d80-4df6-a325-973e6970339c Greece | |
| 5ca949a7-e1f3-4f13-907d-ec2f065689bd Portugal | |
| 8aedb8f5-07e9-4a9a-b9fe-bf57850878db Bulgaria | |
| e7a2615f-ebd0-46e2-87ea-420de38fb4ad Sweden | |
| 69222f5e-03c6-40c4-80db-4ea87e60dc4e Poland | |
| 16219348-02c8-41fb-bd1b-b5ba627684fe France | |
| a264911e-ca4f-495c-8f47-fe4a7eb3a069 Sweden | |
| c8f2aaa0-5184-4e87-a4cd-a4731ce1c766 Germany | |
| 4cf6f882-1137-4fb0-b22b-60a8457388af Germany | |
| df5cdf80-89ce-4b1c-852c-2802d6e6a134 France | |
| d222abd4-a317-4f3b-8454-7a4e58988f9f Netherlands | |
| 0549e0ff-dfa5-4243-a373-be7aa98485fc Spain | |
| 0f99afe3-647e-4258-ba70-437c833ad94e Netherlands | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221023795 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.25 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.8 kg |
| Package Level 1 EAN | 8056221023795 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Suitable for Product Class | SACE Tmax XT |
| Version | F |
| Technical | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Operational Voltage | 600 V AC |
| 600 V DC | |
| Rated Uninterrupted Current (Iu) | 600 A |
| Short-Circuit Performance Level | L |
| Standards | UL489 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Technical UL/CSA | |
| Interrupting Rating acc. to UL489 | (240 V AC) 200 kA |
| (480 V AC) 100 kA | |
| (600 V AC) 65 kA | |
| (250 V DC) 2 Poles in Series 100 kA | |
| (500 V DC) 2 Poles in Series 70 kA | |
| (600 V DC) 3 Poles in Series 50 kA | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210200D0206 |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Instructions and Manuals | 1SDH002011A1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
