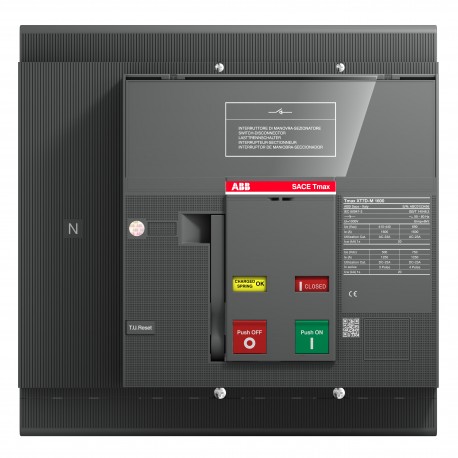

1SDA101917R1 ABB XT7D M 1600 4p F F
1SDA101917R1
ABB
XT7D M 1600 4p F F
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 463528fa-dc74-4f3c-8ca6-e8a46d340e29 Italy |
| Simplified SCIP | 70346523-7fc7-44e1-9f20-0f621518327c Germany |
| 869717ff-1f80-43ba-b0c6-66f9e08c8a5f Portugal | |
| 7991b616-f40c-499b-9802-4dfc969a0134 Denmark | |
| 25e2d7ef-3cec-4618-844a-9b752dfe7d7c Germany | |
| fa0b0b0b-c407-4fb5-b2a8-2bc1fde38527 Czech Republic | |
| 32b989b3-feed-430b-92c7-08eb5b83b613 Estonia | |
| 4900d0b7-031b-4392-b54c-cafdb368a8c0 Sweden | |
| 5c2c4f04-4c7f-4e1e-8b80-5af632f1cab5 Germany | |
| 564068be-442c-4a5e-901b-379aac03c972 Croatia | |
| 228f8e9e-1d1b-4833-8dfc-6802facbd172 Germany | |
| b0d4bda9-cd18-437d-80ee-88b55ae824b6 Belgium | |
| 93ca2027-4526-41e4-89bd-6940fafc0081 Hungary | |
| f041bb41-1684-45cc-b852-32067150799c Spain | |
| 432bb9bc-071f-41c4-b5ed-a2e1c14aeafa France | |
| 92b20103-5307-47d1-92a2-cf22017fb810 Germany | |
| bdc5385c-3d7e-4540-be09-8d6cafbb60ba Poland | |
| 25774867-c059-47e9-8248-e240765d8cd6 Bulgaria | |
| 1ccda7fc-d801-491b-826c-0cd6e6a17065 Norway | |
| b5e96936-ef5b-43cd-bac0-facf5e494a76 Sweden | |
| 46619d98-8e15-4e71-b72f-5eeee85465c7 Poland | |
| 6859a858-1f1e-44d8-b7ad-b1b182cc264a Belgium | |
| ba764556-c786-45e2-9180-b593dd4d67ea Poland | |
| 4c076cf1-cd89-43ce-9a8e-0b1d687543e5 Finland | |
| 477a5996-7235-4167-b11e-ddd1b5f4affc Hungary | |
| 10196d18-fd19-4930-ab01-d3119ffe7b87 Netherlands | |
| c8a11d7e-d2c1-4271-9cba-04f3ff91be82 France | |
| 51d37d6e-ee86-4e5c-9e6e-b988f4fb53d4 Greece | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XDEMSFAZZAAAA00000 |
| E-Number (Norway) | 4380962 |
| EAN | 8056221019613 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 14 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 15.5 kg |
| Package Level 1 EAN | 8056221019613 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current Iu (EF001389) | 1600 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1600 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
