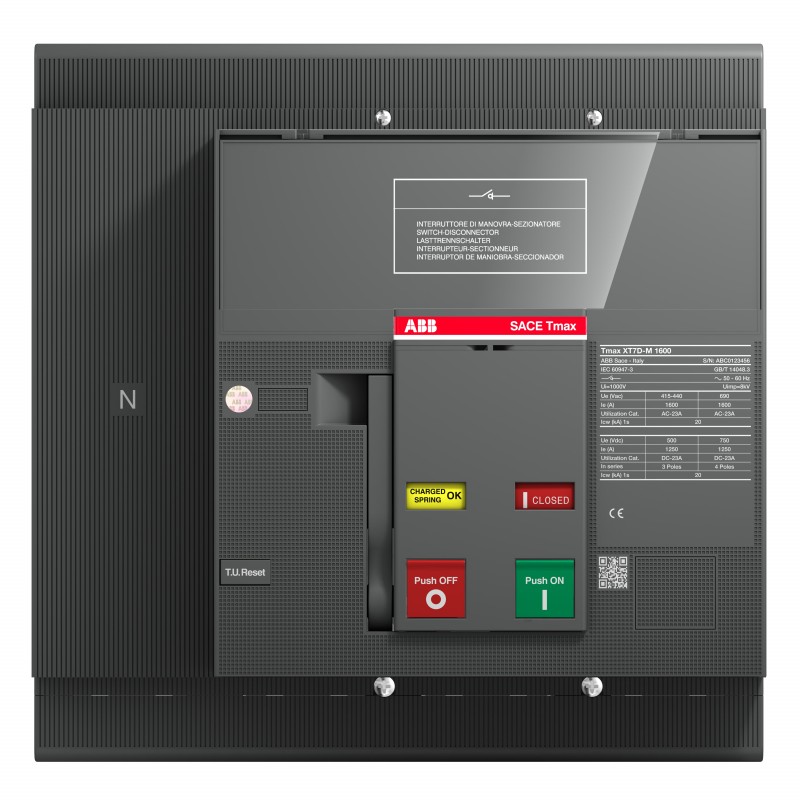

1SDA101915R1 ABB XT7D M 1000 4p F F
1SDA101915R1
ABB
XT7D M 1000 4p F F
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 1fa47744-cda4-4272-88b5-e195cdb98516 Italy |
| Simplified SCIP | 784ddd33-f34f-4156-9a03-b2c32f0f60f6 Greece |
| a18757e0-55c6-43c3-be7e-3b4bf961bd8a Belgium | |
| dd42fc9d-d25a-485d-9779-ba044738cb28 Finland | |
| 670f6d30-5ee2-433d-b732-b5264d2aca0e Poland | |
| 1b260bb7-303d-4b73-91a3-08e55b0ad48d Hungary | |
| df5b9d1f-f9c2-4717-b2c6-107e9ca807fd Belgium | |
| e5ad8f74-da50-43e4-b799-940f6df3208a Spain | |
| 086c45ef-def0-4ad0-8045-65c93d5fba88 France | |
| e64f0d95-8271-4d20-bc89-3d5e3f3f5755 Hungary | |
| 30ce15ab-3eda-479b-8bdd-e7f898a5f4c0 Croatia | |
| f2b00ba3-579e-4767-a68b-a366a16974ed Germany | |
| 5ee3fe05-9cdc-49ca-ad3b-bb0ca5bc0c72 Estonia | |
| 84ca854d-373e-4cde-a25d-12cc7afd4119 Germany | |
| ef764a51-d15d-4442-bb46-63d3964784ab Germany | |
| 7c942fe7-1af0-459c-bf29-31e8e1444784 Denmark | |
| b26b513f-e2b4-4b8a-9dcb-59c858a7d308 Sweden | |
| 2704b85f-d3e8-4f6e-9792-606e7a10ce64 Germany | |
| 9ff7edce-a92c-4d2b-999c-96577f93a5fd Portugal | |
| bb50f494-f18a-48f4-af76-2714af1f77bf France | |
| 0ab312d4-f629-45a3-a384-c8827a4df41b Norway | |
| 5843270e-11f0-41e5-ae09-1ed9139d09f5 Sweden | |
| fd1c19e3-a6ef-43b5-940d-e7b681cc3eb5 Netherlands | |
| 168a5bc5-dff2-44f2-a4ea-e637badced89 Bulgaria | |
| 333d5e4c-8884-4156-9012-93d1df8f65c6 Germany | |
| 859626d0-e654-4b1a-9e6f-8ed3809db7fd Czech Republic | |
| bcb6235b-b74e-4478-8354-021fdd9cf9c0 Poland | |
| b35d8f72-d0db-40fa-a41a-2a08e3f18419 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XDEFSFAZZAAAA00000 |
| E-Number (Norway) | 4380960 |
| EAN | 8056221019590 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 14 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 15.5 kg |
| Package Level 1 EAN | 8056221019590 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1000 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
