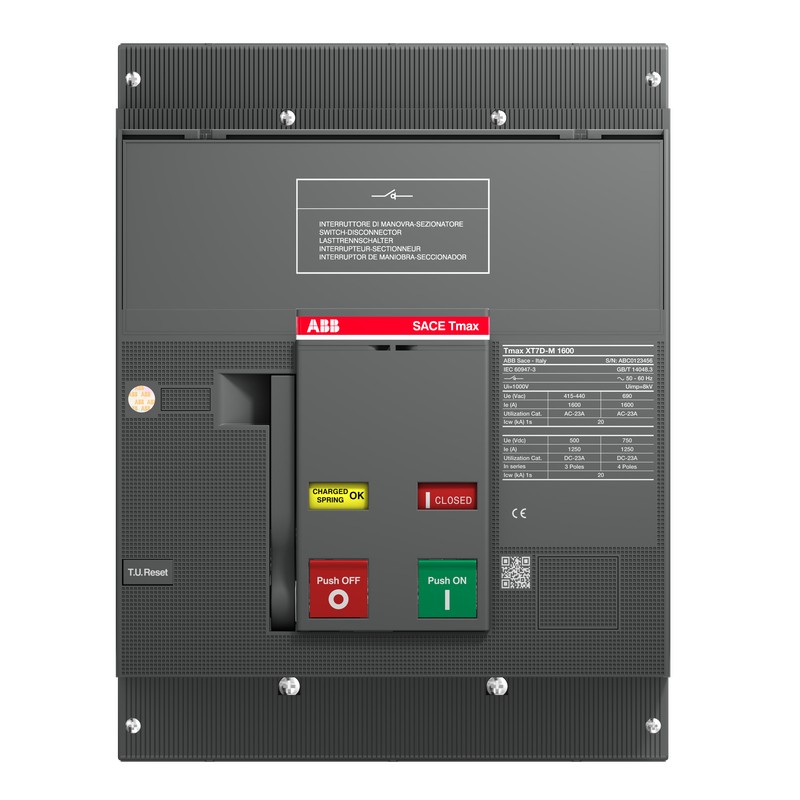

1SDA101914R1 ABB XT7D M 1600 3p F F
1SDA101914R1
ABB
XT7D M 1600 3p F F
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 180bc132-4afa-48d6-a147-b62875c64797 Italy |
| Simplified SCIP | 41d13423-4d08-4128-9175-3c0548761695 Hungary |
| 5eaee16f-0fe1-4dee-9c4c-2bc4dafa1ae2 France | |
| 034b0354-1b5b-4c26-8a73-02c2107950a9 Czech Republic | |
| 6d427b44-261e-4996-b0b7-e398496912c4 Germany | |
| ed8a13a2-399f-42d6-b0e6-95fc5001a1a4 Estonia | |
| e89098f6-0399-47e4-b8bd-e09eede76835 Germany | |
| 7ec43cc0-9fb6-458e-a463-627514b4120d Croatia | |
| 4a6493b6-b9da-4521-9e5f-57e1cdebf8d1 Sweden | |
| 87a62b66-74f2-4ac8-a960-d015926230de Denmark | |
| 2f31aa79-23fc-49ae-83fd-4d4412e30de8 Germany | |
| 2d07a1a4-ad6b-44f9-9a0a-a7e7540aca8e Spain | |
| b906b303-b0e6-4fc5-bb9a-2eac93f92344 Belgium | |
| 1b696a12-0b8b-4e38-a9db-dd188dc1ac8b Poland | |
| 918eadf8-f884-4cb2-b0de-d52dc53fd690 Finland | |
| fa968ee1-c924-4472-9bee-d06f3492b695 Netherlands | |
| d202dd59-942a-4636-a3b4-c32e2830c178 Hungary | |
| 9d5184be-5407-4aa3-81a4-e19369db8c26 Sweden | |
| d29a0333-28bf-4069-8e12-2887df35bf5b Norway | |
| abdc98a5-4a05-4d1e-b26b-e28f64f34859 Bulgaria | |
| 12cbe38a-14d9-4dd9-889f-370a87b9e4ff Poland | |
| ea1c70be-ef9b-453b-896b-1062ec1404d1 Poland | |
| 08c0f565-5fb2-4ad7-88f2-ccbd4f8b5d00 Germany | |
| b354f31c-a589-4c82-83e4-2b4b793a3469 Greece | |
| 00e0db3e-56b4-4303-8eee-ac921823049f France | |
| a843e0bb-79c0-430c-9d43-114007b4402b Belgium | |
| 4db83895-d210-41e6-b07c-54c06e0e1389 Germany | |
| 9f7074de-fd78-4318-b457-cbef974755e0 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XDELSFAZZAAAA00000 |
| E-Number (Norway) | 4380812 |
| EAN | 8056221019583 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 11 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 12.5 kg |
| Package Level 1 EAN | 8056221019583 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1337 |
| Technical | |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current Iu (EF001389) | 1600 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1600 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
