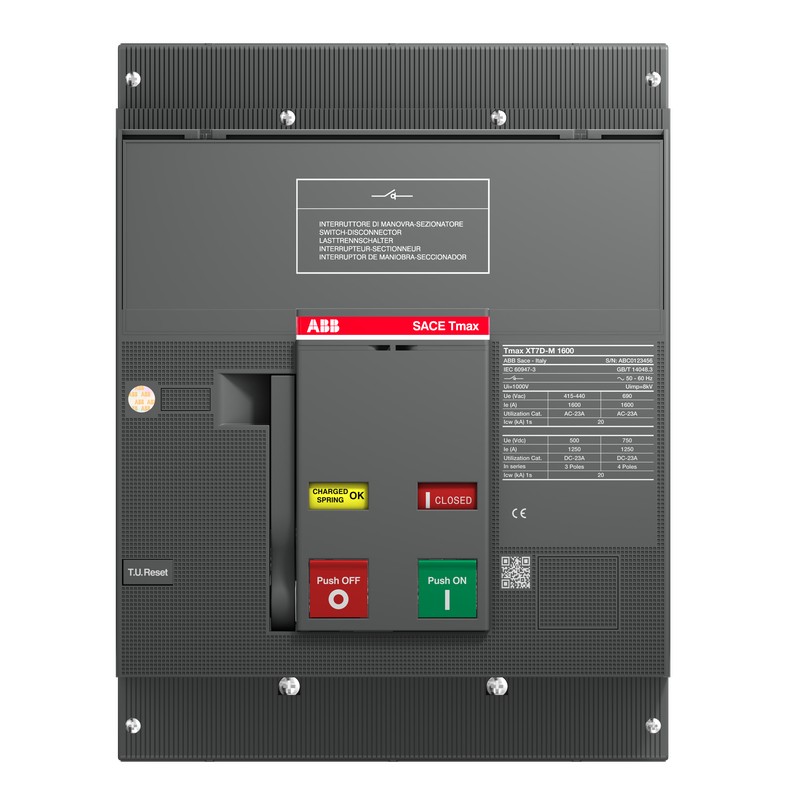

1SDA101912R1 ABB XT7D M 1000 3p F F
1SDA101912R1
ABB
XT7D M 1000 3p F F
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 89280419-c65f-40a5-9cec-d845746c0465 Italy |
| Simplified SCIP | 1b961a8a-b2e1-4416-b9f0-ef375d1a8e7b Sweden |
| f6183ebc-5eb8-4115-b0b3-66711fde8615 Denmark | |
| 04a18d6f-ced1-429c-bbf0-93a5650d50fb Germany | |
| 126fbafb-78ca-4fb7-9552-e1b18a4828d6 Portugal | |
| 77030f11-b374-4168-aa91-dabc488312b7 Hungary | |
| 11521e8b-b86f-4346-9ddf-c81eae804c8a Belgium | |
| ea294ced-cf13-4bc8-a7a6-921bbf828511 Spain | |
| e197db8e-093d-4254-aee7-c9742067b20a Greece | |
| 367f783e-8462-4a2c-a516-a137c9500aaf France | |
| 75123a09-ed84-4949-afb6-3de768f31295 Belgium | |
| 9780c420-65f1-481d-a8c5-b3db3c8c8817 Poland | |
| c85ed36f-80b8-40c4-92fc-82e2175341e1 Finland | |
| 8472d5ba-6735-4d08-b3a0-8c4e395370e2 Hungary | |
| 95197a07-7f31-48ed-a202-4dda1b9aaaed Poland | |
| 03dbeae6-4095-4d1b-abb8-78dd64d4e069 Czech Republic | |
| 28f00ae3-1412-4a8f-8e5b-a6553b9f2e71 Germany | |
| d38bc4da-998a-4094-86db-b57671eded10 Netherlands | |
| fdd7cac6-b54d-488a-a01a-c88af6aa8573 Sweden | |
| f937f928-a5fe-487f-a109-74665755b9ef Bulgaria | |
| 5ceaa84d-9c54-44e2-92d1-755dc30a0645 Norway | |
| 7ed02524-5660-4c69-8347-31926165c5bf Poland | |
| 2ca4c9b9-68dc-411f-af5f-14beaf8ba302 France | |
| 6b4da810-711c-4eae-8a8e-37e2e41024a8 Croatia | |
| 914c28c1-cc6f-42d8-8022-297abcf3f105 Germany | |
| 9cdfd06b-6cb5-45a5-9ceb-45d15ec929db Estonia | |
| 8c46b8b3-97be-4baa-9a6b-3934ec648a00 Germany | |
| 741e2966-c7f5-4b9f-93c3-3a0213dc8a59 Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XDEESFAZZAAAA00000 |
| E-Number (Norway) | 4380810 |
| EAN | 8056221019569 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 11 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 12.5 kg |
| Package Level 1 EAN | 8056221019569 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1337 |
| Technical | |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1000 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
