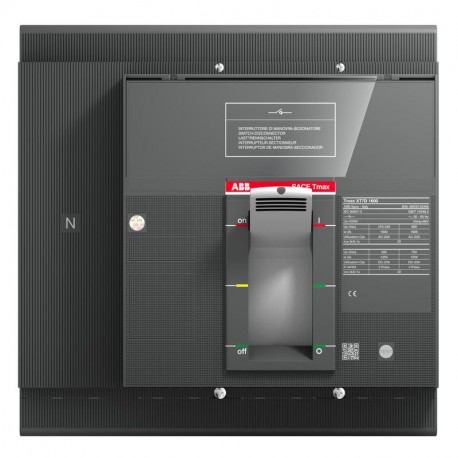

1SDA101911R1 ABB XT7D 1600 4p F F
1SDA101911R1
ABB
XT7D 1600 4p F F
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b23e483b-582e-4911-a84f-2b7147367355 Italy |
| Simplified SCIP | 6fbff7a4-4edb-459c-b4f7-1e872c279cdf Belgium |
| dfdf8bc2-0b90-43cb-822e-26eafedfba56 Spain | |
| a6887397-ce75-4efb-9e52-baefe55065d6 Hungary | |
| 49242676-cf69-4a49-833f-89aa80767a0e Germany | |
| 432f2837-74b0-4c04-a0f4-cf54bc6901d8 Denmark | |
| 17054082-5c10-4ca0-867e-b856c9c51b17 Sweden | |
| 60228b79-5dbf-456b-b7c8-b2140eb2bd8f Germany | |
| fc286ed1-a85f-4030-bdd5-4b5779ca1686 France | |
| f8df6622-0ed7-4fbb-972d-b9314cc6b8c6 Germany | |
| 2d296451-facf-4378-b7c5-cb05705024e1 Estonia | |
| 103b1c1d-b38b-4a98-90d5-147d108bd52a Portugal | |
| 3ba3daa9-b22e-4e31-bb5c-8e9e622fbba9 Croatia | |
| c70fa9f6-7be6-4cbe-8005-bca4ea4b3a24 Germany | |
| fb7da24e-b09c-4e3e-8712-330cc85396b3 France | |
| 31d0e74e-4f85-45de-96fb-c70bca0d2d0a Belgium | |
| 206271a8-9008-4a63-aa36-c6deb3ec1572 Greece | |
| 1c50c498-fbd4-49f7-a2ed-3bb22bdd1b96 Poland | |
| 6d9fcaf9-52be-4d98-ac0a-6f34eead9907 Finland | |
| d91e857f-1fba-412a-bc32-94f17c1017a2 Hungary | |
| b6fa001b-d86c-47db-b93c-bef3655372b5 Sweden | |
| d44d860e-98b4-491a-a207-58d437fe734f Netherlands | |
| 842b8a5e-9a4e-4c6f-aad5-8da1dfb1bc13 Bulgaria | |
| 20891e4d-b241-464c-8f24-b673a925602a Norway | |
| 0fbc10fa-91d7-4b37-a9be-bfaac39a3c6d Germany | |
| fa6b8fff-dccf-4d85-b24d-6ba9d901a03a Poland | |
| cd8da939-d236-49af-bf41-3e448c29f334 Poland | |
| 6ca0b3a0-1a66-4317-b4ac-ce9c08f23e09 Czech Republic | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7DE416FDFF000XXX |
| E-Number (Norway) | 4380959 |
| EAN | 8056221019552 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221019552 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current Iu (EF001389) | 1600 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1600 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
