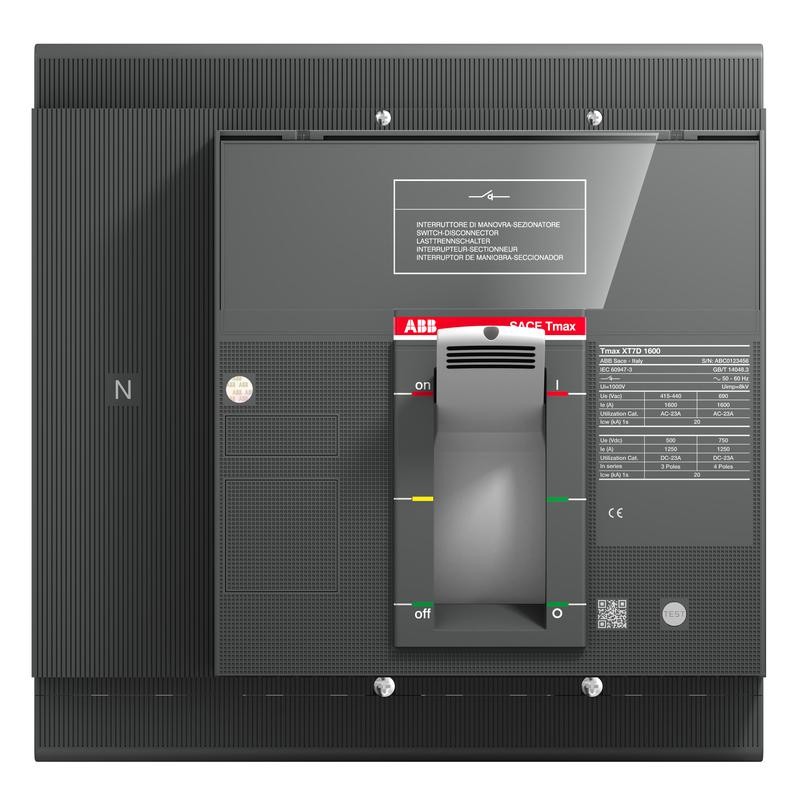

1SDA101909R1 ABB XT7D 1000 4p F F
1SDA101909R1
ABB
XT7D 1000 4p F F
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 5f787fc5-6666-49f6-8f15-b7c5a4d4c75a Italy |
| Simplified SCIP | 78be03fa-a670-4c81-8c98-916739b99b7c Belgium |
| ce9279f0-7498-49a5-a0c9-cf64296a9f71 Hungary | |
| 3e8fdab2-1e72-493b-8fbf-52f5e427e52b Spain | |
| 029e0660-c0b4-4d70-8b39-1f61f3784b4e Germany | |
| 66c88475-6633-40c6-92b9-cb9704864ba5 France | |
| 9b144f9e-ceb8-4e20-853b-e30938c081ae Czech Republic | |
| 94cf16e0-aba0-4a38-9b8b-fe3173c518b9 Germany | |
| 94da2b0e-665b-401d-98bd-fe19a6489d50 Sweden | |
| 16bf77f6-5a88-4192-9c73-56b72867b05f Denmark | |
| 74273e33-80a6-4fda-9feb-f31aa74e7c56 Germany | |
| c32fe5f0-eeba-4fd1-acf2-61b7c500a316 Croatia | |
| 5d1f7ddf-09fe-4e5c-9221-353ec9383156 Germany | |
| 6a37cff5-87d1-4e3a-8fc3-bfa3bc690083 Portugal | |
| 5ec91c1b-1ebf-49c5-8b0b-2b24e02e0804 France | |
| 3337aa12-f1d9-41db-8e33-61f58f390a92 Greece | |
| 80753fc6-d6d8-4683-8714-3bf521aefc5b Hungary | |
| bca0ba5b-0d14-4fcd-b0de-3a87dae7efb4 Poland | |
| a7bc8b4d-e2f1-4f83-ab22-2293f57fdb60 Finland | |
| b74f9660-7f43-4ab8-a0b4-4ce3c1ebe475 Estonia | |
| d63b7cc2-b93d-4657-83d6-92090ab5ba20 Belgium | |
| 8303b5c7-2a48-4115-95b5-f4cf12a473f8 Bulgaria | |
| dfedae8d-c6fa-4f0f-9cf8-66cad1a28902 Poland | |
| d5c602e8-d2bc-4361-9a38-6464dc77a124 Norway | |
| 911864ca-54ad-4667-8ace-2500fc723e5e Sweden | |
| e041bd6e-b947-46b5-adef-a6669fb28895 Netherlands | |
| deb41e4c-a631-4a2a-9283-d59dc613bf63 Poland | |
| f9189e26-c2c3-4203-816c-64ff1ce2bf6f Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7DE410DDFF000XXX |
| E-Number (Norway) | 4380957 |
| EAN | 8056221019538 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221019538 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1000 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
