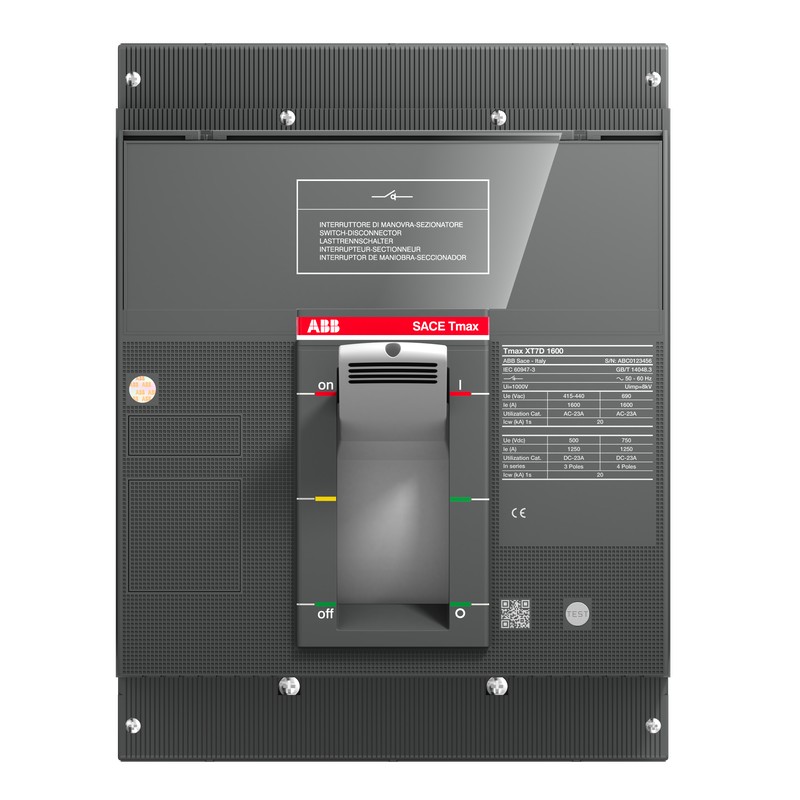

1SDA101908R1 ABB XT7D 1600 3p F F
1SDA101908R1
ABB
XT7D 1600 3p F F
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 7d6cc5e2-c284-4b75-8391-53a2e6222111 Italy |
| Simplified SCIP | 43a61f6f-dc17-4cff-9f69-ea072c601f69 Croatia |
| d4e51da2-5f33-44cb-a67a-f339a42d2a56 Germany | |
| 1c16164a-6e6d-4ef1-8f6e-2360674ea7b1 Portugal | |
| f3e0bed7-51f0-40a1-a60c-ef1be68f661b Denmark | |
| 2dec3349-08f1-495f-8aea-41783f7ee233 Sweden | |
| 1441a85c-7b58-4223-ab61-245897b3c11c Germany | |
| 7f9b01c9-ce77-4cc9-b759-9c22067835a6 France | |
| 2f91233f-b8ac-4198-8577-d6bc92bd32e4 Germany | |
| f66739cb-466c-426b-8bea-16d014d97b02 Germany | |
| b9cef1f9-b715-49c1-a09d-41e50b336428 Estonia | |
| 536104f1-87dd-4c65-b4e6-82c05a5ad8a2 Spain | |
| fd780fb3-3c60-490b-9083-c3f45cffbf0b Belgium | |
| 1df11215-ea61-4cf0-b1fe-cc826786f281 Hungary | |
| 5e6e4e37-1fdd-469a-a4e4-fb7475ce6e42 Finland | |
| df4b321a-865e-4522-ae6d-a6dc6a2b6867 Poland | |
| a4c26835-5f2f-4ce7-bc58-0349392b1476 Hungary | |
| 29b6dbe5-e5b3-4ae4-a165-caa9790de6b7 Belgium | |
| 476b40b3-268d-4bf3-a7ae-56c98212e236 Greece | |
| ae164f54-53b8-472b-b9e1-04a8563eeafa France | |
| 4bfff706-c4b9-4874-a733-9c46f113e4d1 Germany | |
| 386aec38-9a6a-4107-9a33-326a991f1f9a Czech Republic | |
| 354456aa-748f-4635-8cf0-0ecf5870b524 Sweden | |
| b064decd-0288-4638-9a5e-89216b1dcde6 Norway | |
| 90a0b491-8589-48cd-8409-db1e174f7cec Netherlands | |
| 5bc625ac-d4a0-4b4c-a3f6-a84b3693a7bc Bulgaria | |
| bded5075-f7c3-4647-b590-5c1f275c2479 Poland | |
| 79fa2a01-d65d-4154-bdee-916658d56480 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7DE316FDFF000XXX |
| E-Number (Norway) | 4380809 |
| EAN | 8056221019521 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 9.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8056221019521 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| 1SDH002065A1338 | |
| Technical | |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current Iu (EF001389) | 1600 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1600 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
