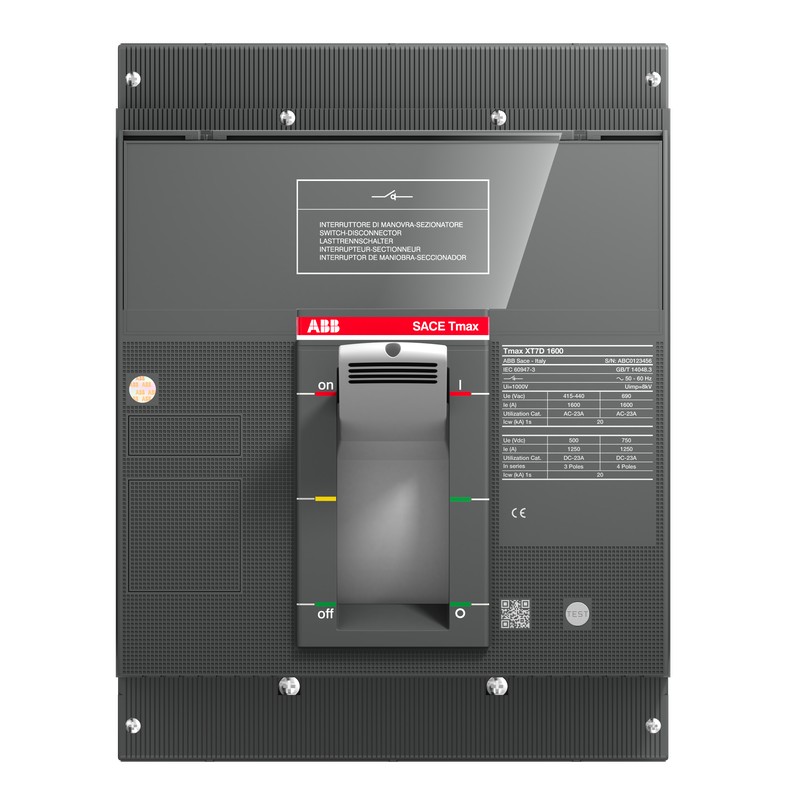

1SDA101906R1 ABB XT7D 1000 3p F F
1SDA101906R1
ABB
XT7D 1000 3p F F
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c251b147-df6a-4828-bdfd-83a754cd7926 Italy |
| Simplified SCIP | 87dce231-c739-48e8-922a-2e4b72f93642 Belgium |
| 07f0a097-faf7-4233-92a1-fd41d04d9988 Spain | |
| 80164238-ebb3-4bf0-9e40-614ee46fb0f5 Hungary | |
| 84cfd3bc-be65-447a-94b6-5c8743960569 France | |
| 32a9a24b-e272-4312-9daf-ff4f040d99a9 Germany | |
| 7f387376-2efa-4c07-a551-14753d1d2f79 Croatia | |
| 0e08a30f-b151-45df-8c8b-520847a25cec Germany | |
| fe053595-509e-4380-b116-ba8e6bb4f363 Czech Republic | |
| f9b21ff4-3bb5-46dc-a16c-abf2555777e9 Germany | |
| a9002ba0-23be-4380-868d-aa751ab2ec1d Denmark | |
| 297fd7e6-655b-40d1-9317-2f1f6f3ea021 Sweden | |
| a0bb97ee-484e-451c-b9cd-a0b4b8f2f522 Belgium | |
| 1936ec22-123f-4ab9-919d-3fbee8a3a8e9 Estonia | |
| 2f501c7f-36ba-491d-a7e8-e1b6488b003c Hungary | |
| ce59f754-3709-40c5-b213-4cd526fa488e Poland | |
| 48839ca3-bc6a-4fa3-8fee-03c2d7f3a2ef Finland | |
| 33524647-cb60-4667-a941-77eab4ef2779 Sweden | |
| 625e5581-51f8-4f27-8614-a142b8c8ca02 Germany | |
| 4a5817da-1709-4a77-8ffa-01b4d4bcdb08 Portugal | |
| 8083c87b-06b5-4c44-80af-41403af3400c France | |
| f2932281-0bd4-493c-94a4-62bd68f75673 Greece | |
| b5b30860-ec8e-4199-b6bf-fe871fe13f3e Poland | |
| 79bb063e-8358-4539-9207-13078ce33808 Netherlands | |
| 85ea1532-f2e6-44bd-88ab-f88af25eb092 Norway | |
| fda36e91-c4f6-4c4d-8bcf-8548231678dc Bulgaria | |
| 45449b8f-1cc3-4c90-b350-aee0b28af240 Poland | |
| 20d3aaff-2e16-4940-bdd0-5dc3d52b9eb8 Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7DE310DDFF000XXX |
| E-Number (Norway) | 4380807 |
| EAN | 8056221019507 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 9.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8056221019507 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| 1SDH002065A1338 | |
| Technical | |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1000 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
