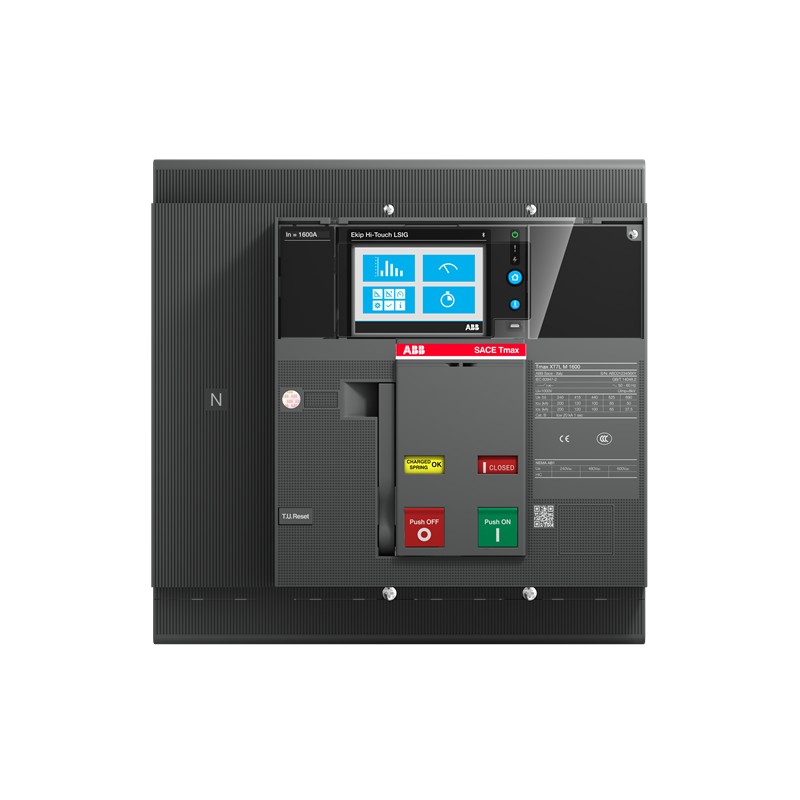

1SDA101687R1 ABB XT7S M 1000 Ekip Hi-Touch LSIG 1000 4pFF
1SDA101687R1
ABB
XT7S M 1000 Ekip Hi-Touch LSIG 1000 4pFF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | e890eb8e-8310-4504-b487-dd0dcecf22ad Italy |
| Simplified SCIP | e5c3ffb7-ea88-4f7a-a724-c20ee7b8517a Germany |
| 6c8635c2-aef0-4958-b033-e34a164bbaa0 Netherlands | |
| b23a9abb-4488-47f6-8834-6af7db522261 Sweden | |
| 99f14eaa-0270-4efc-8bed-07787d275b62 Greece | |
| b1534bd6-ec41-4f23-8a00-c98dacd97915 Norway | |
| 1b3e6467-720f-4ad5-a5c6-7de4e2be9b76 France | |
| e7a30065-9388-4ff3-8f73-a4672a3f9fdc Germany | |
| d32e6279-f939-4351-87df-08dcc9e0af89 Croatia | |
| d1ee760e-d037-4033-948f-a747acae07fa Poland | |
| 07860234-3225-4197-819a-74e80d220b0d Poland | |
| 4abb7f4c-79cb-438d-bfb6-8eae8b348807 Denmark | |
| 99f14eaa-0270-4efc-8bed-07787d275b62 Greece | |
| 99b9fcb5-ba02-4d95-a0d9-005c8985bfc1 Poland | |
| 465501df-35aa-4b10-967a-2edec502c2a1 Portugal | |
| 07860234-3225-4197-819a-74e80d220b0d Poland | |
| 2324ca71-b853-4181-9591-b7cd67764aac Germany | |
| cc32f3f3-1d5f-4737-b7ed-f1e4ffd0d900 Hungary | |
| 1a90b18a-46e6-46bf-a781-d53cc35ea468 France | |
| 46ec90e3-d02b-47fe-9bf8-e5afbf85fdd8 Spain | |
| 0f184c8d-506f-48a6-a89e-50005eb00d4c Germany | |
| e5c3ffb7-ea88-4f7a-a724-c20ee7b8517a Germany | |
| 4e93919f-3615-474c-84a6-71b61e02f301 Estonia | |
| cc32f3f3-1d5f-4737-b7ed-f1e4ffd0d900 Hungary | |
| 2ca459b7-ee3d-4fd7-8637-2745b731781b Belgium | |
| b23a9abb-4488-47f6-8834-6af7db522261 Sweden | |
| 1b3e6467-720f-4ad5-a5c6-7de4e2be9b76 France | |
| d1ee760e-d037-4033-948f-a747acae07fa Poland | |
| b47aaa6b-52e0-440f-9f7e-d09012f6bdb7 Sweden | |
| ce5f18f0-802c-4156-b9c3-e63c87708093 Czech Republic | |
| aa8b1764-ffe1-48a2-94b4-281388560983 Bulgaria | |
| 6c8635c2-aef0-4958-b033-e34a164bbaa0 Netherlands | |
| ce5f18f0-802c-4156-b9c3-e63c87708093 Czech Republic | |
| d32e6279-f939-4351-87df-08dcc9e0af89 Croatia | |
| 465501df-35aa-4b10-967a-2edec502c2a1 Portugal | |
| 0f184c8d-506f-48a6-a89e-50005eb00d4c Germany | |
| c280587a-8d11-4614-acd5-a0d8016ed8d3 Hungary | |
| 1a90b18a-46e6-46bf-a781-d53cc35ea468 France | |
| 99b9fcb5-ba02-4d95-a0d9-005c8985bfc1 Poland | |
| 4e93919f-3615-474c-84a6-71b61e02f301 Estonia | |
| c280587a-8d11-4614-acd5-a0d8016ed8d3 Hungary | |
| 7cd1dd2f-2ede-4223-aa38-16cc9ca617df Finland | |
| e7a30065-9388-4ff3-8f73-a4672a3f9fdc Germany | |
| a5f7796e-13a6-4e52-9408-3911bb2adecc Belgium | |
| 3311c123-8153-434f-abbc-c4eaa0a106a8 Germany | |
| 2324ca71-b853-4181-9591-b7cd67764aac Germany | |
| b47aaa6b-52e0-440f-9f7e-d09012f6bdb7 Sweden | |
| 7cd1dd2f-2ede-4223-aa38-16cc9ca617df Finland | |
| 46ec90e3-d02b-47fe-9bf8-e5afbf85fdd8 Spain | |
| 2ca459b7-ee3d-4fd7-8637-2745b731781b Belgium | |
| a5f7796e-13a6-4e52-9408-3911bb2adecc Belgium | |
| b1534bd6-ec41-4f23-8a00-c98dacd97915 Norway | |
| 3311c123-8153-434f-abbc-c4eaa0a106a8 Germany | |
| aa8b1764-ffe1-48a2-94b4-281388560983 Bulgaria | |
| 4abb7f4c-79cb-438d-bfb6-8eae8b348807 Denmark | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XSEFLFAZZAAAA00000 |
| EAN | 8056221017312 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221017312 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Hi-Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1000 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 10000 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1500.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
