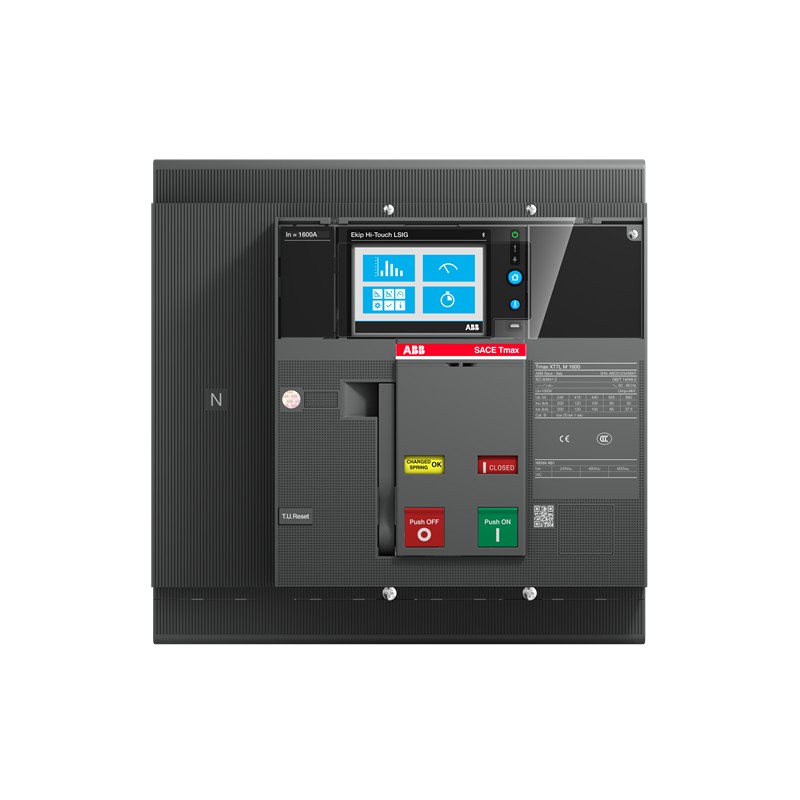

1SDA101683R1 ABB XT7S M 1000 Ekip Hi-Touch LSI 1000 4p FF
1SDA101683R1
ABB
XT7S M 1000 Ekip Hi-Touch LSI 1000 4p FF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | a89d1a80-5a2f-4a00-9d5e-479a318004b7 Italy |
| Simplified SCIP | 3e042640-a69b-4571-920c-1f26ab59bb7b Germany |
| 8b831bbc-397a-4721-8b06-d66cb7c4a125 Denmark | |
| 39366713-38d3-4eac-85c6-a643558a3495 Bulgaria | |
| 069486fb-dbcc-416c-8957-158da849c49f Norway | |
| 5624873f-3757-4bd9-908b-48d330546134 Belgium | |
| fc255db5-cc47-4a06-b16a-b978ee2852e4 Finland | |
| 147402e5-209d-4843-aef3-d612b238a801 Poland | |
| affca1bb-e49d-4a3b-9632-49c6408e6fc7 Spain | |
| 33ec4a66-da9f-4177-971c-8049adfacb83 Belgium | |
| 5624873f-3757-4bd9-908b-48d330546134 Belgium | |
| fc255db5-cc47-4a06-b16a-b978ee2852e4 Finland | |
| 5c6b6038-d819-41fa-bd4c-cbf042b98d3a Germany | |
| 3e042640-a69b-4571-920c-1f26ab59bb7b Germany | |
| 9bd130c0-fc16-44f4-b025-f23fea3f04d0 Germany | |
| e61fa5d9-668c-451a-923e-3241a451c313 Sweden | |
| 8b831bbc-397a-4721-8b06-d66cb7c4a125 Denmark | |
| 147402e5-209d-4843-aef3-d612b238a801 Poland | |
| 5752ae16-c41d-40bf-b91e-e483e822ba51 Poland | |
| 9bd130c0-fc16-44f4-b025-f23fea3f04d0 Germany | |
| 5b1eeb70-89ef-4ac0-ac1f-23142a18f7de Portugal | |
| 8efc4c35-c25c-4169-aa4d-3347e4a71441 Greece | |
| 6a0648c9-3f7e-4254-b828-8ee9e6eac081 Netherlands | |
| 7fde4070-40e5-4f1e-ae0a-1df6db29ee4a Sweden | |
| b0ea4b87-cd0c-4ab6-9086-e7361935503b Germany | |
| 2d116960-c490-42cb-96aa-434ded0788a8 Germany | |
| 5b1eeb70-89ef-4ac0-ac1f-23142a18f7de Portugal | |
| ddfe6e3f-c071-44de-bff5-8efc602903ca Poland | |
| 069486fb-dbcc-416c-8957-158da849c49f Norway | |
| b6665c75-9cac-4db1-983d-ac06d86127b1 Croatia | |
| 5c6b6038-d819-41fa-bd4c-cbf042b98d3a Germany | |
| 8efc4c35-c25c-4169-aa4d-3347e4a71441 Greece | |
| 26f11a1e-3b85-4313-a401-02cfad2548ea France | |
| 9f6e24ec-8adf-4060-92a3-e5368bc8a682 Hungary | |
| 6644a1c1-6e53-4048-9c50-ac0ce86fb0dc France | |
| 2d116960-c490-42cb-96aa-434ded0788a8 Germany | |
| b0ea4b87-cd0c-4ab6-9086-e7361935503b Germany | |
| affca1bb-e49d-4a3b-9632-49c6408e6fc7 Spain | |
| c1dced5a-7220-4c2d-8198-ce899feb41b1 Estonia | |
| 39366713-38d3-4eac-85c6-a643558a3495 Bulgaria | |
| afa630b7-609e-46d4-9235-f68d02806d8d Czech Republic | |
| 3b7a94ab-89eb-40b6-8289-7a7aaded2a09 Hungary | |
| b6665c75-9cac-4db1-983d-ac06d86127b1 Croatia | |
| afa630b7-609e-46d4-9235-f68d02806d8d Czech Republic | |
| 6a0648c9-3f7e-4254-b828-8ee9e6eac081 Netherlands | |
| 9f6e24ec-8adf-4060-92a3-e5368bc8a682 Hungary | |
| 5752ae16-c41d-40bf-b91e-e483e822ba51 Poland | |
| 3b7a94ab-89eb-40b6-8289-7a7aaded2a09 Hungary | |
| 6644a1c1-6e53-4048-9c50-ac0ce86fb0dc France | |
| 26f11a1e-3b85-4313-a401-02cfad2548ea France | |
| 7fde4070-40e5-4f1e-ae0a-1df6db29ee4a Sweden | |
| 33ec4a66-da9f-4177-971c-8049adfacb83 Belgium | |
| c1dced5a-7220-4c2d-8198-ce899feb41b1 Estonia | |
| e61fa5d9-668c-451a-923e-3241a451c313 Sweden | |
| ddfe6e3f-c071-44de-bff5-8efc602903ca Poland | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XSEFJFAZZAAAA00000 |
| E-Number (Norway) | 4380906 |
| EAN | 8056221017275 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221017275 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Hi-Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1000 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 10000 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1500.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
