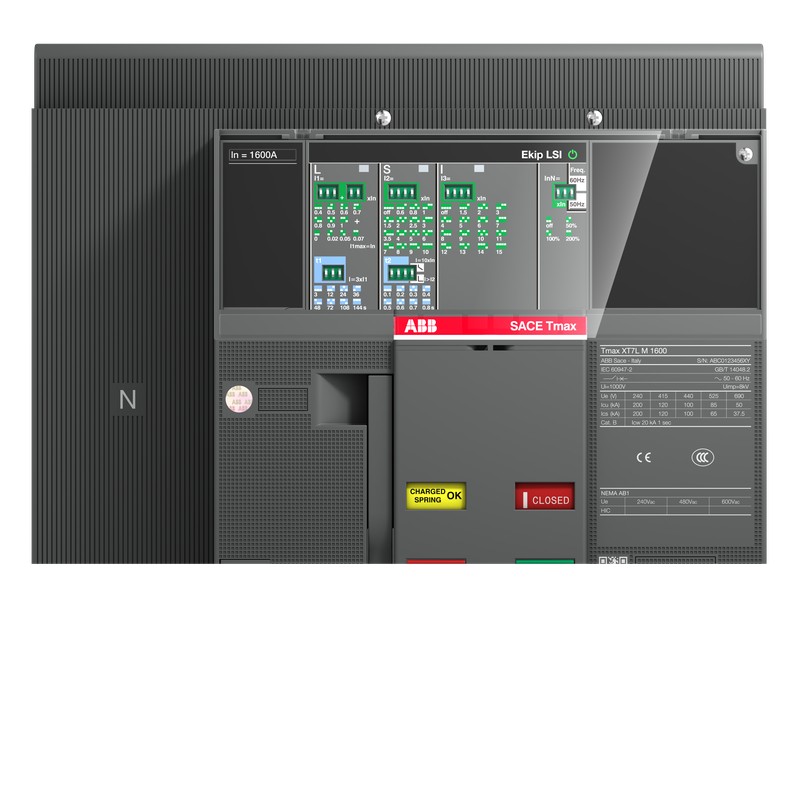

1SDA101659R1 ABB XT7S M 1000 Ekip Dip LSI In 1000A 4p F F
1SDA101659R1
ABB
XT7S M 1000 Ekip Dip LSI In=1000A 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 00956c8c-7c1c-4406-a426-e5b7a1e715d1 Italy |
| Simplified SCIP | 7d62b807-80ca-4534-9335-0180f6d9e9ed Poland |
| 53ad3124-2ea8-4a74-9098-0f02035295dd France | |
| 7d0ad486-1b65-4f63-ac31-b85161d68503 Greece | |
| e30034ab-d955-43a4-94e3-7bc247da1017 Croatia | |
| 60d450ce-3594-41fb-bced-be6ff04090ac Norway | |
| 771af2ce-c93d-4af6-913d-9f75ab8d51c8 Poland | |
| 6aa99978-92de-4cb2-98da-3fb095df9cef Denmark | |
| 1f93f8ed-e9ac-4e97-9d48-182126160308 Germany | |
| 3e194c69-5a1a-4105-a9e1-7a1dd8c122ee Netherlands | |
| b38b6b76-b6fc-471c-adf9-e2577dd9f8d0 Sweden | |
| 0eaf8192-8d10-4548-9eaa-d0ee2cce5f4c Germany | |
| e30034ab-d955-43a4-94e3-7bc247da1017 Croatia | |
| 1f498897-e6e4-4b34-b049-4b3d9e87f9d3 Portugal | |
| 59c19ba7-252c-4956-b1b4-cd726d7ab2b1 Germany | |
| 771af2ce-c93d-4af6-913d-9f75ab8d51c8 Poland | |
| b489b3b1-d157-4b94-b704-2d80bda795e6 Spain | |
| e7f65c72-2ed5-41fd-98fb-55bd284b0420 Finland | |
| ad9ea00e-e53c-4e01-96e5-31f09cbaaac3 Germany | |
| d2916da0-6373-4a8f-b8cf-be71d31782df Poland | |
| 7d0ad486-1b65-4f63-ac31-b85161d68503 Greece | |
| 1f498897-e6e4-4b34-b049-4b3d9e87f9d3 Portugal | |
| 8cdcbd92-f5da-49c9-8057-f12903b73eb8 Sweden | |
| a23a2609-a276-4dbf-a595-7448d3bc3c1e France | |
| 59c19ba7-252c-4956-b1b4-cd726d7ab2b1 Germany | |
| 0f9e50a9-5473-4cbf-b374-28ff55a991e6 Hungary | |
| b489b3b1-d157-4b94-b704-2d80bda795e6 Spain | |
| 0f9e50a9-5473-4cbf-b374-28ff55a991e6 Hungary | |
| 065af33a-a62f-48f9-945b-c335a9b5f754 Estonia | |
| d2916da0-6373-4a8f-b8cf-be71d31782df Poland | |
| a23a2609-a276-4dbf-a595-7448d3bc3c1e France | |
| dc473b11-7a8b-448e-9c14-cd794776a494 Hungary | |
| 065af33a-a62f-48f9-945b-c335a9b5f754 Estonia | |
| dc473b11-7a8b-448e-9c14-cd794776a494 Hungary | |
| 2a947992-39b3-43bc-95a1-9c71e45388df Czech Republic | |
| 3b8536be-7bbf-4056-aae8-1b60a77151bc Bulgaria | |
| 3e194c69-5a1a-4105-a9e1-7a1dd8c122ee Netherlands | |
| 2a947992-39b3-43bc-95a1-9c71e45388df Czech Republic | |
| b38b6b76-b6fc-471c-adf9-e2577dd9f8d0 Sweden | |
| 53ad3124-2ea8-4a74-9098-0f02035295dd France | |
| 0eaf8192-8d10-4548-9eaa-d0ee2cce5f4c Germany | |
| 8cdcbd92-f5da-49c9-8057-f12903b73eb8 Sweden | |
| 7d62b807-80ca-4534-9335-0180f6d9e9ed Poland | |
| ec8ced76-b40f-4a28-aaf0-a1b4460d8dce Belgium | |
| 8fb6dc85-ce64-4008-95c2-fa3c04162bf8 Belgium | |
| 1f93f8ed-e9ac-4e97-9d48-182126160308 Germany | |
| e7f65c72-2ed5-41fd-98fb-55bd284b0420 Finland | |
| 4a849e95-3a97-4be6-92cb-99f0af61a66b Germany | |
| ad9ea00e-e53c-4e01-96e5-31f09cbaaac3 Germany | |
| 3b8536be-7bbf-4056-aae8-1b60a77151bc Bulgaria | |
| 6aa99978-92de-4cb2-98da-3fb095df9cef Denmark | |
| 8fb6dc85-ce64-4008-95c2-fa3c04162bf8 Belgium | |
| 60d450ce-3594-41fb-bced-be6ff04090ac Norway | |
| 4a849e95-3a97-4be6-92cb-99f0af61a66b Germany | |
| ec8ced76-b40f-4a28-aaf0-a1b4460d8dce Belgium | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XSEFCFAZZAAAA00000 |
| E-Number (Norway) | 4380890 |
| EAN | 8056221017039 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 14 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 15.5 kg |
| Package Level 1 EAN | 8056221017039 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1000 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1000 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1000 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA101659R1 1SDA101659R1 EN_1SDA101659R1.pdf | 649 Kbytes |
|
