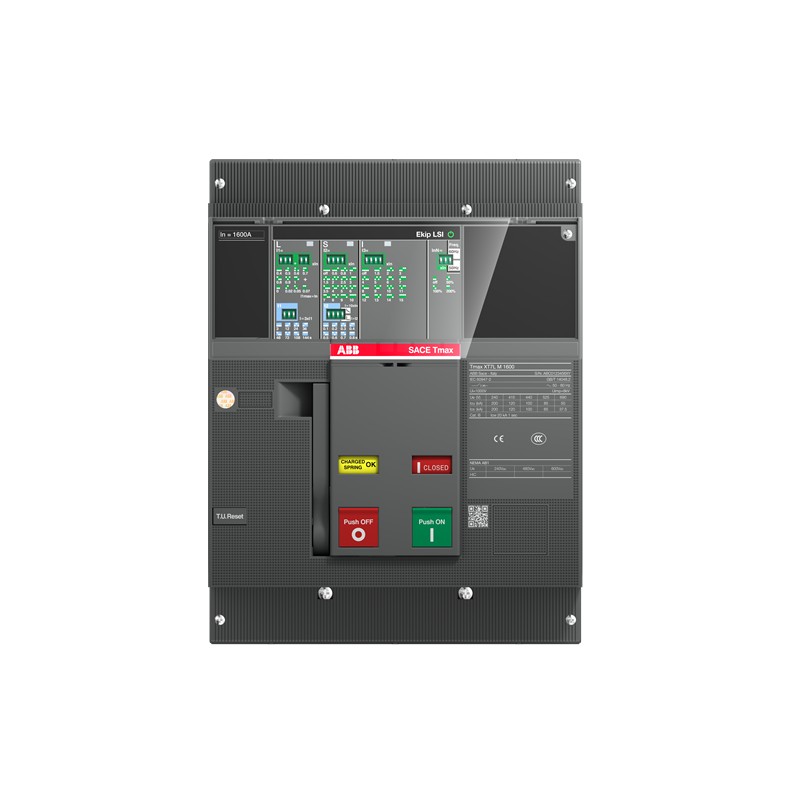

1SDA101502R1 ABB XT7L M 800 Ekip Dip LSIG In 800A 3p F F
1SDA101502R1
ABB
XT7L M 800 Ekip Dip LSIG In=800A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 28774104-d2ce-49af-8ea2-7387d59ca693 Italy |
| Simplified SCIP | 140ac80b-77d6-4156-9628-458bfe262622 Belgium |
| c1007fa3-fa95-4925-914b-f4b1a88105d5 Finland | |
| 6a29085c-d2cb-4c48-96bd-c37c15d0c86e Spain | |
| eb7ddac8-d159-4ec5-9c62-94950b4558e9 Poland | |
| 79f07957-8685-4f7f-a44f-87ea848a543d Belgium | |
| e84af63e-9002-49b0-8933-5f760acbdcf7 Norway | |
| 5f4c6f7a-7da5-4c08-9faf-0ca4d3dee517 Germany | |
| 8e724e78-9598-464d-b8d4-47d308f406ef Bulgaria | |
| 6f6fe3be-d092-413c-9d58-4e67480f0283 Denmark | |
| 5f4c6f7a-7da5-4c08-9faf-0ca4d3dee517 Germany | |
| 4bf614c0-a8c1-48ae-a940-065c6ae23bfd Sweden | |
| a54ad111-4c5a-447c-b264-fe08bc52892f Czech Republic | |
| 1413b4b6-0d4c-47dc-bc58-b4726ccd77b5 Germany | |
| 6f6fe3be-d092-413c-9d58-4e67480f0283 Denmark | |
| eb7ddac8-d159-4ec5-9c62-94950b4558e9 Poland | |
| 9952ef27-3ddf-4a59-87b9-edcc9f83c896 Poland | |
| 1a1f94ca-ef95-4f46-a557-2b8a7733e948 Germany | |
| c1007fa3-fa95-4925-914b-f4b1a88105d5 Finland | |
| 79f07957-8685-4f7f-a44f-87ea848a543d Belgium | |
| 1413b4b6-0d4c-47dc-bc58-b4726ccd77b5 Germany | |
| 642649c1-76d5-4ee1-987e-7142b6cc3f11 Greece | |
| 1dfc0064-7e35-48ed-819f-01eb55f853ca Portugal | |
| f56752b9-55c2-4954-85ce-808b6fabfa27 Poland | |
| 1a1f94ca-ef95-4f46-a557-2b8a7733e948 Germany | |
| 5ddd3924-b193-4515-804b-629f453e2fdd France | |
| 642649c1-76d5-4ee1-987e-7142b6cc3f11 Greece | |
| 6a14b8ed-6db1-467f-9f4c-2dcb1c0e9294 Croatia | |
| e84af63e-9002-49b0-8933-5f760acbdcf7 Norway | |
| 05407f03-cfa3-4b93-bbc3-49171f6d9df6 Netherlands | |
| a17a0176-3b46-41f7-9c17-51319e60465c Sweden | |
| 38b27594-7f74-4e99-8aff-e956c51b63fe Germany | |
| 1dfc0064-7e35-48ed-819f-01eb55f853ca Portugal | |
| e03aad2d-ae6d-4a82-9a32-a61111bea778 Germany | |
| 38b27594-7f74-4e99-8aff-e956c51b63fe Germany | |
| e03aad2d-ae6d-4a82-9a32-a61111bea778 Germany | |
| a073c8db-4286-4b55-a680-fc727b50843e Hungary | |
| f74086f0-c056-4692-80c3-35514aacb34e France | |
| 6a29085c-d2cb-4c48-96bd-c37c15d0c86e Spain | |
| 140ac80b-77d6-4156-9628-458bfe262622 Belgium | |
| c3edfaa0-21b1-4b31-bc11-3729fdafe38e Estonia | |
| 9952ef27-3ddf-4a59-87b9-edcc9f83c896 Poland | |
| 4bf614c0-a8c1-48ae-a940-065c6ae23bfd Sweden | |
| a17a0176-3b46-41f7-9c17-51319e60465c Sweden | |
| 5ddd3924-b193-4515-804b-629f453e2fdd France | |
| f56752b9-55c2-4954-85ce-808b6fabfa27 Poland | |
| 05b4885a-b8f2-4e0b-b50b-e87b569b59d1 Hungary | |
| a073c8db-4286-4b55-a680-fc727b50843e Hungary | |
| f74086f0-c056-4692-80c3-35514aacb34e France | |
| 8e724e78-9598-464d-b8d4-47d308f406ef Bulgaria | |
| 05407f03-cfa3-4b93-bbc3-49171f6d9df6 Netherlands | |
| a54ad111-4c5a-447c-b264-fe08bc52892f Czech Republic | |
| 6a14b8ed-6db1-467f-9f4c-2dcb1c0e9294 Croatia | |
| 05b4885a-b8f2-4e0b-b50b-e87b569b59d1 Hungary | |
| c3edfaa0-21b1-4b31-bc11-3729fdafe38e Estonia | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XLECDFAZZAAAA00000 |
| EAN | 8056221013130 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 9.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8056221013130 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1337 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 800 A |
| Adjustment range undelayed short-circuit release (EF007131) | 800 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
