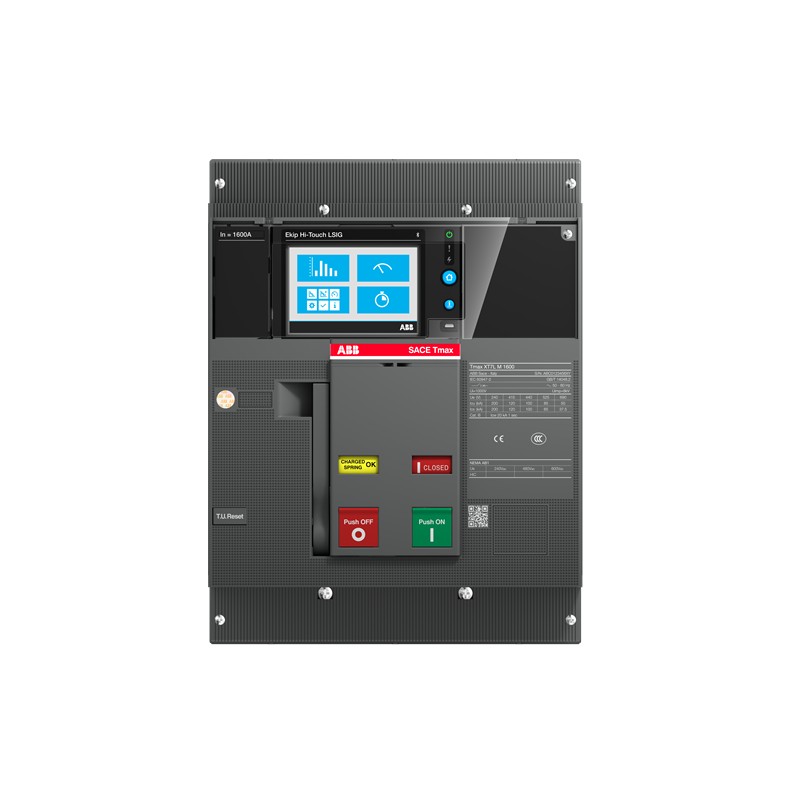

1SDA101456R1 ABB XT7H M 1250 EkipTouchMeas.LSIG 1250 3pFF
1SDA101456R1
ABB
XT7H M 1250 EkipTouchMeas.LSIG 1250 3pFF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 9673ee2c-12bc-4a55-95b0-995397842b18 Italy |
| Simplified SCIP | 0e963215-bc12-4ddb-9c39-73eb5d1865cb Czech Republic |
| 45b1ca8a-6a6f-434e-972b-f770483c3489 Belgium | |
| 28911a6d-f97a-492e-b9e8-ca6cb00f294c Spain | |
| 66c8fd66-b443-4a45-b57f-cae80cacd92e Hungary | |
| 4d975bcb-7782-47ab-b1c7-0da76c38975f Estonia | |
| eb5a675f-2b9d-4736-8e68-2c3a6749aefe France | |
| b024b702-ebaf-45ea-8313-35dd923528fc Poland | |
| 4d975bcb-7782-47ab-b1c7-0da76c38975f Estonia | |
| 303ecccc-9d7a-428f-be2e-c5f723c828ee Bulgaria | |
| 1cd30fcb-30aa-451c-be4e-8c821a0628fb Hungary | |
| 54fbc6f2-a0ea-4720-9344-9cdd74ccfe75 Germany | |
| e9380898-7501-4990-814f-e301e61209a4 Sweden | |
| 819742b0-a503-4666-ba8f-7649a4667841 Germany | |
| c581f837-54dd-483e-978e-d2a76fdbfa9f France | |
| c4fac4b6-dba2-4bf4-9d61-dbaaf34476f9 Poland | |
| 38d45e00-e9d5-4850-9c1f-2b83a041451b Sweden | |
| b024b702-ebaf-45ea-8313-35dd923528fc Poland | |
| 81da4541-4586-4c79-b350-a756821aaebf Portugal | |
| 10d44c55-6cae-4d8a-9512-790fc107e643 Poland | |
| 739280a2-76f0-4b10-ac78-28f1dd73cfd0 Germany | |
| 714a4adb-16bc-46c5-9ea9-283a1a13139d Greece | |
| 76370ecb-41c4-415c-ac37-7744db464c81 Belgium | |
| 914993f1-78f7-4687-9b28-79b94456e3d0 Finland | |
| 4322ed29-dcd2-4a79-b96a-4154eb21e46a Germany | |
| 38d45e00-e9d5-4850-9c1f-2b83a041451b Sweden | |
| 0e963215-bc12-4ddb-9c39-73eb5d1865cb Czech Republic | |
| c4fac4b6-dba2-4bf4-9d61-dbaaf34476f9 Poland | |
| 739280a2-76f0-4b10-ac78-28f1dd73cfd0 Germany | |
| bb8afd89-78b0-485c-aeb1-5ef2ca337432 Denmark | |
| 10d44c55-6cae-4d8a-9512-790fc107e643 Poland | |
| f6bb2a66-7f81-4d70-8313-6a6fd1cdf755 Norway | |
| 4322ed29-dcd2-4a79-b96a-4154eb21e46a Germany | |
| 76370ecb-41c4-415c-ac37-7744db464c81 Belgium | |
| 45b1ca8a-6a6f-434e-972b-f770483c3489 Belgium | |
| ae718949-e902-4e6e-8f8c-37e1dbcac5bd Germany | |
| 303ecccc-9d7a-428f-be2e-c5f723c828ee Bulgaria | |
| bb8afd89-78b0-485c-aeb1-5ef2ca337432 Denmark | |
| 28911a6d-f97a-492e-b9e8-ca6cb00f294c Spain | |
| 66c8fd66-b443-4a45-b57f-cae80cacd92e Hungary | |
| eb5a675f-2b9d-4736-8e68-2c3a6749aefe France | |
| e9380898-7501-4990-814f-e301e61209a4 Sweden | |
| ae718949-e902-4e6e-8f8c-37e1dbcac5bd Germany | |
| 914993f1-78f7-4687-9b28-79b94456e3d0 Finland | |
| a1286026-80e1-4a64-b1ab-e51928828859 Netherlands | |
| 714a4adb-16bc-46c5-9ea9-283a1a13139d Greece | |
| f6bb2a66-7f81-4d70-8313-6a6fd1cdf755 Norway | |
| a5566502-aef0-4c84-9644-160bc1ece69c Croatia | |
| c581f837-54dd-483e-978e-d2a76fdbfa9f France | |
| 819742b0-a503-4666-ba8f-7649a4667841 Germany | |
| 81da4541-4586-4c79-b350-a756821aaebf Portugal | |
| 1cd30fcb-30aa-451c-be4e-8c821a0628fb Hungary | |
| a5566502-aef0-4c84-9644-160bc1ece69c Croatia | |
| 54fbc6f2-a0ea-4720-9344-9cdd74ccfe75 Germany | |
| a1286026-80e1-4a64-b1ab-e51928828859 Netherlands | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XHEJHFAZZAAAA00000 |
| EAN | 8056221012706 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 9.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8056221012706 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1337 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Touch Measuring LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1250 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 12500 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1875.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
