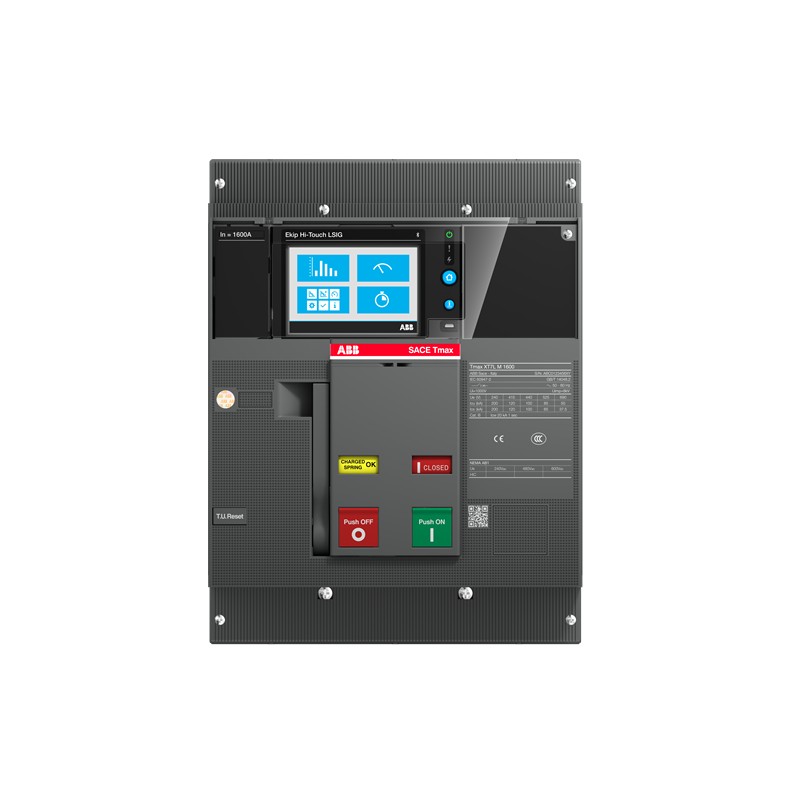

1SDA101450R1 ABB XT7H M 800 Ekip Touch Meas.LSI 800 3p FF
1SDA101450R1
ABB
XT7H M 800 Ekip Touch Meas.LSI 800 3p FF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 403078e1-1923-4f99-ba4d-c6dde8f3fdfc Italy |
| Simplified SCIP | d735a794-6981-4a60-a5d9-e5c22df2c3d7 Sweden |
| 74cfc42b-e89a-4966-8d50-f73ab9b3792e Poland | |
| 483ee632-c97b-464e-919b-11c7dafdd75c France | |
| 0991705c-2f1d-43f8-8fa8-d0d05d1a8b17 Germany | |
| bddf1ab0-36f4-4d13-b84e-27da29b2289f Sweden | |
| a64d657d-b111-4512-980b-9079a74ac29f Germany | |
| 4c676ef5-235d-4052-b59a-e7f01606f204 Estonia | |
| d19a6965-5da8-4046-94bc-d3e1b57576ef Belgium | |
| d0186f31-aa15-4b74-8090-adae701ed95e Hungary | |
| d2ce5b2b-611c-4b32-b8d1-32f04a61cb6f France | |
| 41a659b9-d04e-4c31-82bc-425b5e137c38 Poland | |
| ee340534-d7c0-41d5-90c3-35aeea74efe6 Hungary | |
| 4c676ef5-235d-4052-b59a-e7f01606f204 Estonia | |
| da097ff0-d1df-40b5-af92-5abed7959089 Czech Republic | |
| 4ed79817-fbee-45a8-8ff2-fedfe4de6ab9 Bulgaria | |
| ef8dc18c-2e62-4490-8e8a-2ff2f9ec750f Netherlands | |
| 2298a2d0-fca6-44e2-b14f-a62c86180c88 Greece | |
| 6018346e-aea3-4545-b894-0bd0979804ef Portugal | |
| 937ae483-56b2-4a9a-9313-0d2b30467d22 Germany | |
| 41a659b9-d04e-4c31-82bc-425b5e137c38 Poland | |
| 4efdcd0c-43c2-4889-a8e0-ff00e4618912 Spain | |
| 293ef280-518f-449c-b715-823cdceb3134 Poland | |
| 05f97bb2-78d7-4e64-81f5-df7c7f6fe346 Germany | |
| d735a794-6981-4a60-a5d9-e5c22df2c3d7 Sweden | |
| 4c41513c-278c-4d40-ad9f-6dd7e11c1b3c Belgium | |
| 7d23d06f-5232-46fd-a494-1eec282e5554 Finland | |
| 937ae483-56b2-4a9a-9313-0d2b30467d22 Germany | |
| da097ff0-d1df-40b5-af92-5abed7959089 Czech Republic | |
| 74cfc42b-e89a-4966-8d50-f73ab9b3792e Poland | |
| 293ef280-518f-449c-b715-823cdceb3134 Poland | |
| 280e3457-f08e-4c58-bf61-2593e86ea940 Denmark | |
| dee8453d-7e3f-4e1e-91b1-347e983c3491 Germany | |
| 4ed79817-fbee-45a8-8ff2-fedfe4de6ab9 Bulgaria | |
| 280e3457-f08e-4c58-bf61-2593e86ea940 Denmark | |
| 05f97bb2-78d7-4e64-81f5-df7c7f6fe346 Germany | |
| d19a6965-5da8-4046-94bc-d3e1b57576ef Belgium | |
| e1587719-5060-4b56-a0c6-5450ba542973 Norway | |
| 4c41513c-278c-4d40-ad9f-6dd7e11c1b3c Belgium | |
| 4efdcd0c-43c2-4889-a8e0-ff00e4618912 Spain | |
| d0186f31-aa15-4b74-8090-adae701ed95e Hungary | |
| d2ce5b2b-611c-4b32-b8d1-32f04a61cb6f France | |
| 0991705c-2f1d-43f8-8fa8-d0d05d1a8b17 Germany | |
| a64d657d-b111-4512-980b-9079a74ac29f Germany | |
| 6018346e-aea3-4545-b894-0bd0979804ef Portugal | |
| 7656ad34-9ffb-4384-88fa-855db4b02fb2 Croatia | |
| ee340534-d7c0-41d5-90c3-35aeea74efe6 Hungary | |
| 7656ad34-9ffb-4384-88fa-855db4b02fb2 Croatia | |
| 2298a2d0-fca6-44e2-b14f-a62c86180c88 Greece | |
| e1587719-5060-4b56-a0c6-5450ba542973 Norway | |
| 483ee632-c97b-464e-919b-11c7dafdd75c France | |
| bddf1ab0-36f4-4d13-b84e-27da29b2289f Sweden | |
| ef8dc18c-2e62-4490-8e8a-2ff2f9ec750f Netherlands | |
| dee8453d-7e3f-4e1e-91b1-347e983c3491 Germany | |
| 7d23d06f-5232-46fd-a494-1eec282e5554 Finland | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XHECGFAZZAAAA00000 |
| E-Number (Norway) | 4380763 |
| EAN | 8056221012645 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 9.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8056221012645 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1337 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Touch Measuring LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 480.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1200.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
