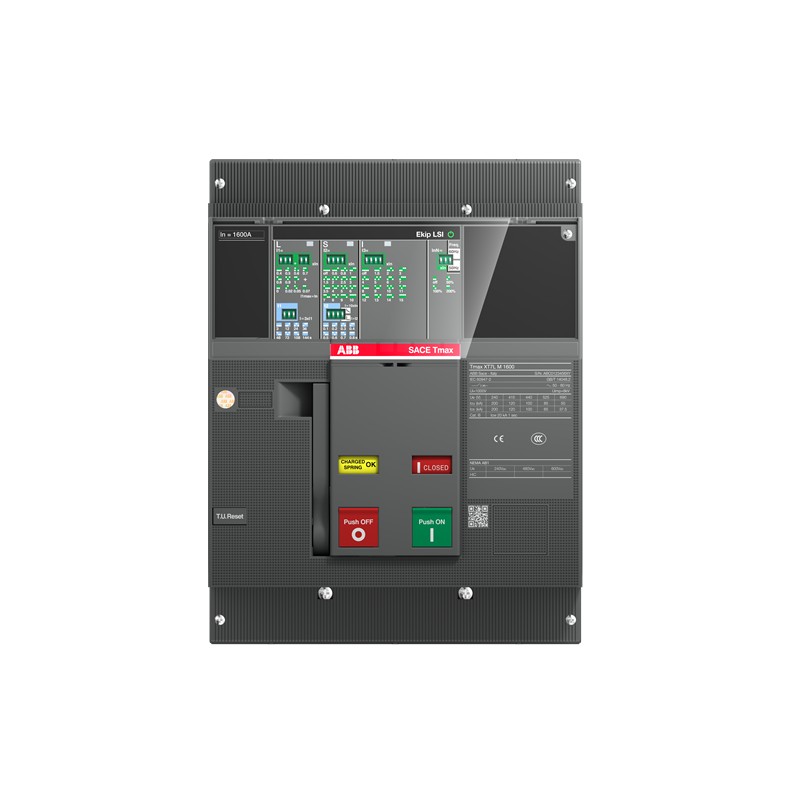

1SDA101372R1 ABB XT7S M 1250 Ekip Dip LSI In 1250A 3p F F
1SDA101372R1
ABB
XT7S M 1250 Ekip Dip LSI In=1250A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 412a5a3d-84b5-4bca-a0ab-7b02594ff4c3 Italy |
| Simplified SCIP | c085b032-20e1-4218-9811-0b610c2457ab Germany |
| 95511561-b483-4f23-b98a-dd744d3beffa Sweden | |
| 86b1187b-db05-4b12-bfe3-61988c856882 Sweden | |
| a5a3a8a6-2222-4dcd-8366-77cf20c683aa Belgium | |
| b5123e47-dbc3-4327-9760-752f9ed6693d France | |
| a164bfc4-98e6-4dd6-899e-46b45e4dee9b Poland | |
| aac7a925-60a6-41f4-bf2e-795b1c28d087 Czech Republic | |
| a8085eba-cce8-4985-b250-8c9506347f4a Bulgaria | |
| aac7a925-60a6-41f4-bf2e-795b1c28d087 Czech Republic | |
| 37560c35-6018-439f-a3c6-d3f664cc4b65 Netherlands | |
| 7d77f619-02be-4ee8-85e7-f2dc7bd439c1 Germany | |
| 6a7fad4c-b3cb-4a3c-9ac5-aeed9977dc1f Portugal | |
| c67e8334-b904-45bb-87cb-db78e6ee4ec8 Croatia | |
| 03b6b7eb-6f66-407f-8089-fe64a8d87fef Hungary | |
| f6e31878-5cb4-4594-b6ee-6cdba7bd02af Poland | |
| 6101fb52-3495-48a6-bc89-a37120ffc727 France | |
| 2fba9c01-76f9-4833-b2f7-37cbb4b906f9 Estonia | |
| 2fba9c01-76f9-4833-b2f7-37cbb4b906f9 Estonia | |
| 03b6b7eb-6f66-407f-8089-fe64a8d87fef Hungary | |
| 1a61a7dd-0778-44b4-b809-3522874ae4da Hungary | |
| 7d77f619-02be-4ee8-85e7-f2dc7bd439c1 Germany | |
| 6101fb52-3495-48a6-bc89-a37120ffc727 France | |
| 1a61a7dd-0778-44b4-b809-3522874ae4da Hungary | |
| c18acb80-c8a0-4fbd-aa0c-9909ca38d4fd Spain | |
| a8085eba-cce8-4985-b250-8c9506347f4a Bulgaria | |
| 7bc652ff-c764-4527-a715-9e3eac9e847b Denmark | |
| c18acb80-c8a0-4fbd-aa0c-9909ca38d4fd Spain | |
| ffce5be4-5d15-4764-8d9c-d18bfafd874a Poland | |
| 255e50a3-1282-41e3-a0f1-cfa8beab6566 Finland | |
| a5a3a8a6-2222-4dcd-8366-77cf20c683aa Belgium | |
| 4e5b872f-a713-43a1-8210-c32931baad84 Belgium | |
| 2db83358-f86e-4e36-b246-70a60c4a2f62 Germany | |
| 028727d1-c0b4-45df-8d95-7f09267b7a17 Norway | |
| 86b1187b-db05-4b12-bfe3-61988c856882 Sweden | |
| 3183b889-124b-42ef-830f-d61c81fd164b Germany | |
| 2db83358-f86e-4e36-b246-70a60c4a2f62 Germany | |
| f848f1e8-65f4-4478-a9ae-65cbc2636800 Germany | |
| 255e50a3-1282-41e3-a0f1-cfa8beab6566 Finland | |
| 4e5b872f-a713-43a1-8210-c32931baad84 Belgium | |
| c67e8334-b904-45bb-87cb-db78e6ee4ec8 Croatia | |
| 3afeb549-1cfc-41fb-9280-c3aafd6bae51 Greece | |
| 028727d1-c0b4-45df-8d95-7f09267b7a17 Norway | |
| b5123e47-dbc3-4327-9760-752f9ed6693d France | |
| ffce5be4-5d15-4764-8d9c-d18bfafd874a Poland | |
| 7bc652ff-c764-4527-a715-9e3eac9e847b Denmark | |
| a164bfc4-98e6-4dd6-899e-46b45e4dee9b Poland | |
| c085b032-20e1-4218-9811-0b610c2457ab Germany | |
| 37560c35-6018-439f-a3c6-d3f664cc4b65 Netherlands | |
| f848f1e8-65f4-4478-a9ae-65cbc2636800 Germany | |
| 95511561-b483-4f23-b98a-dd744d3beffa Sweden | |
| f6e31878-5cb4-4594-b6ee-6cdba7bd02af Poland | |
| 3183b889-124b-42ef-830f-d61c81fd164b Germany | |
| 3afeb549-1cfc-41fb-9280-c3aafd6bae51 Greece | |
| 6a7fad4c-b3cb-4a3c-9ac5-aeed9977dc1f Portugal | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XSEJCFAZZAAAA00000 |
| E-Number (Norway) | 4380717 |
| EAN | 8056221011907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 11 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 12.5 kg |
| Package Level 1 EAN | 8056221011907 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1337 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1250 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1250 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1250 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
