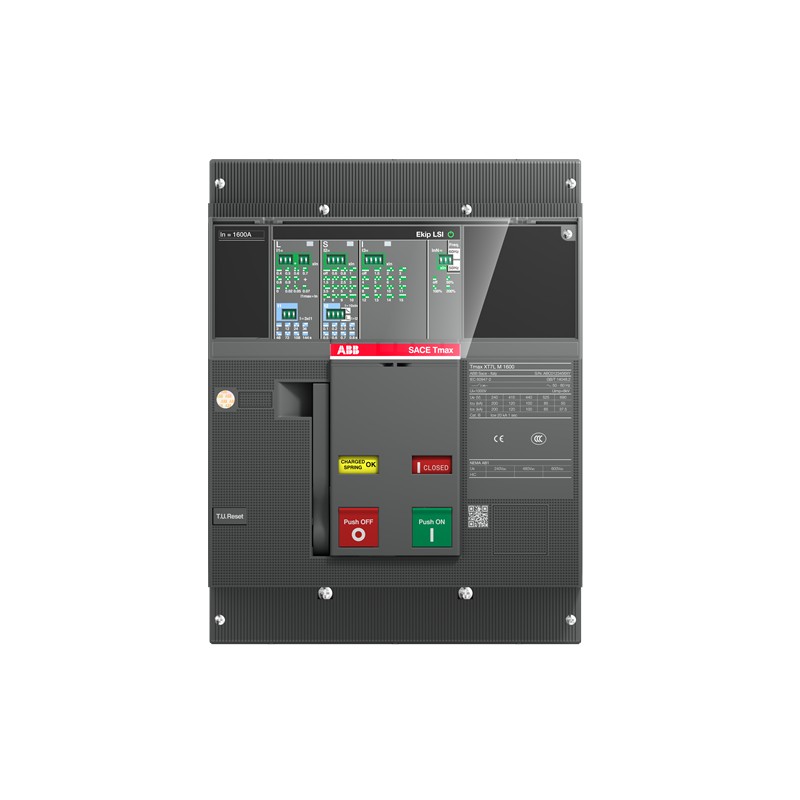

1SDA101366R1 ABB XT7S M 800 Ekip Dip LS/I In 800A 3p F F
1SDA101366R1
ABB
XT7S M 800 Ekip Dip LS/I In=800A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b9104628-c701-4da2-884e-ef4788561080 Italy |
| Simplified SCIP | b3c498db-8293-4260-85ee-8ac32aaf2464 Germany |
| 2b1dec6f-dcbf-41b3-8bc8-cc507db6658b Germany | |
| 8d9267db-2bad-4c8d-8ed8-8316a60a0803 Denmark | |
| f4b1bc98-e4e2-4eb4-983b-fae6f40993c9 Germany | |
| a58eb7c8-3ab5-4e60-b666-ca4fb0ff840a Croatia | |
| fb7ee77e-46d9-4979-9d01-b3e1531e748a Czech Republic | |
| 14f4a852-958f-444a-b029-c914247a6030 Poland | |
| 4357a338-89e9-43e5-8baf-5deb48315089 Netherlands | |
| 1a930690-1e0e-40eb-8935-2f105d139469 Netherlands | |
| bc131467-79ce-455b-8b0b-bec83fbda032 Estonia | |
| 5a975bb7-0501-452b-b7c0-a3196637d486 Greece | |
| 01449d32-838d-4ec4-9335-a2a4fcb5e4a8 Portugal | |
| 5c235cae-95fb-45ae-9ae8-bb0c55afb61b Bulgaria | |
| 1e96e278-ea5c-4d46-acc1-1ef88cc5d930 Sweden | |
| e8338b5a-db3c-49c1-8dd4-812c65bb0a9d Poland | |
| a7882aec-a304-452b-8580-21f4e9a3051e France | |
| d226bad3-fb9e-49be-b497-1e044f820f85 Sweden | |
| 8b002a7b-ad1e-44e8-bf65-0c96908551a3 Germany | |
| a848257d-8646-4daa-986a-e1a228f3b1d5 Germany | |
| e8334f4e-17e2-4608-a5ad-30edef4926c2 France | |
| 65aa9ef3-75c8-4c33-a219-b20f15e058fd Netherlands | |
| 4a7c9f30-7364-40f6-918f-a6d5db76a1ec Spain | |
| 282c2b4f-e8f1-4063-b34e-982f7f8f6849 Netherlands | |
| 024f8714-7781-4b7e-a81b-9ff902aee4a9 Poland | |
| 264f799f-4c2b-45a4-87ba-d3ef6765de61 Norway | |
| 9ad54592-28c0-4987-8084-4b40d2dbf941 Finland | |
| d0c199d0-ba73-42a9-9246-1a9cf10042dd Netherlands | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XSECAFAZZAAAA00000 |
| E-Number (Norway) | 4380711 |
| EAN | 8056221011846 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 11 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 12.5 kg |
| Package Level 1 EAN | 8056221011846 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1337 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 800 A |
| Adjustment range undelayed short-circuit release (EF007131) | 800 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
