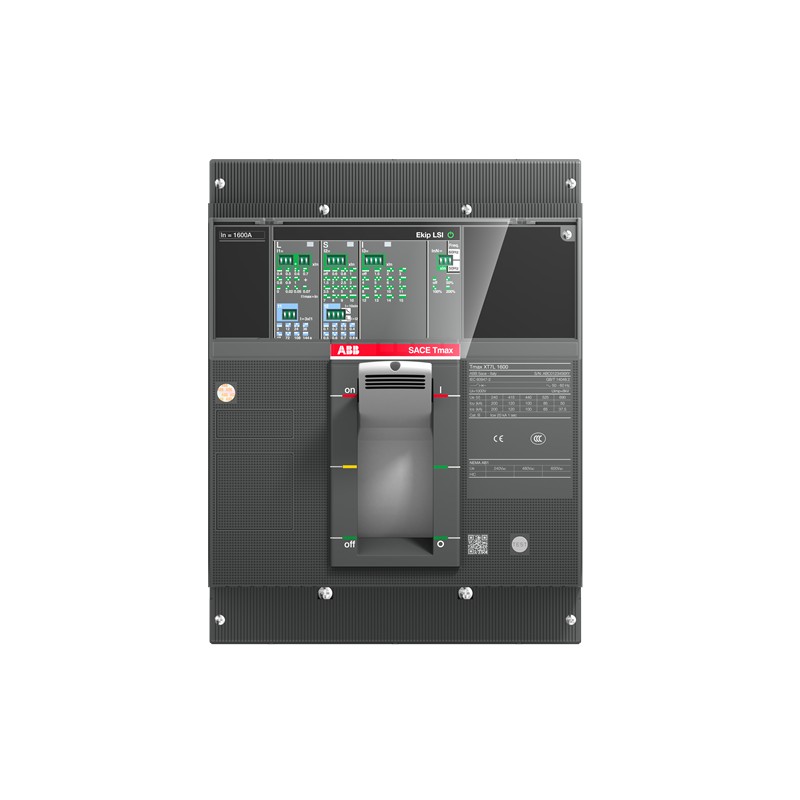

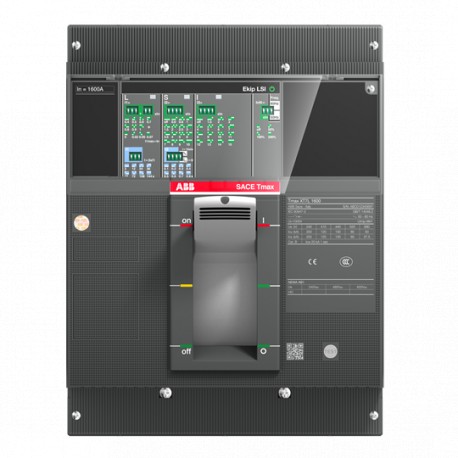

1SDA100957R1 ABB XT7L 1600 Ekip Dip LS/I In 1600A 3p F F
1SDA100957R1
ABB
XT7L 1600 Ekip Dip LS/I In=1600A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3061c83f-ac9a-46f0-b731-8fb508dd6290 Italy |
| Simplified SCIP | 1f2ffe2f-ee6b-4116-aed3-31dd2a7a59b0 Germany |
| ca9adc13-4a36-4810-b895-c29e127c6098 France | |
| 91bcb94f-4717-4cdf-939c-29de587a416e Netherlands | |
| 8276a1dd-1f09-495e-a10f-796eb5e84a67 Spain | |
| e89a6cd8-28b6-4989-9912-257a66918423 Netherlands | |
| a62bed42-3986-4b9b-b6fc-c15a303b46e8 Sweden | |
| a4406fd5-f47c-4e1c-b59d-e417d3186005 Poland | |
| 8ae8653b-454f-49f7-b695-7bc67fadbf35 France | |
| b7f8b515-7420-4537-ad95-9083f5803ff5 Sweden | |
| 229db643-1dcf-4f06-b448-c81c078c6723 Germany | |
| 10b78525-101c-4ed4-8161-010b27f65c77 Germany | |
| 10db60df-e123-4383-8df6-ddca6ab34fc4 Germany | |
| ef100c62-9eef-4769-a515-20b1d6ec58c2 Denmark | |
| c71fbe3f-14e3-4c88-bb31-c4ddd0673ab9 Germany | |
| 1c4c9811-c9d3-4be5-9a0b-cd9d3474ab4a Croatia | |
| 7136deb6-c99e-479b-bb66-c1f90f174d86 Czech Republic | |
| dc3ae68b-65a7-4ef3-8b88-ac39a30cb5f7 Poland | |
| bfde1fbd-00de-46fa-86f7-a619d51c215f Netherlands | |
| 48b34c09-d46a-4930-9a39-e62b8aab6734 Netherlands | |
| 5c8083d2-7876-4183-9d93-ba0076744926 Estonia | |
| 62646b15-7b16-436b-b10f-90efd1d733d7 Greece | |
| cd89405d-44e5-4b52-bfcd-606d815c6a14 Portugal | |
| c160c6e9-7708-4508-baf9-22de5a33d053 Bulgaria | |
| bb332c4f-f24f-48d3-a75d-3801bc41a49f Poland | |
| c0fccb11-8876-4716-8819-5aabc63a8af3 Norway | |
| ff95e0cb-f63c-4739-ba85-2e0fd1d9bf31 Finland | |
| 45c2e8c8-1a57-4bf0-ae03-5be4672d53be Netherlands | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7LE316FEFF000XXX |
| E-Number (Norway) | 4380682 |
| EAN | 8056221010115 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 13.614 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14.33 kg |
| Package Level 1 EAN | 8056221010115 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 94 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1600 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1600 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1600 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1600 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA100957R1 1SDA100957R1 EN_1SDA100957R1.pdf | 585 Kbytes |
|
