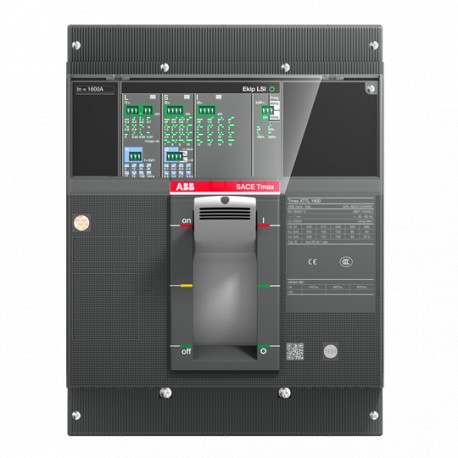

1SDA100956R1 ABB XT7L 1250 Ekip Dip LS/I In 1250A 3p F F
1SDA100956R1
ABB
XT7L 1250 Ekip Dip LS/I In=1250A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 31d8fcac-6882-4919-94a6-150fe8c7391c Italy |
| Simplified SCIP | 6e830ae8-9f22-475e-94bd-7eb526e5f7ca Denmark |
| fb6bf1c5-0bb7-42f7-9f2e-6cb45783a925 Sweden | |
| 5bf449a7-9629-4097-a52f-36d785d3323d Germany | |
| d1e1f201-9a1d-4571-80ac-711b5f92cc7a Belgium | |
| da4927ab-8ae4-44ea-ade2-01d1a759b115 Spain | |
| 8d8f2b1e-76a2-4435-9c94-08b12b9c0bca Hungary | |
| b09349cf-da5e-45a6-9ab6-5b059f46e773 Belgium | |
| 142c4017-2fe5-4341-b93d-0ebf5be10f69 Finland | |
| c4d66b09-e4ac-445e-a755-8f68a91e409d Poland | |
| 50c75c5f-4e40-4cd0-8e0c-a0d2437aedd7 Sweden | |
| 8d43e3ff-d26d-4285-a8a7-5c8afb77289d Hungary | |
| fc4fbf29-d0ab-4470-acee-3266591768da Greece | |
| 0cbfb93b-516f-4984-86fd-affa857cef9c France | |
| f41fca2a-a2b8-460c-ba4d-dfec0b16729b Germany | |
| 2da55d11-d576-4570-ab4e-a33df19f0b21 Portugal | |
| 522d2c4d-d6d2-4351-acbb-18a3d60f5417 Poland | |
| e9e7f5eb-efd5-403f-9689-4cc6eebf9233 Germany | |
| e92b6569-c8f8-4848-9602-fa61ebb7992b Bulgaria | |
| d98b284d-367a-4103-820c-2f7c0b6c86d2 Poland | |
| ff6eab1e-3f1e-458b-b819-3331774cdd43 Norway | |
| 1b705611-9893-4a6d-8e63-3f1f9e60e534 Estonia | |
| 6441d298-0d7a-4093-b06d-a712a21984c7 Czech Republic | |
| 5f5a18f7-b324-4427-84fa-e2d9082d3259 Germany | |
| ed12b902-c22e-4855-a5a4-8ea1742f0e34 France | |
| 0e4fe7d4-f018-4e4b-8071-d422ac68985f Germany | |
| 2d0bfd90-31cd-46a3-a17d-18c52b3f08e0 Croatia | |
| 478d6f72-f5df-45db-9f0f-a78f582c99f8 Netherlands | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7LE312EEFF000XXX |
| E-Number (Norway) | 4380681 |
| EAN | 8056221010108 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 13.585 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14.3 kg |
| Package Level 1 EAN | 8056221010108 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1250 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1250 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1250 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
