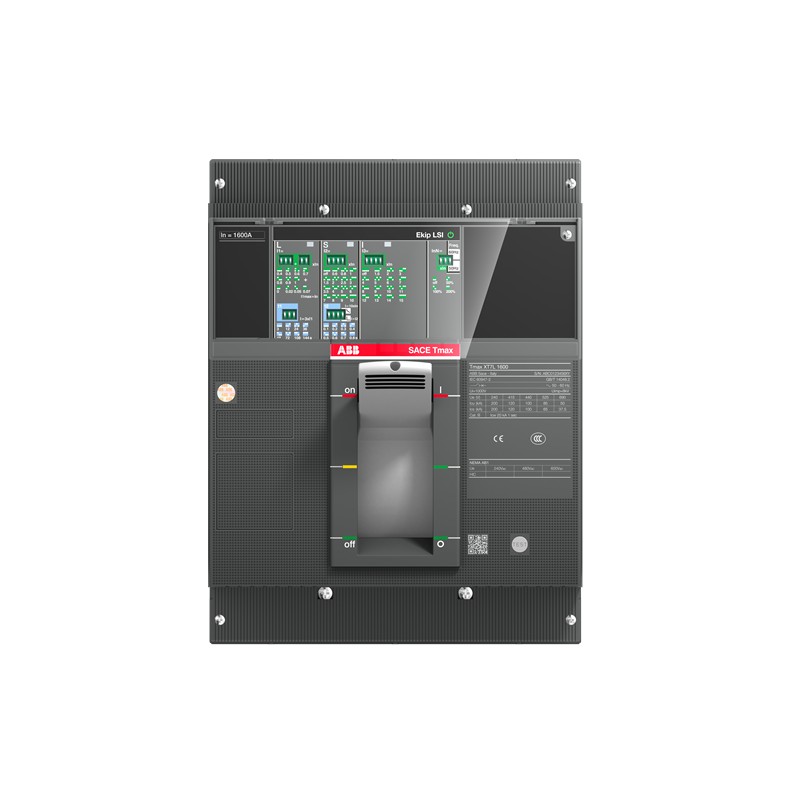

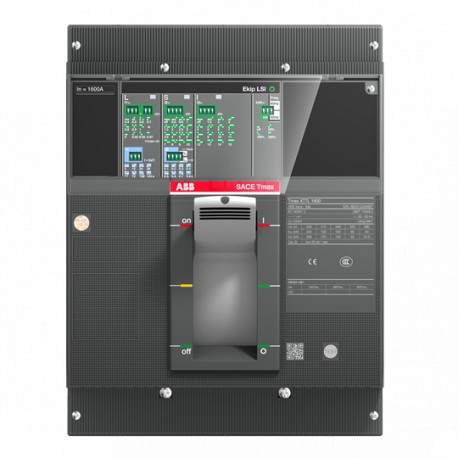

1SDA100955R1 ABB XT7L 1000 Ekip Dip LS/I In 1000A 3p F F
1SDA100955R1
ABB
XT7L 1000 Ekip Dip LS/I In=1000A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 1b7a7cad-0054-4f6a-b0a9-36ddae11e4bf Italy |
| Simplified SCIP | 5e5880c7-4a72-46ba-80ee-5b3c92c29f63 Belgium |
| 7c9f71c8-ca38-4151-9839-25cb50ea6de4 Spain | |
| 13ebc947-5b86-41f2-918d-8f811ed95a9e Hungary | |
| 43f321ed-8a21-4106-8749-357a0ced5a48 France | |
| 69332fca-5319-4659-9fc5-55b66eebdf68 Germany | |
| a7ea366b-5f83-4ef8-87d6-94efba02b63b Estonia | |
| 5c73e76a-5ee3-4ee2-9a10-6889cc28837a Czech Republic | |
| 8f823569-d359-41b4-a655-6463880fe3ce Germany | |
| 1d3d249b-c326-47b0-8827-e9b6b58a8cea Croatia | |
| fba35753-54f0-4864-81dc-92277c4fa614 Germany | |
| 32247886-4a0a-4b0b-9f87-534bb2375610 Poland | |
| cdc829c7-2776-4b07-9ff1-b1c77edeec6a Finland | |
| c50ec9e5-3b28-44a3-bb99-e14e3bb4e2f2 Belgium | |
| 80fa74df-3788-44bb-8b89-77382875ac00 France | |
| 8b25cb13-ebc5-4aab-8f2d-dd91ef1e73dd Greece | |
| d3d3622d-2719-4864-8f58-b98b01d363f1 Denmark | |
| 9cc67c02-edb7-46ea-bc95-e61c0375368e Portugal | |
| 0be5cf74-4dd5-4f19-8cf4-10b50cbfa560 Sweden | |
| 7d77c05f-6516-4e11-a3f7-d0feddeead90 Germany | |
| a4c1d0c5-06db-4951-897c-71127eb2950c Germany | |
| f0da4ece-9f30-4081-9780-a2787eab0aa5 Bulgaria | |
| 9dc5189b-a0de-427b-beda-945f2bf09466 Poland | |
| 6a93f2a4-18ad-441e-994a-8242d6b8ec6a Poland | |
| d1a176a6-636f-4942-bb67-8af92ccf6083 Sweden | |
| 95a09d28-349e-44a8-96fc-45333ab523d4 Norway | |
| 90865f7a-3025-47fb-a69a-1e7a526ff2e1 Netherlands | |
| 2bba1a0f-9ddb-4ac1-a55c-717ef6c3d244 Hungary | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7LE310DEFF000XXX |
| E-Number (Norway) | 4380680 |
| EAN | 8056221010092 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 9.776 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 10.29 kg |
| Package Level 1 EAN | 8056221010092 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1000 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1000 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1000 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
