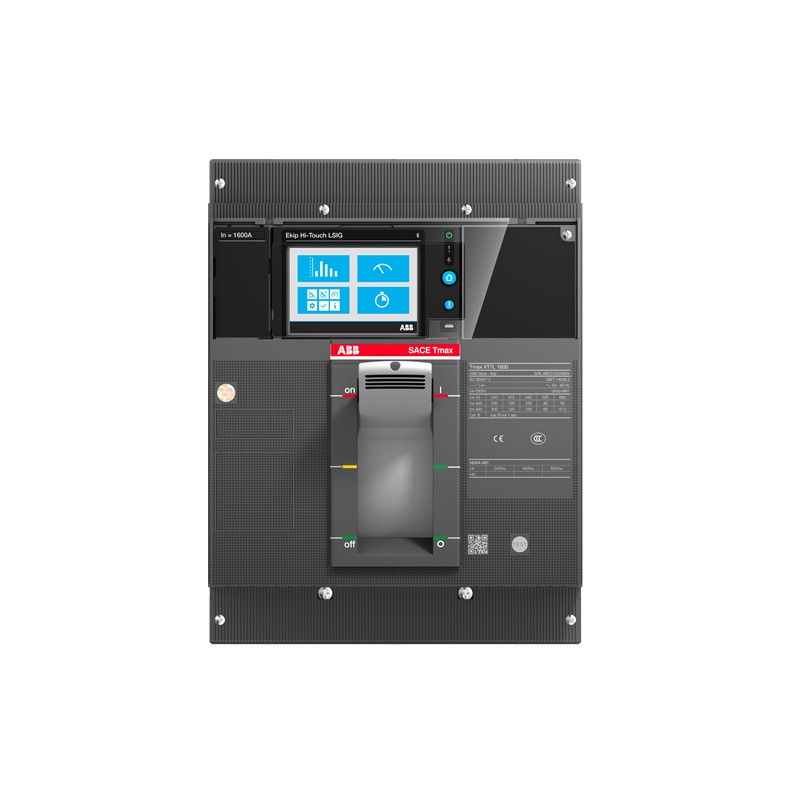

1SDA100910R1 ABB XT7H 800 Ekip Touch Meas.LSI In800 3p FF
1SDA100910R1
ABB
XT7H 800 Ekip Touch Meas.LSI In800 3p FF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 8b43c5dc-2ce2-45d5-a0cd-4e5e96eb3b76 Italy |
| Simplified SCIP | 38b78ce0-0e41-4a3f-b6d2-e52d96bd16fc Finland |
| 002bed72-beb6-4135-bc35-146fac3b853c Germany | |
| 84185d2f-c6d4-4ba7-b418-318554f8bdc4 France | |
| 0b8db246-dc7f-4be2-880d-017be89e936b Denmark | |
| 0ac7604a-4173-4a46-923c-04dc265a7291 Greece | |
| 21130b73-a9ec-48bf-8fb8-d1b9395d5458 Norway | |
| d000ee8c-6415-4817-bba6-964697ff5e2e Croatia | |
| 70257284-4b02-4152-9a35-dda24a68af06 Germany | |
| 212c98d4-b6f5-4d07-8fda-bc65e61ddf17 Hungary | |
| ee6db41a-6217-49c1-8471-76bca318371d Portugal | |
| 9b484409-9dc5-4527-8c80-c960a165dc73 Germany | |
| 0a0db367-2f06-4118-8b59-040b2a2b250f Sweden | |
| 184ebaec-37cb-4c75-a626-0bb27fc49d5d Netherlands | |
| d000ee8c-6415-4817-bba6-964697ff5e2e Croatia | |
| ee6db41a-6217-49c1-8471-76bca318371d Portugal | |
| 0ac7604a-4173-4a46-923c-04dc265a7291 Greece | |
| dfc14358-b650-4b76-bf64-bc5b3601a4c3 Poland | |
| d57767e3-b8c8-4f0d-bead-7fa5a19fb33b Germany | |
| 72fc77f1-8a7a-477f-bf16-1467c2011535 Poland | |
| 04f8c428-ad4b-40a7-a6ce-d2579d5817c0 Spain | |
| c8a32dec-9466-4d66-afbc-4607f97a1cea Hungary | |
| 078c1fb2-d602-4311-ac3d-c5d5d9d95d04 France | |
| 04f8c428-ad4b-40a7-a6ce-d2579d5817c0 Spain | |
| d0bcf26d-4b0b-4b5d-82b2-43e79449f806 Belgium | |
| 2dae4162-acf7-47f3-b217-76f0ea4c3dab Poland | |
| ad8be3ff-1b0a-42c6-903c-82e6c7199d1b Sweden | |
| 70257284-4b02-4152-9a35-dda24a68af06 Germany | |
| 9b484409-9dc5-4527-8c80-c960a165dc73 Germany | |
| 0a0db367-2f06-4118-8b59-040b2a2b250f Sweden | |
| 84185d2f-c6d4-4ba7-b418-318554f8bdc4 France | |
| dfc14358-b650-4b76-bf64-bc5b3601a4c3 Poland | |
| 6f413de2-f844-463f-9bed-2d1c82a08794 Estonia | |
| c8a32dec-9466-4d66-afbc-4607f97a1cea Hungary | |
| 81585e55-c524-405d-9f18-1f5f39c9a24b Czech Republic | |
| 32681d7f-ca37-4c30-9a99-dbecc06f63fa Bulgaria | |
| 184ebaec-37cb-4c75-a626-0bb27fc49d5d Netherlands | |
| 078c1fb2-d602-4311-ac3d-c5d5d9d95d04 France | |
| 6f413de2-f844-463f-9bed-2d1c82a08794 Estonia | |
| 212c98d4-b6f5-4d07-8fda-bc65e61ddf17 Hungary | |
| ad8be3ff-1b0a-42c6-903c-82e6c7199d1b Sweden | |
| d57767e3-b8c8-4f0d-bead-7fa5a19fb33b Germany | |
| 45563e03-7eac-428c-bfdd-552464bc62df Germany | |
| 72fc77f1-8a7a-477f-bf16-1467c2011535 Poland | |
| 81585e55-c524-405d-9f18-1f5f39c9a24b Czech Republic | |
| 2dae4162-acf7-47f3-b217-76f0ea4c3dab Poland | |
| 2ac38bc5-0f84-4517-806b-86bd600e6047 Belgium | |
| 38b78ce0-0e41-4a3f-b6d2-e52d96bd16fc Finland | |
| 2ac38bc5-0f84-4517-806b-86bd600e6047 Belgium | |
| 21130b73-a9ec-48bf-8fb8-d1b9395d5458 Norway | |
| 002bed72-beb6-4135-bc35-146fac3b853c Germany | |
| d0bcf26d-4b0b-4b5d-82b2-43e79449f806 Belgium | |
| 0b8db246-dc7f-4be2-880d-017be89e936b Denmark | |
| 32681d7f-ca37-4c30-9a99-dbecc06f63fa Bulgaria | |
| 45563e03-7eac-428c-bfdd-552464bc62df Germany | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7HE380CRFF000XXX |
| E-Number (Norway) | 4380667 |
| EAN | 8056221009645 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 9.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8056221009645 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Touch Measuring LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 480.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1200.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
