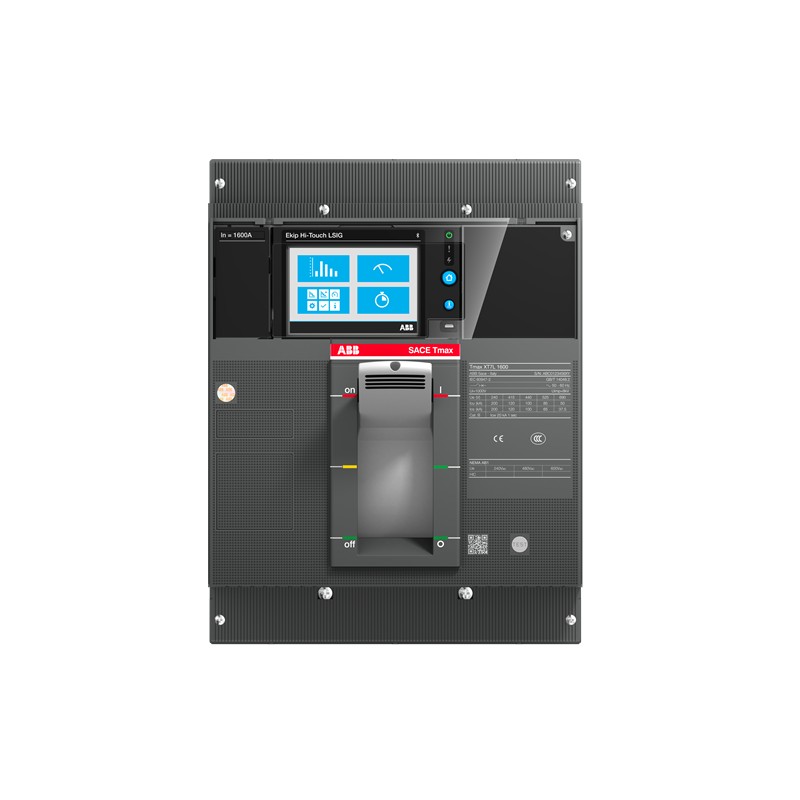

1SDA100903R1 ABB XT7H 1000 Ekip Touch LSI In 1000A 3p F F
1SDA100903R1
ABB
XT7H 1000 Ekip Touch LSI In=1000A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 2b90fa93-1035-4c09-8022-111ab0fc756d Italy |
| Simplified SCIP | 206ccc22-2b62-4a9c-a8be-79554d80f705 Germany |
| 21fc8f69-8e15-4e21-a85a-c17922750cd1 Finland | |
| 31fd7a07-0423-4313-8d27-5e4a3862fa4a France | |
| 4c8234e2-6922-4116-b7bf-3444905d8f7e Croatia | |
| 8a1cc519-4112-4f6f-9934-e66458fa7720 Greece | |
| 2608586e-129b-4655-b42a-f1cce27bf9ca Norway | |
| ee5ef214-609c-418b-bfdd-356ad8ecd2fe Germany | |
| 7be1410f-31bf-44a8-8512-60fa45214f66 Sweden | |
| e9ddbe72-0466-47fc-bd14-ba938c814a8f Netherlands | |
| 7e2063e8-4c35-4642-a83d-be3c2b6107a1 Hungary | |
| 27dffee6-15fa-445f-8395-37d341d22955 Portugal | |
| f540e394-104d-49b2-a82d-f656904bad2f Germany | |
| 4c8234e2-6922-4116-b7bf-3444905d8f7e Croatia | |
| 27dffee6-15fa-445f-8395-37d341d22955 Portugal | |
| 8a1cc519-4112-4f6f-9934-e66458fa7720 Greece | |
| e919d6b4-b0e5-4f3f-a3b3-5e81fa8adf9d Poland | |
| a7390e09-dd57-4052-9d99-61b2583b9769 Germany | |
| cc7203b0-03e8-4fe2-9a9e-7d3585609829 Poland | |
| 4f9b44eb-b883-4e04-bf01-55e72028d898 Spain | |
| 45d23a60-41da-41d7-9676-ff7d39b76944 Hungary | |
| f36ca825-dba6-4719-bee7-17d78a477027 France | |
| f540e394-104d-49b2-a82d-f656904bad2f Germany | |
| dd40ed60-e152-41c6-8295-29e1f54e9ba1 Sweden | |
| 36f87ed5-9a33-49f1-beea-58fc84bd17b6 Poland | |
| 4f9b44eb-b883-4e04-bf01-55e72028d898 Spain | |
| 1d2eca27-85d4-41a1-892c-78357d072ec2 Estonia | |
| e5e80a3f-4bbd-49f9-bb50-edb5f550143d Belgium | |
| 45d23a60-41da-41d7-9676-ff7d39b76944 Hungary | |
| 7be1410f-31bf-44a8-8512-60fa45214f66 Sweden | |
| 31fd7a07-0423-4313-8d27-5e4a3862fa4a France | |
| ee5ef214-609c-418b-bfdd-356ad8ecd2fe Germany | |
| f36ca825-dba6-4719-bee7-17d78a477027 France | |
| cc7203b0-03e8-4fe2-9a9e-7d3585609829 Poland | |
| 1d2eca27-85d4-41a1-892c-78357d072ec2 Estonia | |
| 2b39ca54-ffab-4ed3-9d4c-2d3a6c2d3ab8 Czech Republic | |
| e9ddbe72-0466-47fc-bd14-ba938c814a8f Netherlands | |
| e4ce5d10-8384-428d-90a5-3eb6929948b1 Bulgaria | |
| 7e2063e8-4c35-4642-a83d-be3c2b6107a1 Hungary | |
| 8784892c-345d-4731-9f4c-5ea8bd432d9e Germany | |
| 7e512a64-0e29-4f6a-9015-e813870d8eac Belgium | |
| 21fc8f69-8e15-4e21-a85a-c17922750cd1 Finland | |
| dd40ed60-e152-41c6-8295-29e1f54e9ba1 Sweden | |
| a7390e09-dd57-4052-9d99-61b2583b9769 Germany | |
| 89d047c9-10cd-4452-958b-3f272184c6f5 Denmark | |
| e919d6b4-b0e5-4f3f-a3b3-5e81fa8adf9d Poland | |
| 2b39ca54-ffab-4ed3-9d4c-2d3a6c2d3ab8 Czech Republic | |
| 36f87ed5-9a33-49f1-beea-58fc84bd17b6 Poland | |
| e5e80a3f-4bbd-49f9-bb50-edb5f550143d Belgium | |
| 7e512a64-0e29-4f6a-9015-e813870d8eac Belgium | |
| 2608586e-129b-4655-b42a-f1cce27bf9ca Norway | |
| 8784892c-345d-4731-9f4c-5ea8bd432d9e Germany | |
| 206ccc22-2b62-4a9c-a8be-79554d80f705 Germany | |
| 89d047c9-10cd-4452-958b-3f272184c6f5 Denmark | |
| e4ce5d10-8384-428d-90a5-3eb6929948b1 Bulgaria | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7HE310DPFF000XXX |
| E-Number (Norway) | 4380664 |
| EAN | 8056221009577 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 9.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8056221009577 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1000 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 10000 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1500.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
