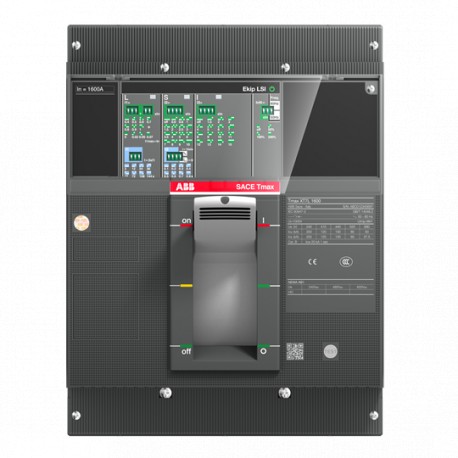

1SDA100864R1 ABB XT7S 1250 Ekip M Dip I In 1250A 3p F F
1SDA100864R1
ABB
XT7S 1250 Ekip M Dip I In=1250A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 16834ae9-2364-4fdc-bdd6-1e02a1b7a0e9 Italy |
| Simplified SCIP | 0f0f19a6-9de0-4303-916f-149cbbaffe4f Spain |
| f11d5fcb-175c-4872-8de5-72136d7d76e7 Belgium | |
| 5f47cc85-9a7c-4017-b37d-8a658f590d5b Germany | |
| b3641183-8f12-480f-b653-9864c750afa4 Croatia | |
| 2d94be83-71f7-4047-9cf3-659bf51ad327 Germany | |
| 687bf14b-66e5-4d22-9c7f-ca9d8fe673b9 Estonia | |
| d1d94fb3-f04c-42a3-8b4f-6122938ac680 France | |
| d8b6517f-15fc-4a8e-a31a-a348a3eeffec Czech Republic | |
| 1fd1c0fe-58c6-4f25-acfc-500b9d7c84ad Germany | |
| 5ec55a41-7b21-440b-97b3-7312d98b37e6 Portugal | |
| c209eefd-36c9-4f02-a25a-a8e4c1649744 Sweden | |
| 1d37657a-3c3c-49fa-8523-b2c198839a04 Hungary | |
| 4afeadf1-4011-4e4f-8adb-d46cef219ed4 France | |
| 8e678cf7-8d26-497b-b285-8cae340744f3 Denmark | |
| 54a090d7-44a6-4636-bd53-faf0a4c32be3 Germany | |
| 8147d891-5bd8-400a-b397-46a6c6a3e8fe Norway | |
| b1660275-fe22-404d-b383-0d3908d4ca29 Poland | |
| 2122a9c7-1860-4dbb-a5d8-c066c3b74267 Poland | |
| 27565d7b-dcfe-44b4-8958-dc21634417ce Germany | |
| ce9cdb4f-1208-4b6a-8354-1648f9a8eea6 Greece | |
| 1a830c44-790e-4c3e-b968-4feb8fe52c86 Belgium | |
| 12b09acf-24a8-4b64-8983-d6327e130300 Finland | |
| 6234237d-8b68-47c2-8b77-b08826f98068 Poland | |
| c2ac7232-ad17-446d-8bb1-d9edc0954389 Bulgaria | |
| 8d6a69bc-7f87-4c89-ad13-eac1c0e833e3 Hungary | |
| e7092e38-61fd-4aab-9a09-dd5db220573c Sweden | |
| 07879589-d88c-42c9-a037-18e2c027a759 Netherlands | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7SE312EKFF000XXX |
| E-Number (Norway) | 4380625 |
| EAN | 8056221009188 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 9.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8056221009188 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip M Dip I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 690 V |
| Adjustment range short-term delayed short-circuit release (EF007129) | 12500 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1250 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
