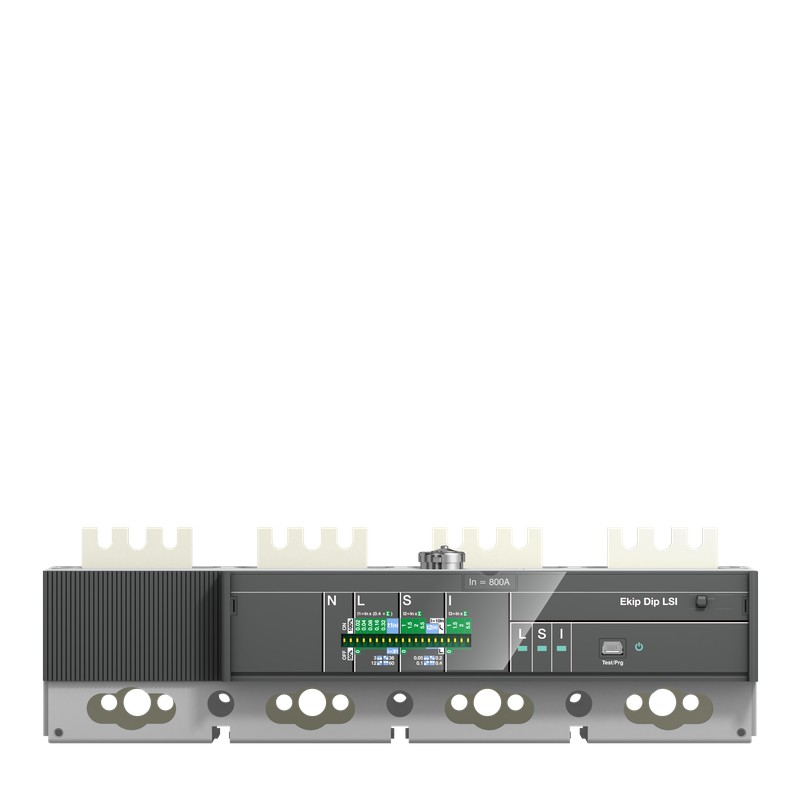

1SDA100824R1 ABB Ekip Dip LIG In 800 XT6 4p View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA100824R1 ABB Ekip Dip LIG In 800 XT6 4p

1SDA100824R1

ABB

Ekip Dip LIG In=800 XT6 4p

SOLID-STATE RELEASE FOUR-POLE IN AC EKIP DIP LIG R 800 XT6

More details


Low-voltage industrial components > Shunt release (for power circuit breaker)

Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $1,157.73
Unit price: $1,157.73
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
Ekip Dip LIG In=800 XT6 4p
Product ID:
1SDA100824R1
EAN:
8056221008785
Catalog Description:
Ekip Dip LIG In=800 XT6 4p
Long Description:
SOLID-STATE RELEASE FOUR-POLE IN AC EKIP DIP LIG R 800 XT6
\n

Ordering

EAN:
8056221008785
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
120 mm
Product Net Height:
160 mm
Product Net Depth / Length:
190 mm
Product Net Weight:
1.6 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
120 mm
Package Level 1 Height:
160 mm
Package Level 1 Depth / Length:
190 mm
Package Level 1 Gross Weight:
1.7 kg
Package Level 1 EAN:
8056221008785

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Configuration Type:
Loose or configurable
Current Type:
AC
Number of Poles:
4
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Rated Current (In):
800 A
Release:
Ekip Dip LIG
Release Type:
EL
Standards:
IEC 60947
Suitable For:
XT6

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210099D0205

Classifications

ETIM 7:
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

ETIM for 1SDA100824R1 Low-voltage industrial controls and switchgear (EC001023)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as change-over contact (EF008257) 0
Suitable for power circuit breaker (EF005863) Yes
Suitable for off-load switch (EF001543) No
Suitable for motor safety switch (EF005826) No
Suitable for overload relay (EF001545) Yes

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG ABB TMAX XT EN.pdf 70 Mbytes
