1SDA100789R1
ABB
1

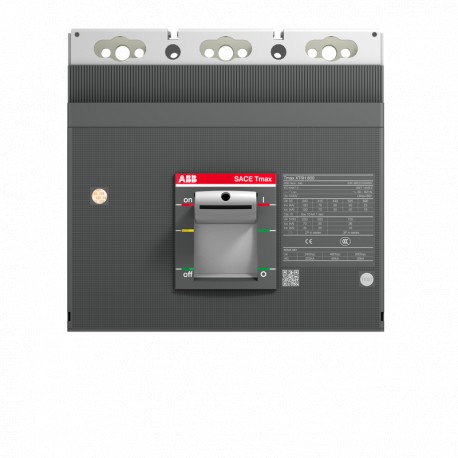

BREAKING PART TMAX XT6N 1000 FIXED THREE-POLE WITH FRONT TERMINALS
Molded case "Isomax-Tmax"
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
b'
XT6N 1000 BREAKING PART 3p F F
1SDA100789R1
8056221008433
XT6N 1000 BREAKING PART 3p F F
BREAKING PART TMAX XT6N 1000 FIXED THREE-POLE WITH FRONT TERMINALS
8056221008433
1 piece
85389099
210 mm
268 mm
103.5 mm
8.2 kg
1 piece
305 mm
285 mm
370 mm
9.7 kg
8056221008433
120 cycles per hour
5000 cycle
240 cycles per hour
20000 cycle
3
1 piece
SACE Tmax XT
Moulded Case Circuit Breaker
CBBU
8 kV
1000 V
690 V AC
750 V DC
(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 2 Poles in Series 10 kA
(750 V DC) 3 Poles in Series 8 kA
10 kA
(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 2 Poles in Series 20 kA
1000 A
N
IEC 60947
XT6
Fixed Circuit-Breakers
F
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Q
5. Small Equipment (No External Dimension More Than 50 cm)
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MOLDED CASE ISOMAX-TMAX EN.pdf | 25 Mbytes | |
1SDA100789R1 1SDA100789R1 EN_1SDA100789R1.pdf | 448 Kbytes |
