1SDA100784R1 ABB XT6D 800 3p F F
1SDA100784R1
ABB
XT6D 800 3p F F

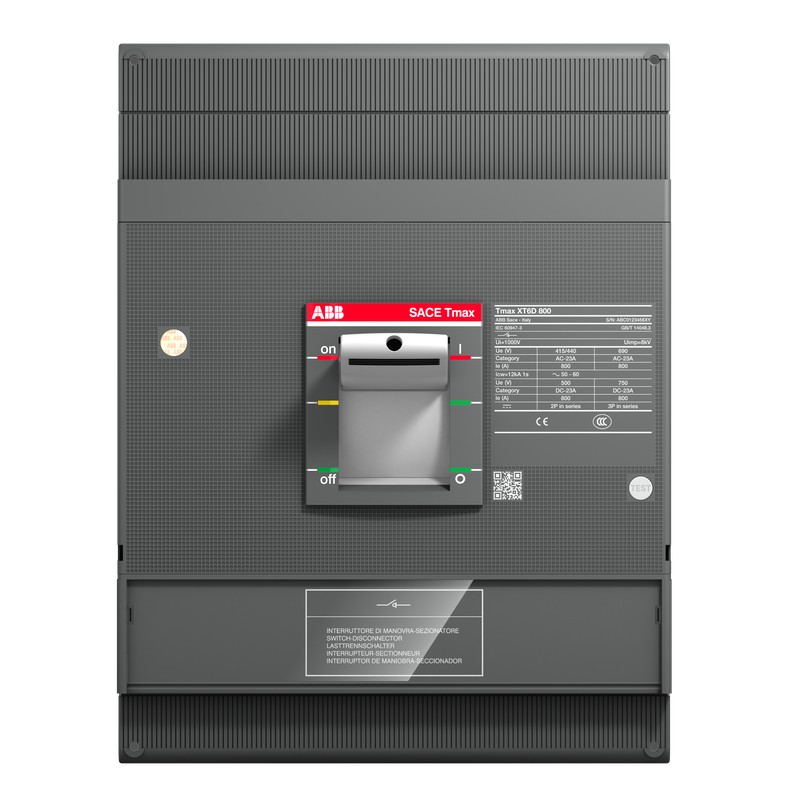

SWITCH-DISCONNECTOR TMAX XT6D 800 FIXED THREE-POLE WITH FRONT TERMINALS
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
XT6D 800 3p F F
1SDA100784R1
8056221008389
XT6D 800 3p F F
SWITCH-DISCONNECTOR TMAX XT6D 800 FIXED THREE-POLE WITH FRONT TERMINALS
Ordering
8056221008389
1 piece
85362090
Dimensions
210 mm
268 mm
103.5 mm
8.547 kg
Container Information
1 piece
305 mm
285 mm
370 mm
8.997 kg
8056221008389
Additional Information
120 cycles per hour
5000 cycle
240 cycles per hour
20000 cycle
3
1 piece
SACE Tmax XT
Moulded Case Circuit Breaker
SD
8 kV
1000 V
(400 V) 800 A
(690 V) 800 A
690 V AC
750 V DC
15 kA
800 A
IEC 60947
XT5
Fixed Circuit-Breakers
F
Certificates and Declarations (Document Number)
Classifications
EC000216 - Switch disconnector
Q
5. Small Equipment (No External Dimension More Than 50 cm)
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated short-time withstand current lcw (EF007050) | 10 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
