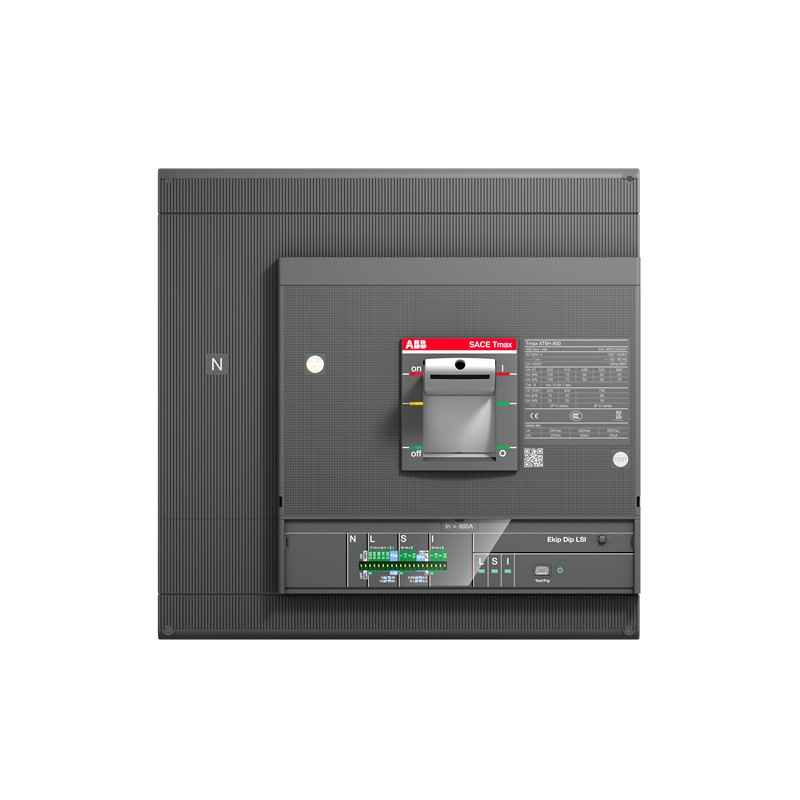

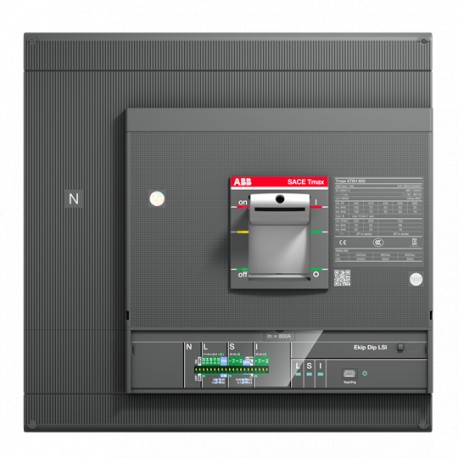

1SDA100755R1 ABB XT6S 1000 Ekip Dip LS/I In 1000 4p F F
1SDA100755R1
ABB
XT6S 1000 Ekip Dip LS/I In=1000 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2356 |
| Environmental Product Declaration - EPD | 9AKK108468A9752 |
| 9AKK108468A2295 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 60 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 38436293-e363-48b4-ae6f-1abaab78476d Italy |
| Simplified SCIP | 47bd3391-00a1-46d9-9231-05b183592e85 Belgium |
| 66da03b7-90a3-4b56-8f13-184d84097ba3 Netherlands | |
| 279e39c6-4b46-4146-aaf3-28c1a45b3227 Hungary | |
| 44ccd390-9b6f-4cc5-9e0a-ec602e99b090 Croatia | |
| cccd2b02-ca3f-4d6f-9fa3-591da824a3e4 Czech Republic | |
| 46f2e050-161e-4c84-9dad-95c0608de14d Poland | |
| 491623a0-a079-4ca1-b165-1ab9e7a39acd Poland | |
| 8583becd-2a98-41ed-9fb1-301ed83050d8 Finland | |
| 1ab3962d-ba51-4925-9651-9ec31ebef12f Belgium | |
| 28a75dbd-fe9c-4b23-8793-a2f08b2763bc Germany | |
| f0919e3e-b2cd-43df-8247-97c7c104ed18 Denmark | |
| 65c92e81-d87f-45fb-b1ce-03111c772e8a Germany | |
| 4daf589b-6a36-47f6-90a8-d0fc558dd5b9 Germany | |
| 20a9b346-61f1-4409-a9c5-5ba049f34633 Norway | |
| 06b49d45-1a97-409e-8d84-ac928e6b7dc9 Estonia | |
| 4642eaff-464f-4f09-9044-478067ec4a5c Greece | |
| 56fe891c-c4fd-440c-a89c-e818ff8e895a Portugal | |
| 1a705a7a-f571-4a2e-810b-99ed6cdea24e Bulgaria | |
| b7e2868f-de5f-405f-bcfc-be1aafc6d6be Sweden | |
| 71dcec2f-bf2b-4fb6-b1cc-ece113519597 Poland | |
| b7f2b6c0-8088-469c-8eb7-468d8a228958 France | |
| f65a586f-52fa-4542-8eb2-d85f2ad5d24f Sweden | |
| ed16a08b-b7af-487f-8f4b-4d1aa0a41c91 Germany | |
| 5850d7f0-9057-4523-978f-c5fd61140939 France | |
| cae5c814-ea2d-48f3-8d92-df956ce8b8db Hungary | |
| abf4dbc5-19ce-4fc9-b606-5c19ad090fdb Germany | |
| 9220f8eb-8955-4677-ba85-e319ff0062e4 Spain | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT6SE41K0EFF000XXX |
| E-Number (Norway) | 4380584 |
| EAN | 8056221008099 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 12 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221008099 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1214 |
| 1SDH002065A1245 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | 83.5 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 45 kA | |
| (500 V AC) 35 kA | |
| (525 V AC) 35 kA | |
| (690 V AC) 22 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 45 kA | |
| (500 V AC) 35 kA | |
| (525 V AC) 35 kA | |
| (690 V AC) 22 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 35 kA | |
| (750 V DC) 3 Poles in Series 24 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT6 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2825 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002012A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002012A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1000 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1000 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1000 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
