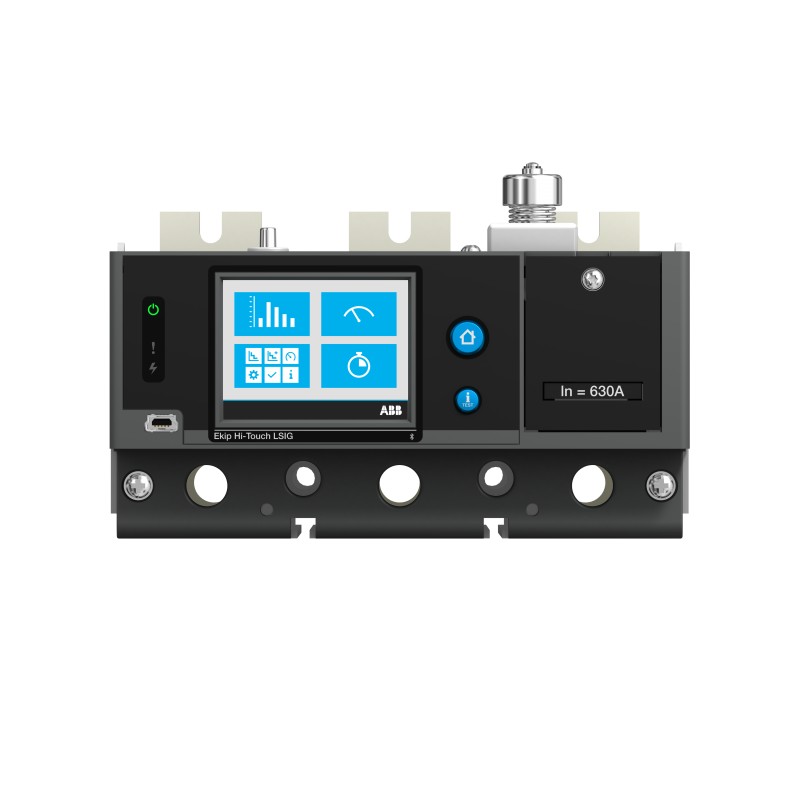

1SDA100600R1 ABB Ekip Touch Measuring LSI In 400 XT5 3p
1SDA100600R1
ABB
Ekip Touch Measuring LSI In=400 XT5 3p
Low-voltage industrial components > Shunt release (for power circuit breaker)
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641568 |
| E-Number (Norway) | 4380345 |
| EAN | 8056221006767 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.395 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Height | 180 mm |
| Package Level 1 Depth / Length | 225 mm |
| Package Level 1 Gross Weight | 1.559 kg |
| Package Level 1 EAN | 8056221006767 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT5 |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Current (In) | 400 A |
| Release | Ekip Touch Measuring LSI |
| Release Type | EL |
| Standards | IEC60947-2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH002039A1002 |
| External Classifications and Standards | |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 10 | EC001023 - Shunt release (for power circuit breaker) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370418 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Other |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Suitable for power circuit breaker (EF005863) | Yes |
| Suitable for off-load switch (EF001543) | No |
| Suitable for motor safety switch (EF005826) | No |
| Suitable for overload relay (EF001545) | Yes |
