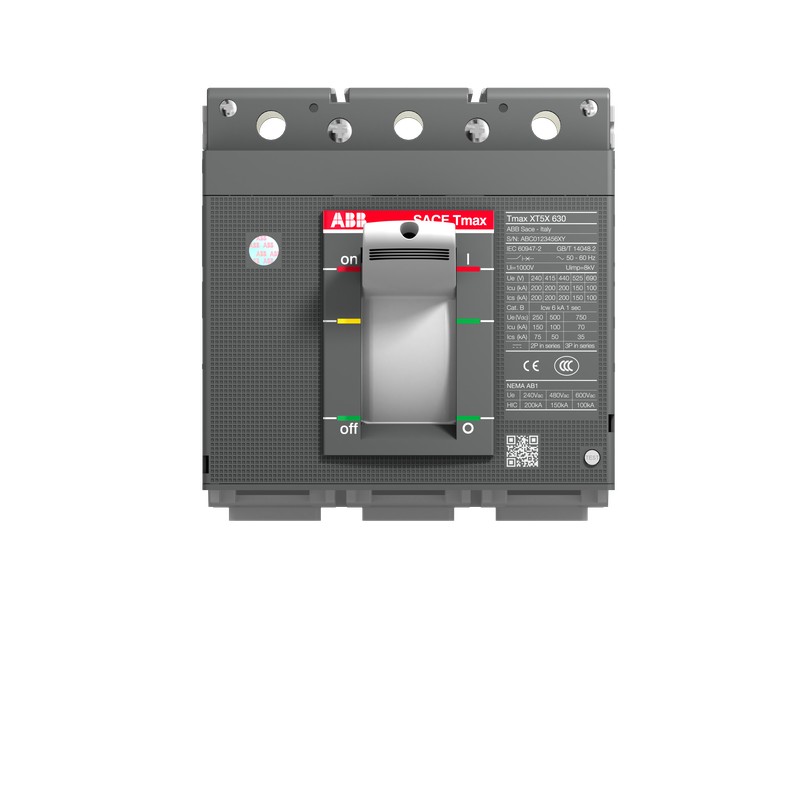

1SDA100570R1 ABB XT5X 630 INTERRUPTIVE PART 3p F F

Reference: 1SDA100570R1

Manufacturer: ABB

Description:

XT5X 630 INTERRUPTIVE PART 3p F F

XT5X 630 BREAKING PART 3p F F

Categories:

Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
ABB > Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 2.365,79 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions	9AKK108468A2353
Environmental Product Declaration - EPD	9AKK108468A9746
	9AKK108468A1893
Extended Product Lifetime	Product Modularity
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration	9AKK108466A1425
RoHS Declaration	9AKK108466A1424
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
Toxic Substances Control Act - TSCA	9AKK108467A8326
SCIP	7edaea22-4170-4f14-b56d-cfbbd4c8e520 Italy
Simplified SCIP	48d04daa-9463-4f19-9937-976842ebb9d1 Germany
	d6079ded-4f65-4a65-831b-bdcd0c91c3a0 Poland
	17ee95c6-c215-42bc-bd21-34376f215d36 Norway
	26b4d02f-3f8f-497d-b62b-be74d0ff2e74 Finland
	19e4a96e-a700-471a-9a1c-a2fa1f661f4d Netherlands
	3b8e993e-0c25-4d76-8536-c7cf20c87555 Germany
	97b22deb-1d3b-4c32-b564-82389568148a Denmark
	79d11c92-7aab-496c-926f-e9d39d39619c Germany
	cf4e36b5-493d-4042-831c-86eefe08c939 Croatia
	34eb7025-5afd-4375-8d8a-d4a6821d922f Czech Republic
	1cc3f3ff-5acb-44be-bcf6-7c309f9e9c5d Poland
	b7bfafef-17cd-492f-b499-7d3a1f2d3295 Netherlands
	16574e24-a799-457a-85b0-44d70eaa2ade Netherlands
	6d7fc8ef-4793-429e-98f6-d2b572f9e2ed Estonia
	d8662c98-09e6-4dad-a776-23ea0f56f5ab Portugal
	580060c6-6c0e-43a3-95a6-ce1c5f276418 Bulgaria
	b03568f7-22e9-4aa1-a1fe-00d9bdd00b89 Sweden
	5d5f49d1-c657-41f7-a7b8-4c8b190b2244 Poland
	a4f21218-eb71-4320-9a62-246ffa53e96b France
	a84c8cba-45c1-475a-b59e-2a8fa0061940 Sweden
	d66dbbf6-ae93-4e0a-b8de-ebfd0865cb17 Greece
	5191c2b8-9b66-4ec5-856f-f7c43b434989 Germany
	3d39e577-9298-4a0c-aada-e1745b1b8ae2 Germany
	8b66c821-f1ce-41aa-a265-d7a843a725c1 France
	fe16f324-9a1a-40b0-bcc4-fb5b94e4cc2d Netherlands
	34adfcff-fdab-480d-bdd8-ce77f00b3b3c Spain
	0d883ea8-2d9e-4333-b21e-3bf03539e925 Netherlands
Environmental
Environmental Information	9AKK108467A6707
Ordering
E-Number (Finland)	3641468
E-Number (Norway)	4380333
EAN	8056221006460
Minimum Order Quantity	1 piece
Customs Tariff Number	85389099
Dimensions
Product Net Width	140 mm
Product Net Height	205 mm
Product Net Depth / Length	103.5 mm
Product Net Weight	3.425 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	305 mm
Package Level 1 Height	285 mm
Package Level 1 Depth / Length	370 mm
Package Level 1 Gross Weight	9.7 kg
Package Level 1 EAN	8056221006460
Additional Information
Product Main Type	SACE Tmax XT
Product Name	Moulded Case Circuit Breaker
Product Type	Breaking Part
Version	F
Technical
Electrical Durability	5000 cycle
	60 cycles per hour
Mechanical Durability	20000 cycle
	120 cycles per hour
Number of Poles	3P
Order Multiple	1 piece
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Voltage	690 V AC
	750 V DC
Rated Service Short-Circuit Breaking Capacity (I_cs)	(220 V AC) 200 kA
	(230 V AC) 200 kA
	(240 V AC) 200 kA
	(380 V AC) 200 kA
	(415 V AC) 200 kA
	(440 V AC) 180 kA
	(500 V AC) 150 kA
	(525 V AC) 120 kA
	(690 V AC) 100 kA
	(250 V DC) 2 Poles in Series 100 kA
	(500 V DC) 2 Poles in Series 100 kA
	(750 V DC) 3 Poles in Series 100 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	6 kA
Rated Ultimate Short-Circuit Breaking Capacity (I_cu)	(220 V AC) 200 kA
	(230 V AC) 200 kA
	(240 V AC) 200 kA
	(380 V AC) 200 kA
	(415 V AC) 200 kA
	(440 V AC) 180 kA
	(500 V AC) 150 kA
	(525 V AC) 120 kA
	(690 V AC) 100 kA
	(250 V DC) 2 Poles in Series 100 kA
	(500 V DC) 2 Poles in Series 100 kA
	(750 V DC) 3 Poles in Series 100 kA
Rated Uninterrupted Current (I_u)	630 A
Short-Circuit Performance Level	X
Standards	IEC60947-2
Sub-type	XT5
Terminal Connection Type	Front
Certificates and Declarations
Data Sheet, Technical Information	1SDC210100D0206
	1SDC210099D0206
Declaration of Conformity - CE	9AKK107680A2824
Instructions and Manuals	1SDH002011A1001
External Classifications and Standards
ETIM 9	EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10	EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code	Q
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
eClass	V11.1 : 27370409

ETIM for 1SDA100570R1 Low-voltage industrial controls and switchgear (EC000228)

Feature nameRated voltage (EF003977)

Feature value690 V

Feature nameIntegrated earth fault protection (EF007296)

Feature valueNo

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameDevice construction (EF008240)

Feature valueBuilt-in device fixed built-in technique

Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)

Feature valueNo

Feature nameDIN rail (top hat rail) mounting optional (EF008904)

Feature valueNo

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameWith switched-off indicator (EF007006)

Feature valueNo

Feature nameWith integrated under voltage release (EF001390)

Feature valueNo

Feature nameNumber of poles (EF001391)

Feature value3

Feature namePosition of connection for main current circuit (EF006671)

Feature valueFront

Feature nameType of control element (EF006976)

Feature valueToggle

Feature nameComplete device with protection unit (EF008906)

Feature valueYes

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameMotor drive optional (EF007386)

Feature valueYes

Feature nameDegree of protection (IP) (EF005474)

Feature valueIP20

DATASHEET - PDF
