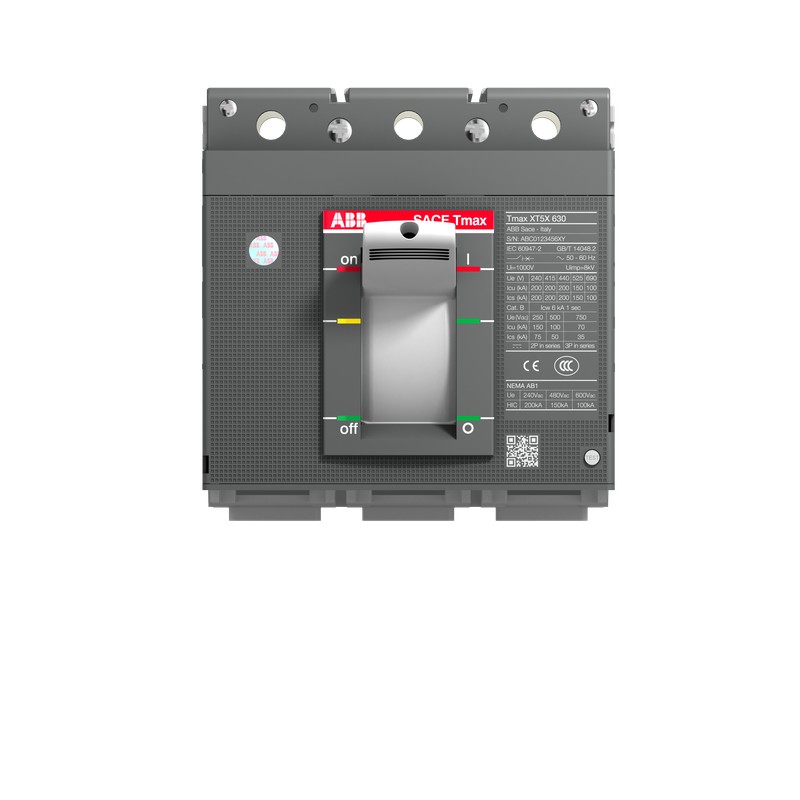

1SDA100567R1 ABB XT5V 630 INTERRUPTIVE PART 3p F F
1SDA100567R1
ABB
XT5V 630 INTERRUPTIVE PART 3p F F
XT5V 630 BREAKING PART 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b21bb25a-7862-4c44-8e93-5ce4f2434a13 Italy |
| Simplified SCIP | f7b40119-5546-4fe7-82e3-061f02fc53ef Germany |
| 23b65fde-6902-428a-96ea-165658821036 Greece | |
| 5af95e5f-0a59-45f4-9d63-dc533436ddb2 Germany | |
| c0052ef2-8a16-44d8-9d76-cd3f0bf9cc9b Germany | |
| 8ec26245-dee5-40d5-98e8-4f3546fcd5b1 France | |
| 7bf4ba91-91e6-4bc6-a443-cc78e1ffe1bd Netherlands | |
| 6c040ee9-4994-4c21-9121-5800ec001ae9 Spain | |
| 05cb7fc4-a504-482b-9b5e-dd8ed668f63d Netherlands | |
| 559f49e4-a5ee-4d80-81e3-3175ce745d74 Poland | |
| 4485a20c-9fef-48e4-a97f-cfce66e379b4 Norway | |
| 3d5f5763-e986-4c5f-b127-1eda024fa0d1 Finland | |
| b330784a-34e8-4f33-8198-dcec458be8e9 Netherlands | |
| 08cb7376-8365-45a9-a9ee-308f01bd9963 Germany | |
| 094860d0-47dd-4474-b17a-9467709a0aa6 Denmark | |
| ccb9a192-9d58-4afc-a586-847f305c5664 Germany | |
| fe128925-fa9a-42a0-913f-2d2fa518fd55 Croatia | |
| bac471f6-3aa4-4050-994d-3c16c6bc9c12 Czech Republic | |
| 1c5ba12c-3bf2-434e-8ba7-dfebe888beb2 Poland | |
| 80b8f09e-37af-4ffe-afe7-e9f952db6245 Netherlands | |
| 53f6121c-2dd8-4354-9975-ba4bb7ea8aa7 Netherlands | |
| 8e016a45-8921-41da-9be6-82e6273911d4 Estonia | |
| 2ea31bf5-1bca-4cbc-886a-3c8b3fe9bacb Portugal | |
| 7deb66e2-7353-44d5-83a7-6acdea3cabf1 Bulgaria | |
| ea3cdc10-82f9-4334-a0c6-2724ba7af73f Sweden | |
| d8af23ca-1b75-4247-9d5a-1bbde787c296 Poland | |
| e5fc4d26-caa2-43f7-9e05-c80bba530505 France | |
| 68ef41a2-5436-4c63-8bf3-909f626c0b40 Sweden | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641443 |
| E-Number (Norway) | 4380332 |
| EAN | 8056221006439 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.425 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.8 kg |
| Package Level 1 EAN | 8056221006439 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 200 kA | |
| (415 V AC) 200 kA | |
| (440 V AC) 180 kA | |
| (500 V AC) 150 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 80 kA | |
| (250 V DC) 2 Poles in Series 85 kA | |
| (500 V DC) 2 Poles in Series 85 kA | |
| (750 V DC) 3 Poles in Series 85 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 200 kA | |
| (415 V AC) 200 kA | |
| (440 V AC) 180 kA | |
| (500 V AC) 150 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 80 kA | |
| (250 V DC) 2 Poles in Series 85 kA | |
| (500 V DC) 2 Poles in Series 85 kA | |
| (750 V DC) 3 Poles in Series 85 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Short-Circuit Performance Level | V |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF003977) | 690 V |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
